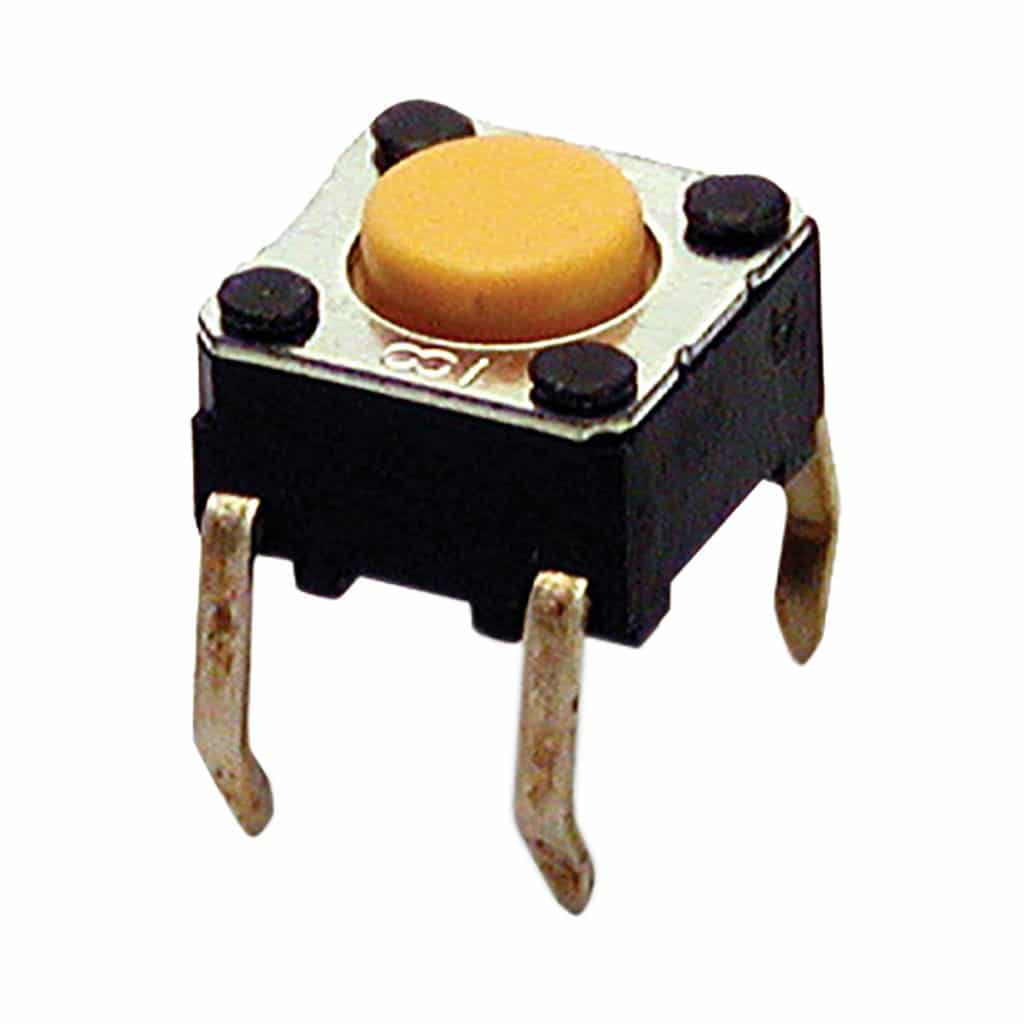

Tact Switch 6×6 – B3F Series
Product specs
| Mounting | Horizontal, Right Angle |
|---|---|
| Height | 3.15mm, 6.15mm, 7.3mm, 9.5mm |
| Colour | Ivory, Black, Orange |
| Operating Force | 100gf, 260gf |
Product Description
The B3F series is a 6×6 tactile switch from Omron. Long life with silver Contacts, horizontal and vertical options. Heights from 3.15mm to 9.5mm. Ground terminal option also available.
- Contact Resistance 100mΩ Max.
- Contact Rating 1 to 50 mA, 3 to 24 VDC
- Insulation Resistance 100 MΩ min. @250 VDC
- Operating life 50,000 ⁓ 1,000,000 operations.
- Dielectric Withstanding Voltage 500 VAC, 50/60 Hz for 1 min
- Temperature range -25°C to +70°C at 60%RH max.
