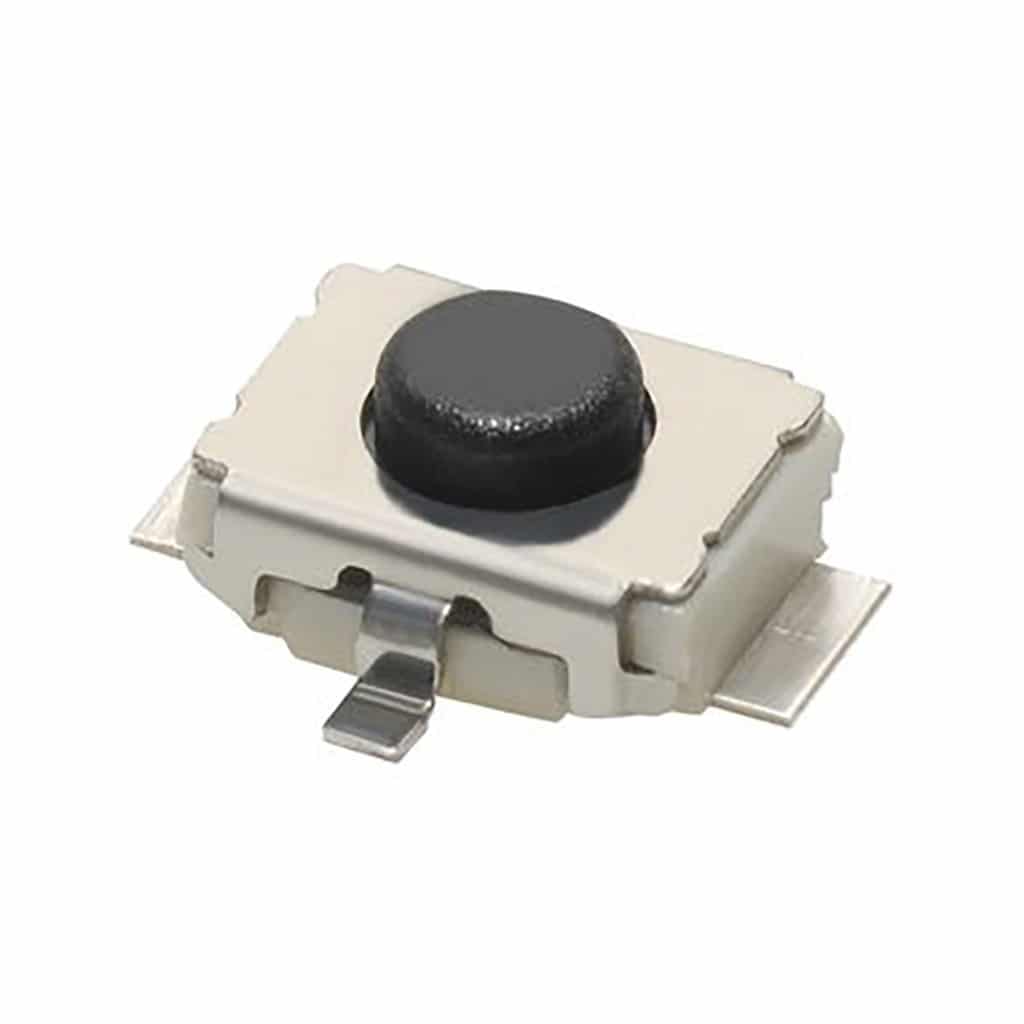

Ultra Compact SMD Tact Switch – B3U Series

SKU: B3U Categories: , , Manufacturer:

Product specs

Mounting

Horizontal, Right Angle

Colour

Black

Operating Force

150gf

Package

Embossed Tape, Embossed Tape with Ground Terminal

Product Description

The B3U series is an ultra compact SMD tactile switch from Omron. Case size 1.2 x 3 x 2.5 with top and side actuators. Silver plated contacts offer high reliability. Ground terminal option. Ideal for very high density application. Contact our sales for further information.

  • Contact Resistance 100mΩ Max.
  • Contact Rating  1 to 50 mA, 3 to 24 VDC
  • Insulation Resistance 100 MΩ min. @250 VDC
  • Operating life  200,000 Top and 100,000 side operations.
  • Dielectric Withstanding Voltage 500 VAC, 50/60 Hz for 1 min
  • Temperature range  -25°C to +70°C at 60%RH max.
