Vertical Socket – Open -5.08mm Pitch , 2EDGV-5.08-xxP-1400AH

SKU: 2EDGV-5.08-xxP-1400AH Categories: , Manufacturer:

Product specs

Pitch

5.08mm

Height

12.1mm

Poles

2, 3, 4, 5, 6, 7, 8, 9, 10, 12

Colour

Green

Product Description

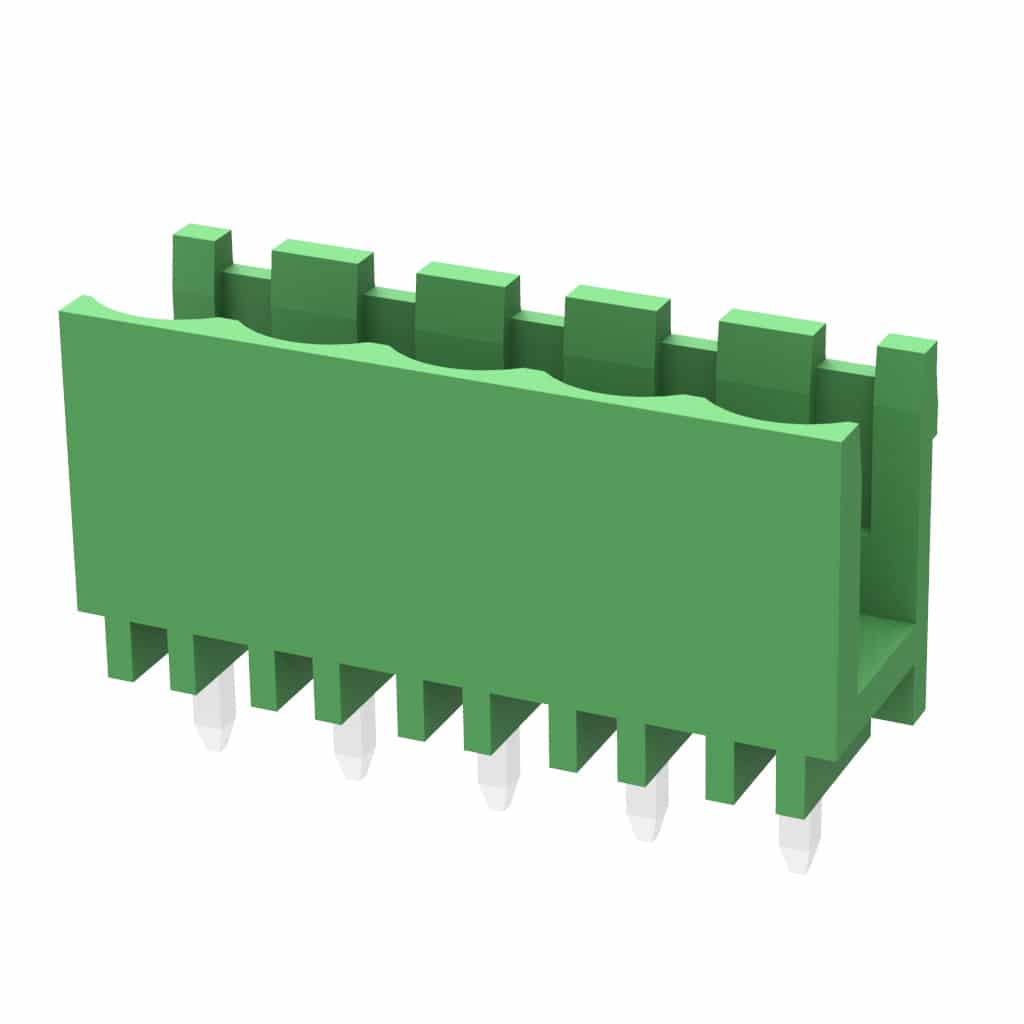

2EDGV-5.08 is a 5.08mm vertical socket from Degson with open ends. Product is available upto 24 poles and different colours upon request. Product is compatible with a number of plugs but the most common being the 2EDGK-5.08 series , the socket is also available in a horizontal version 2EDGR-5.08 and with closed ends 2EDGRC-5.08 & 2EDGVC-5.08.

2EDGV-5.08 series is UL (E228872) , VDE (40022408) & CE



  • Pitch 5.08mm
  • 12.1mm High – 8.2mm Depth
  • Ambient Temperature – -40 + 105C
  • Housing – PA66
  • UL file number E228872  – 15A @ 300v
  • VDE file number 40022408 – 20A @ 320v
