Horizontal Socket – Open -5.08mm Pitch , 2EDGR-5.08-xxP-1400AH
Product specs
| Pitch | 5.08mm |
|---|---|
| Height | 8.2mm |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 12 |
| Colour | Green |
Product Description

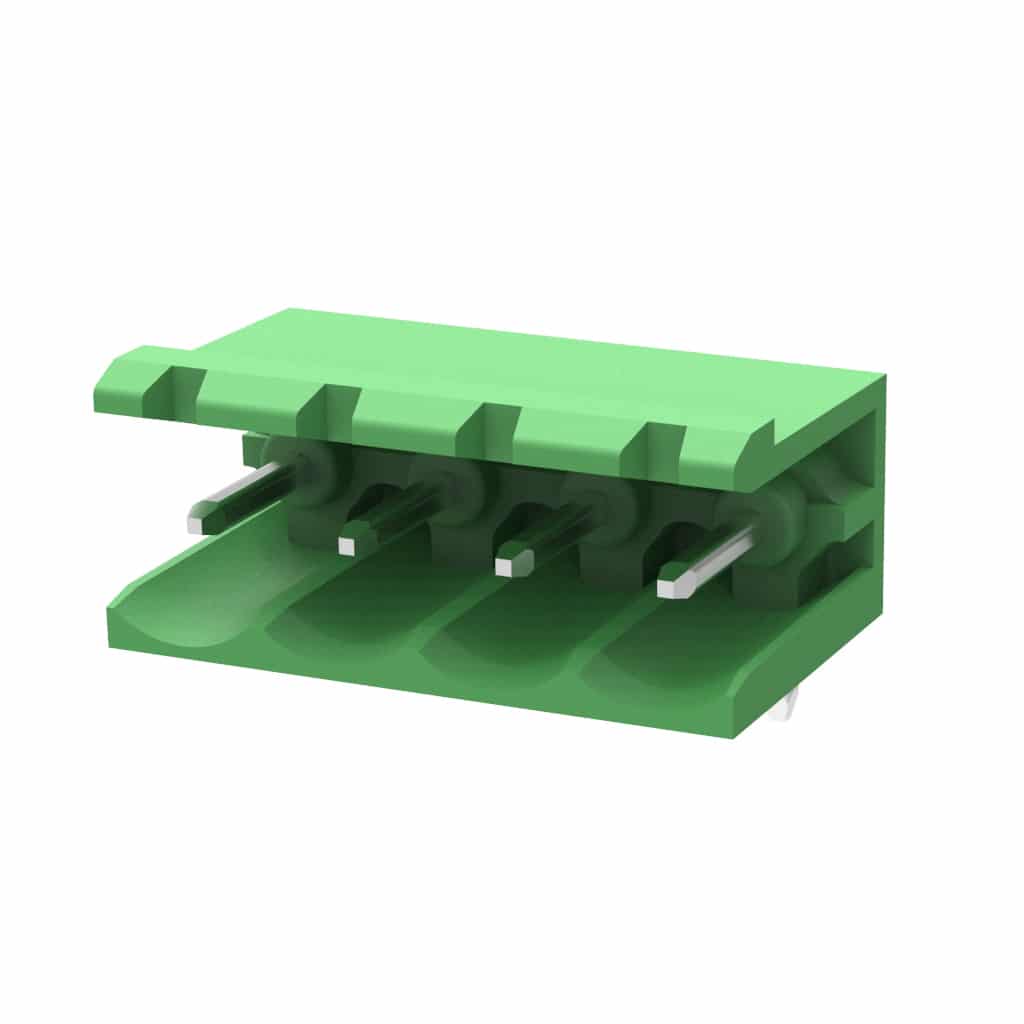

2EDGR-5.08 is a 5.08mm horizontal socket from Degson with open ends. Product is available in upto 24 poles and different colours upon request. Product is compatible with a number of plugs but the most common being the 2EDGK-5.08 series , the socket is also available in a vertical version 2EDGV-5.08 and with closed ends 2EDGRC-5.08 & 2EDGVC-5.08.
2EDGR-5.08 series is UL (E228872) , VDE (40022408) & CE
- Pitch 5.08mm
- 8.2mm High – 12.1mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- UL file number E228872 – 15A @ 300v
- VDE file number 40022408 – 20A @ 320v
