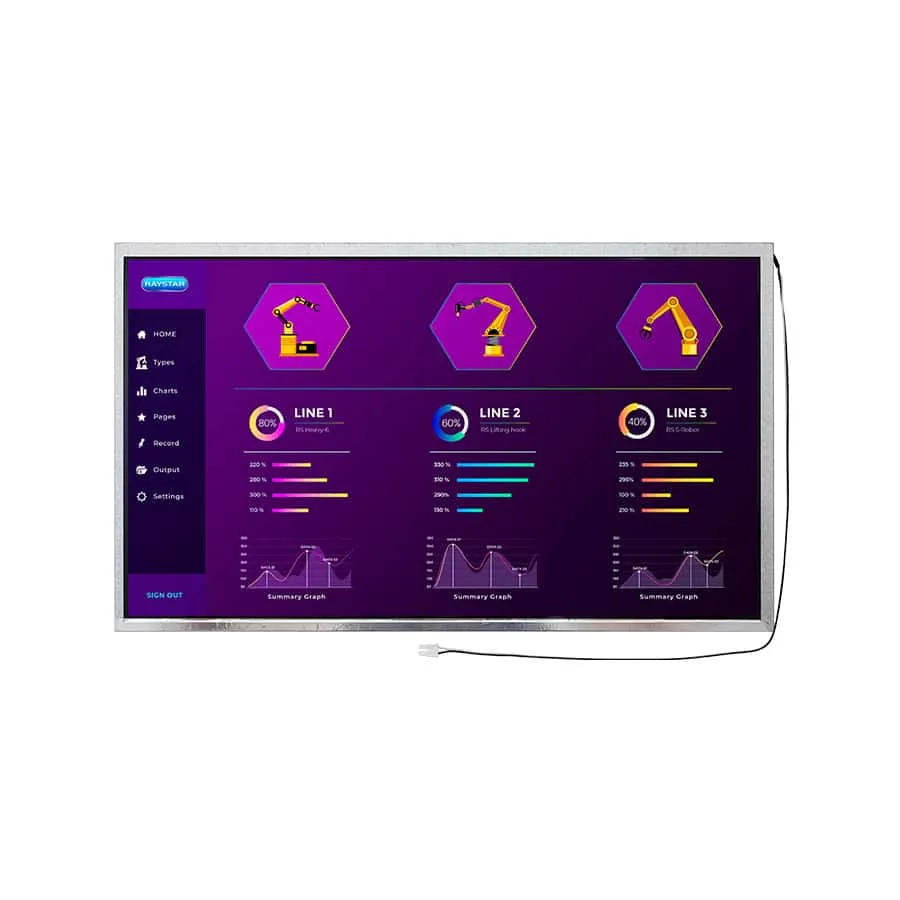

15.6″ 1920×1080 IPS LCD Display
Product specs
| Size | 15.6” |
|---|---|
| Resolution: | 1920 x RGB x 1080 |
| Module Dimension: | 360.0 (W) x 212.3 (H) x 9.0 (D) mm |
| Active Area: | 344.16 x 163.59 mm |
| Viewing Angles: | 80/80/80/80 |
| TFT Driver IC: | TC2055G |
| Interface: | eDP |
| Surface: | Anti-Glare |
Product Description
Easby Electronics are pleased to announce they are now able to supply the new 15.6” 1920×1080 IPS display from @Raystar Optronics. The RFA515600B series uses the TC2055G IC and supports eDP interface, available with a standard backlight brightness of 500cd/m2, a higher brightness version is also available, which boasts a brightness of 1000cd/m2. The screen also comes with an anti-glare coating on the front surface to prevent reflection and preserve image quality.
This TFT is ideal for industrial control, medical, POS and mixing desk applications.
RFA515600B-AYW-ENN is a 1920×1080 high-resolution edp lcd screen with IPS panel.The IPS technique allows viewers to view the screen from wider angles(80/80/80/80 degrees).The dimension size of this module is 360×212.3 mm, the active area size is 344.16×193.59 mm (15.6″ diagonal).This display also boasts its brightness 500 nits at typical value. With the help of a anti-glare display surface, the screen doesn’t reflect light and preserves better image quality.
The power supply voltage of RFA515600B-AYW-ENN ranges from 3.0V to 3.6V; typical value is 3.3V. The module works within temperature range from -20℃ to +70℃; storage temperature is -30℃ to +70℃.This TFT module is suitable for industrial control equipment, test equipment, and POS systems, etc.
