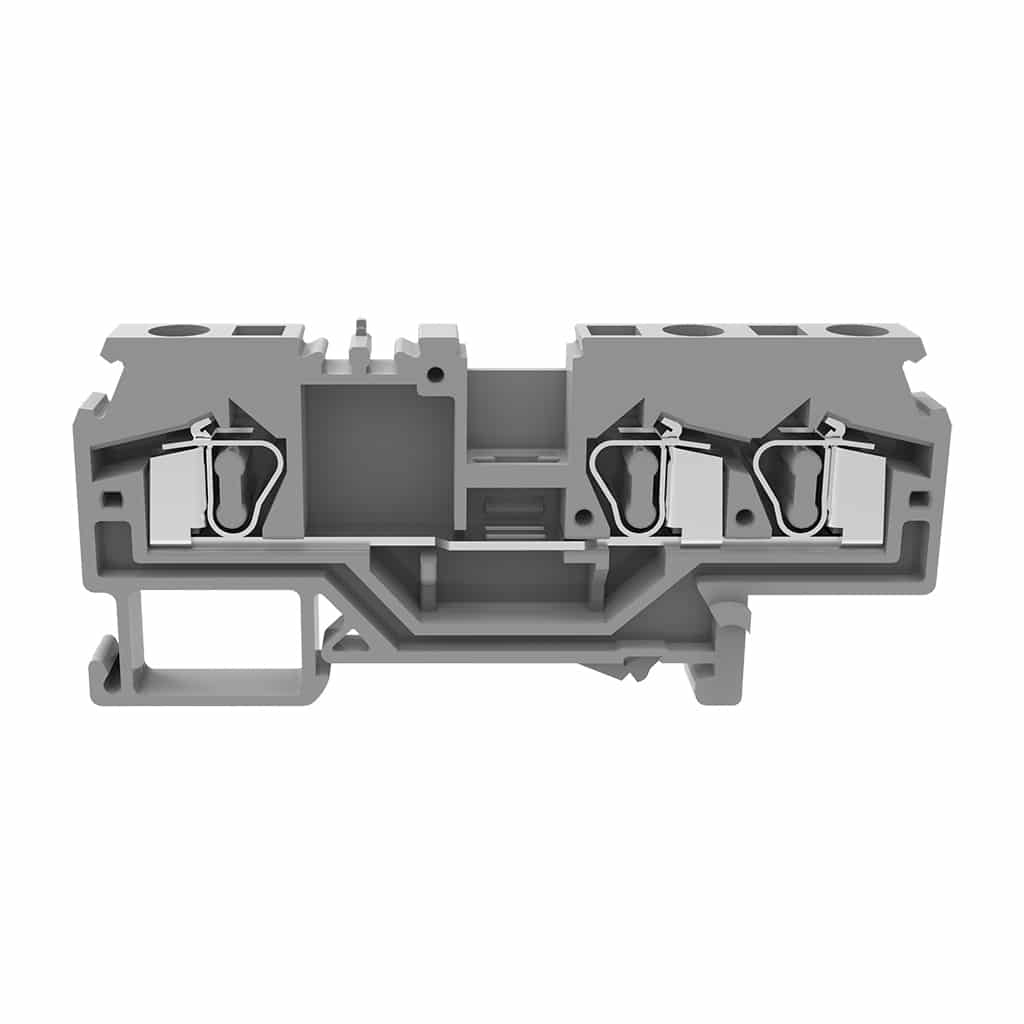

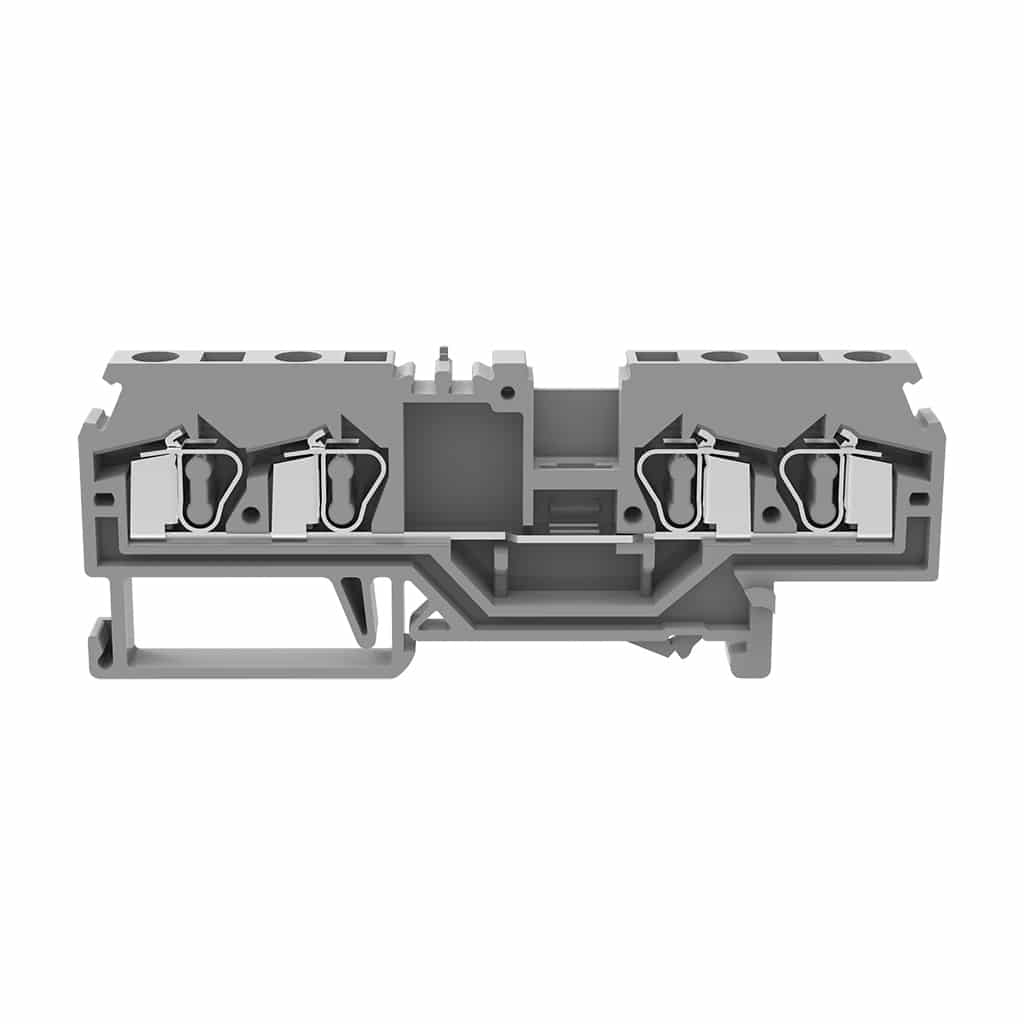

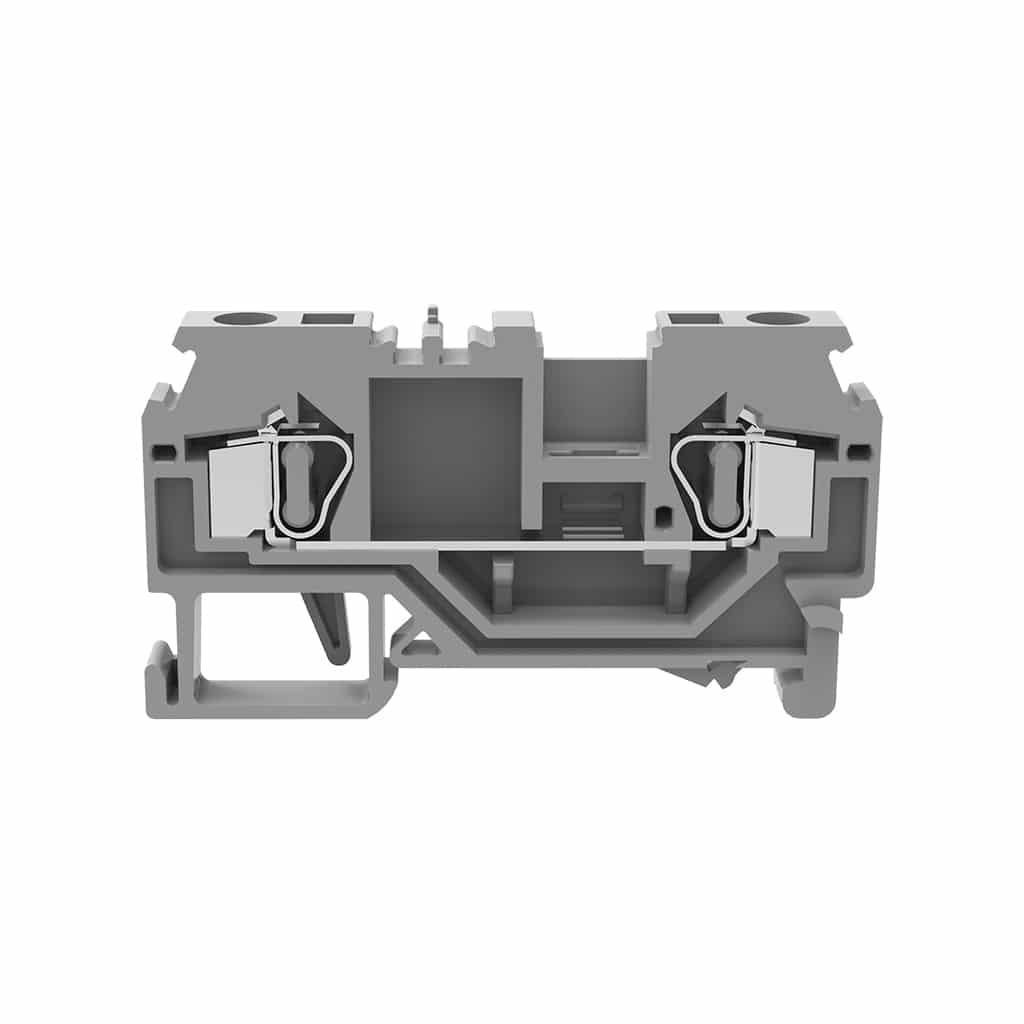

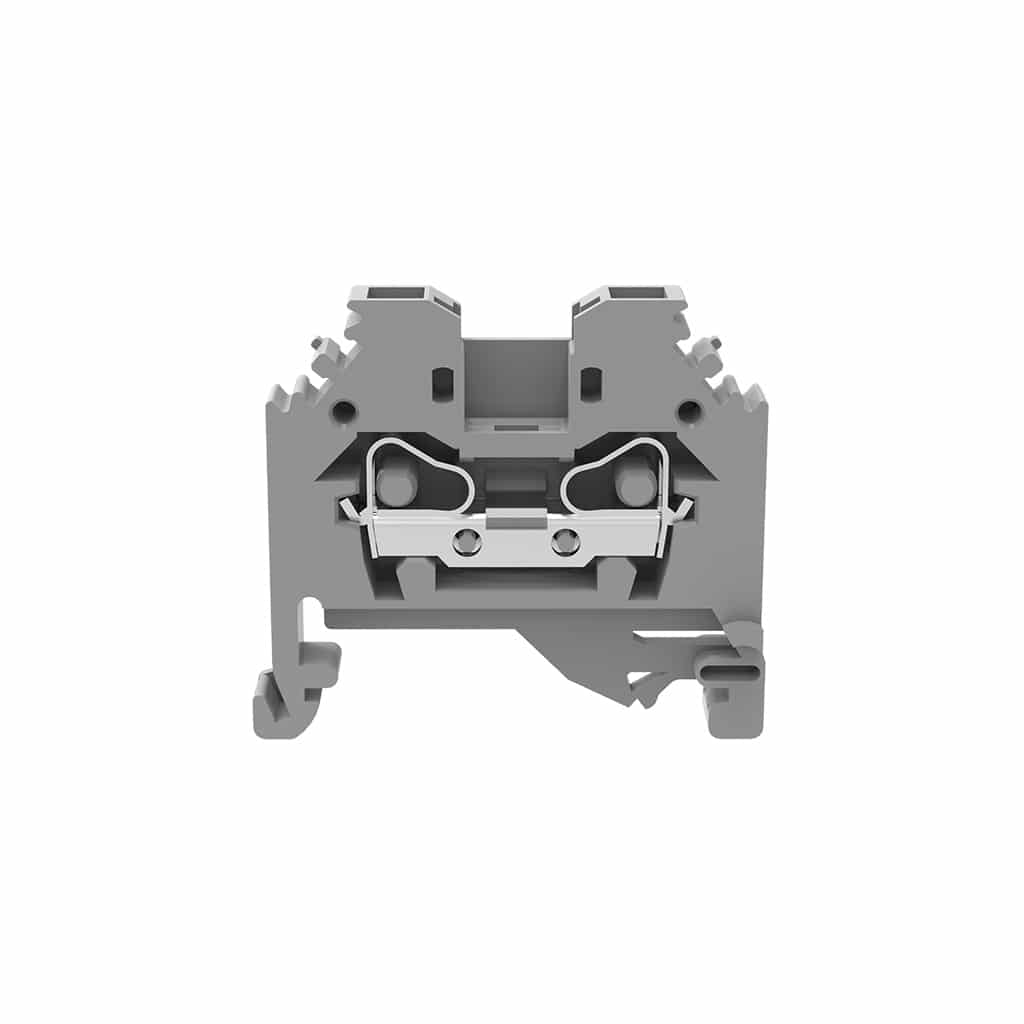

4mm2 – Spring Cage – WS4 – Din-Rail Series
Product specs
| Dimensions | N/A |
|---|---|

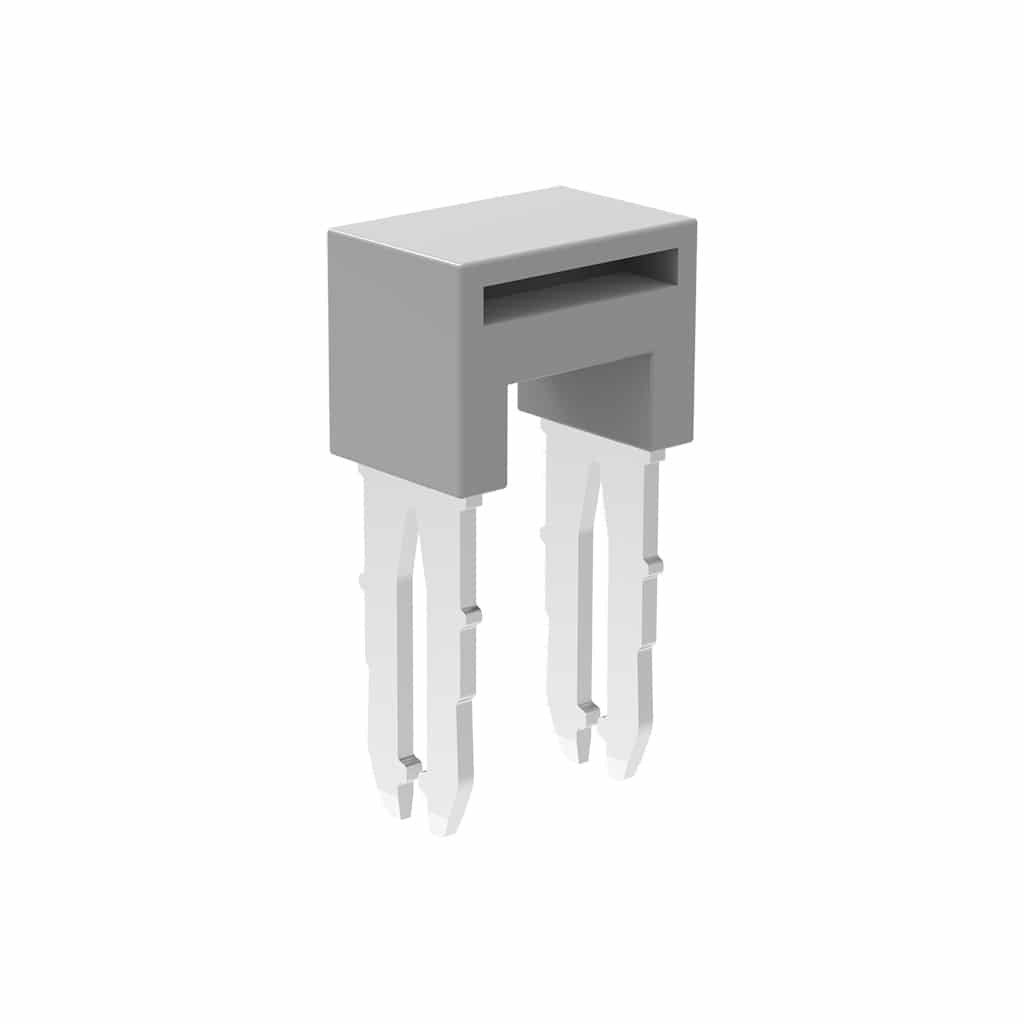

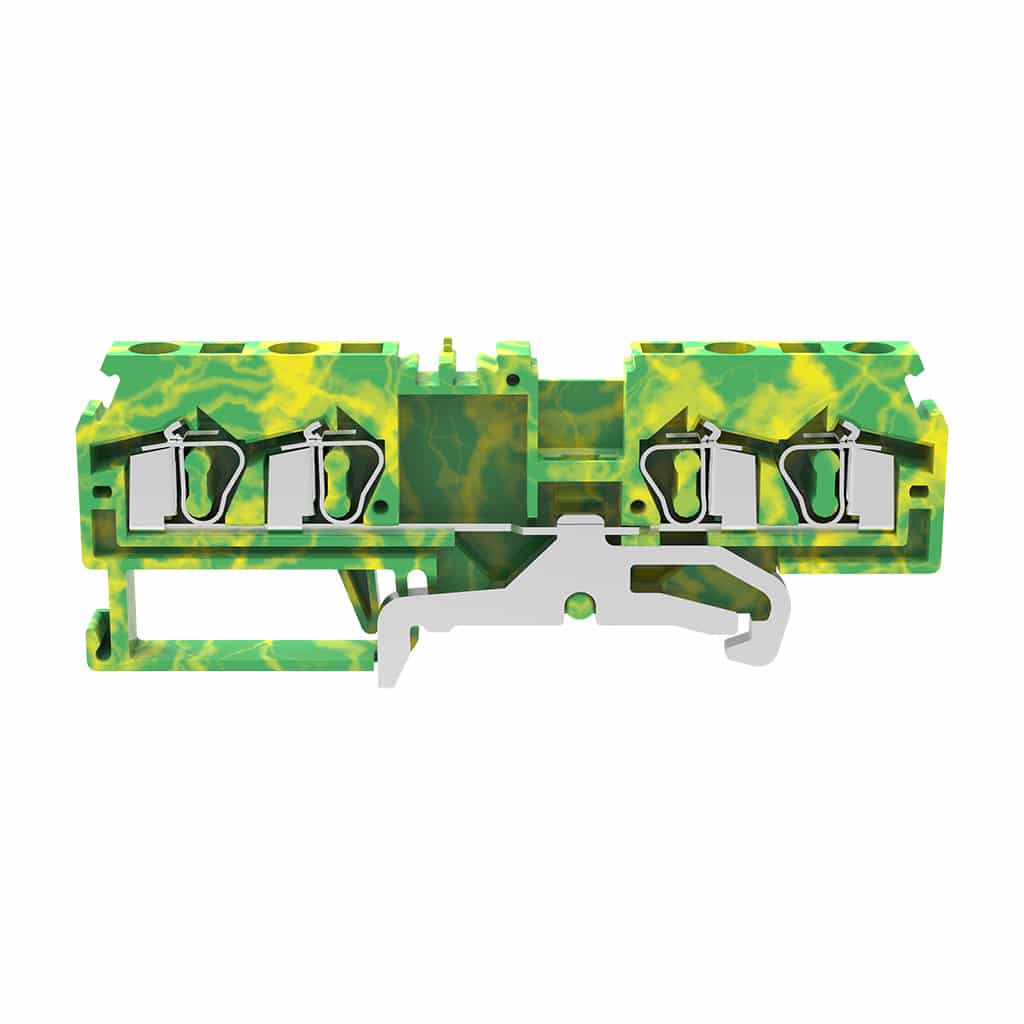

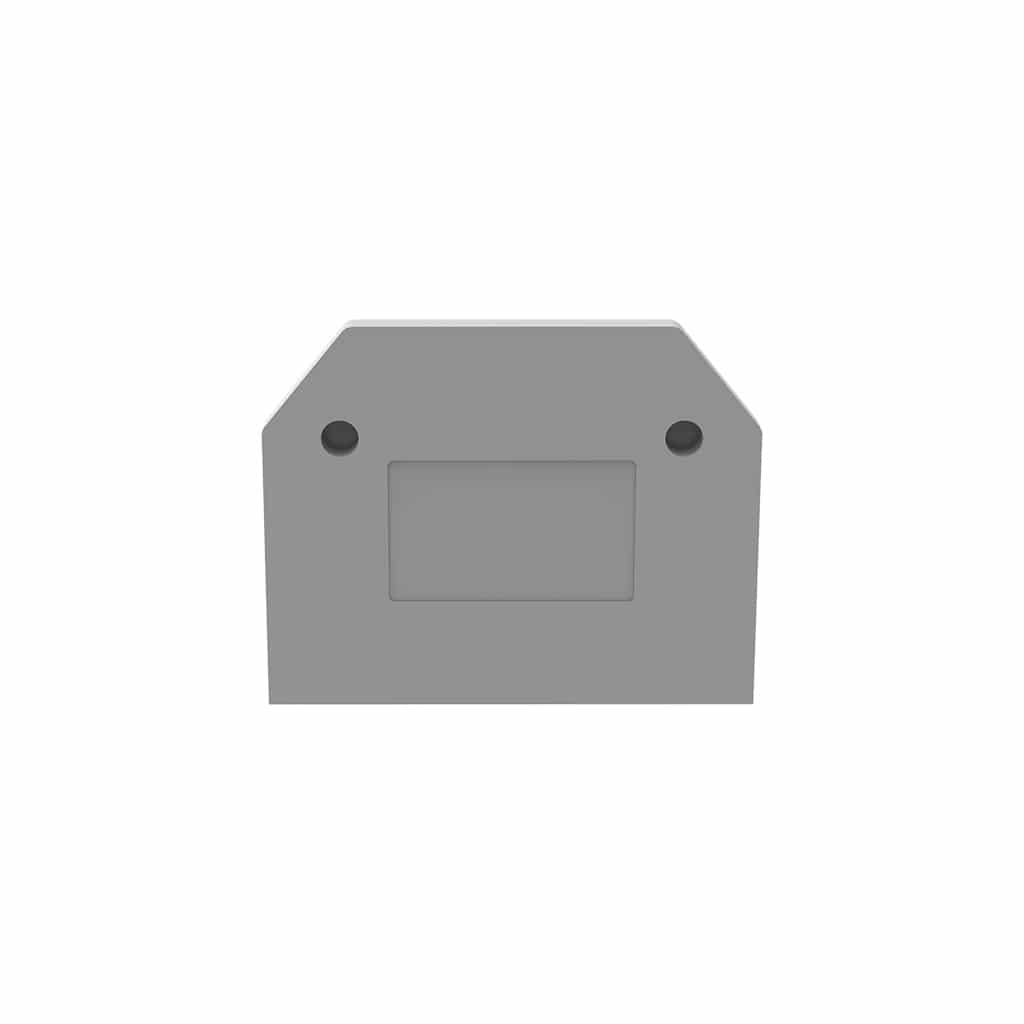

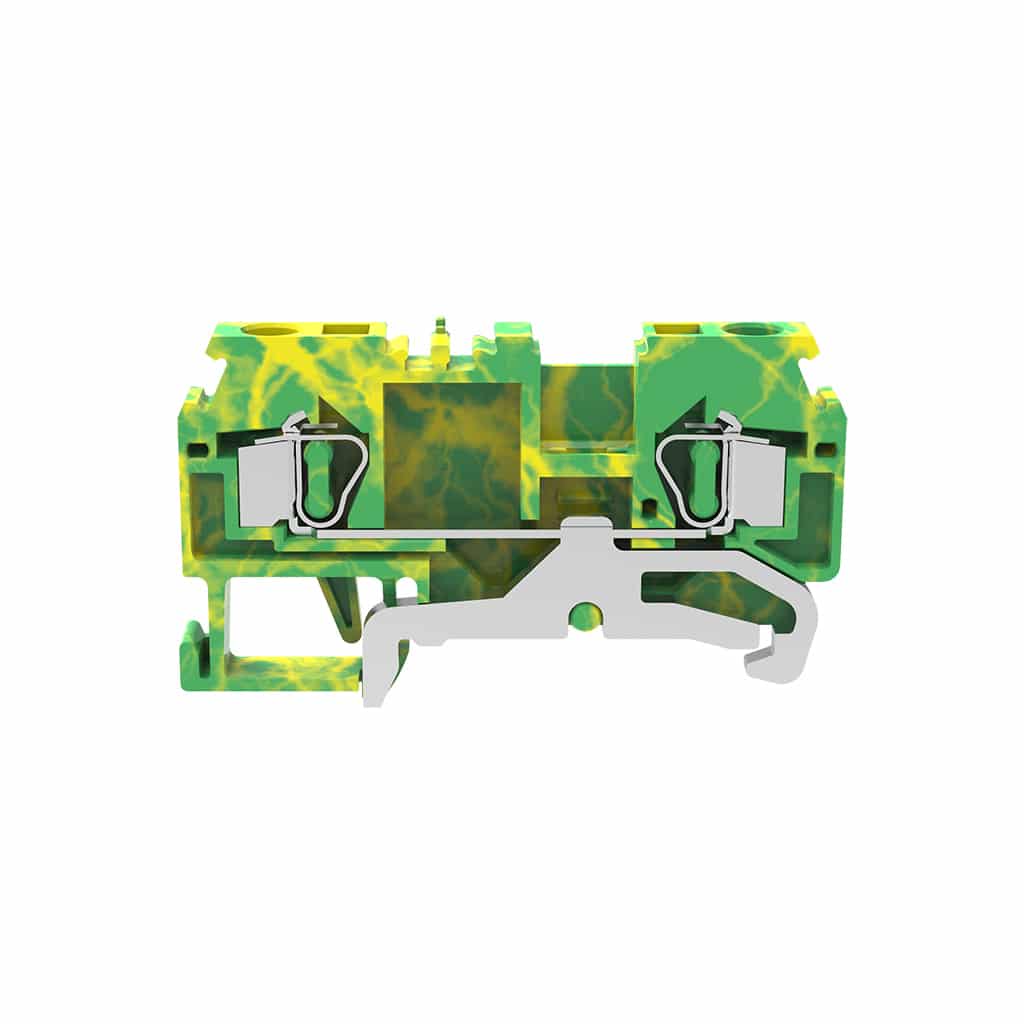

| Description | 2 Way Jumper, 4mm2 Earth Connector, 4mm2 Fused Connector, 4mm2 Grey Connector, Blank Marking Tab, End piece for WS4-QU,WS4-QU-PE, End piece for WS4-SD, End piece for WS4-TW, WS4-TW-PE, End piece for WS4, WS4-PE, End Stop |
| VDE/CE Ratings | 0.2-4mm2 16a @ 800V, 0.2-4mm2 32a @ 800V, 0.2-4mm2 |
| UL Ratings | 10-28awg 10a @ 600V, 12-28awg, 12-28awg 20a @ 600V |
| Number of Positions | 2, 3, 4, 10 |
| Colour | Grey, Yellow/Green, Red, Blue, Black |
| Approvals | CE, CE, UL |
Product Description
WS4 series is a Spring Cage Type Din-Rail connector from Degson offering upto 4mm2 Cable entry. Product is available in multiple colours upon request. WS4 series are PA66 material offering the highest V0 flammability rating.
- 4mm2
- Spring Cage
- Flammability Rating -V0
- Temperature – -40 + 105C
- Material PA66
- Other colours available on request
