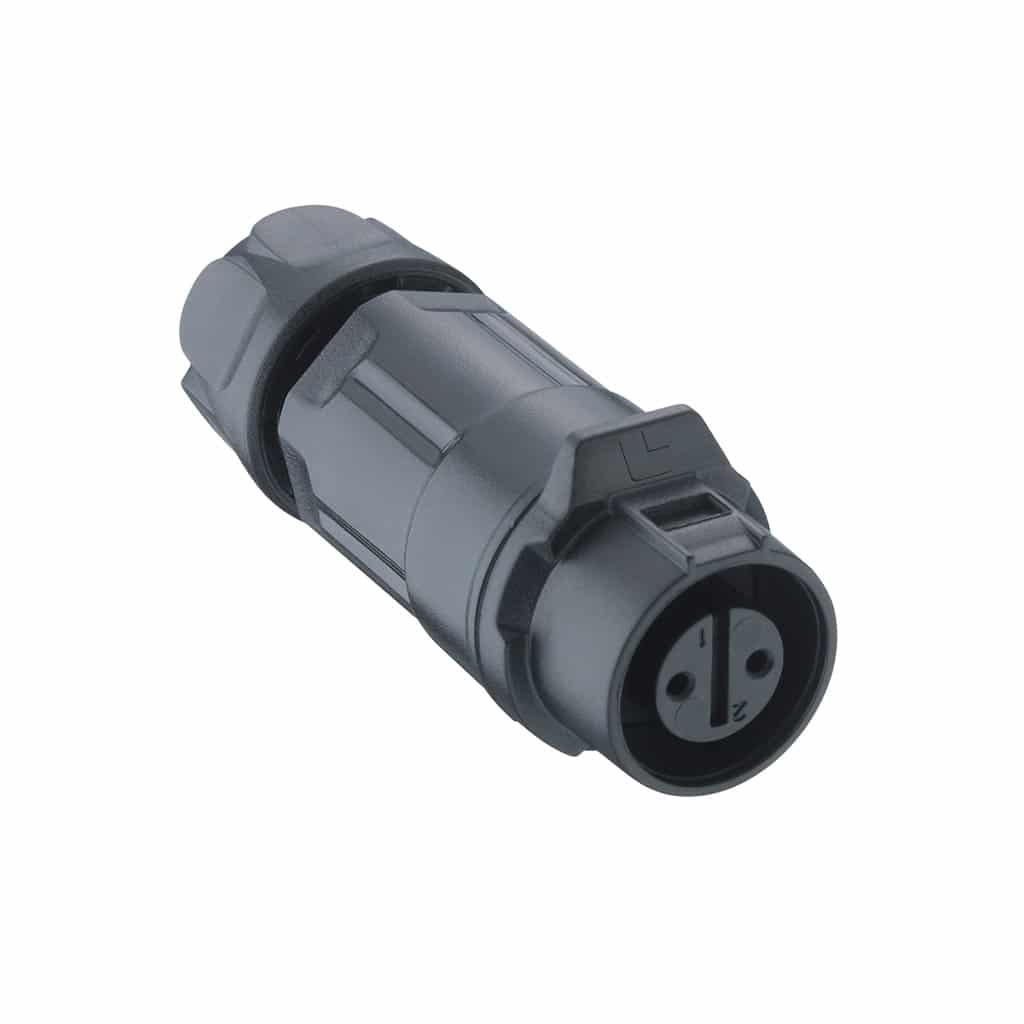

Circular Power Connector – Socket, Size 12, 0260 – Series
Product specs
| Poles | 2, 3, 4, 5, 6, 7, 8 |
|---|---|
| Rated Current | 3A, 5A |
Product Description
The 02 Series is a Circular Power Connector with the Quicklock mechanism from Lumberg. The straight socket is available with 2, 3, 4, 5, 6, 7 & 8 poles. IP67 when mated. Size 12 for signal and load currents up to 5A (2 ⁓ 6 poles up to 5A 7 ⁓ 8 poles 3A) Gold plated contacts, rated to 125V. Cable dia 3.00 ⁓ 6.00mm. Please ask for further details.
- Temperature range: -40 °C/+80 °C
- Insulating body: PBT, V-0 according to UL94
- Contact pin: CuZn, gold-plated
- Housing: PBT, V-0 according to UL94 – F1 according to UL 746C, outdoor suitability (UV-light, immersion)
- Protection class: IP67
- Contact resistance: ≤ 10 mΩ
- Rated current: 5 A (2–6 poles) 3 A (7–8 poles)
- Rated voltage: 125 V
- Rated impulse voltage: 1500 V AC
