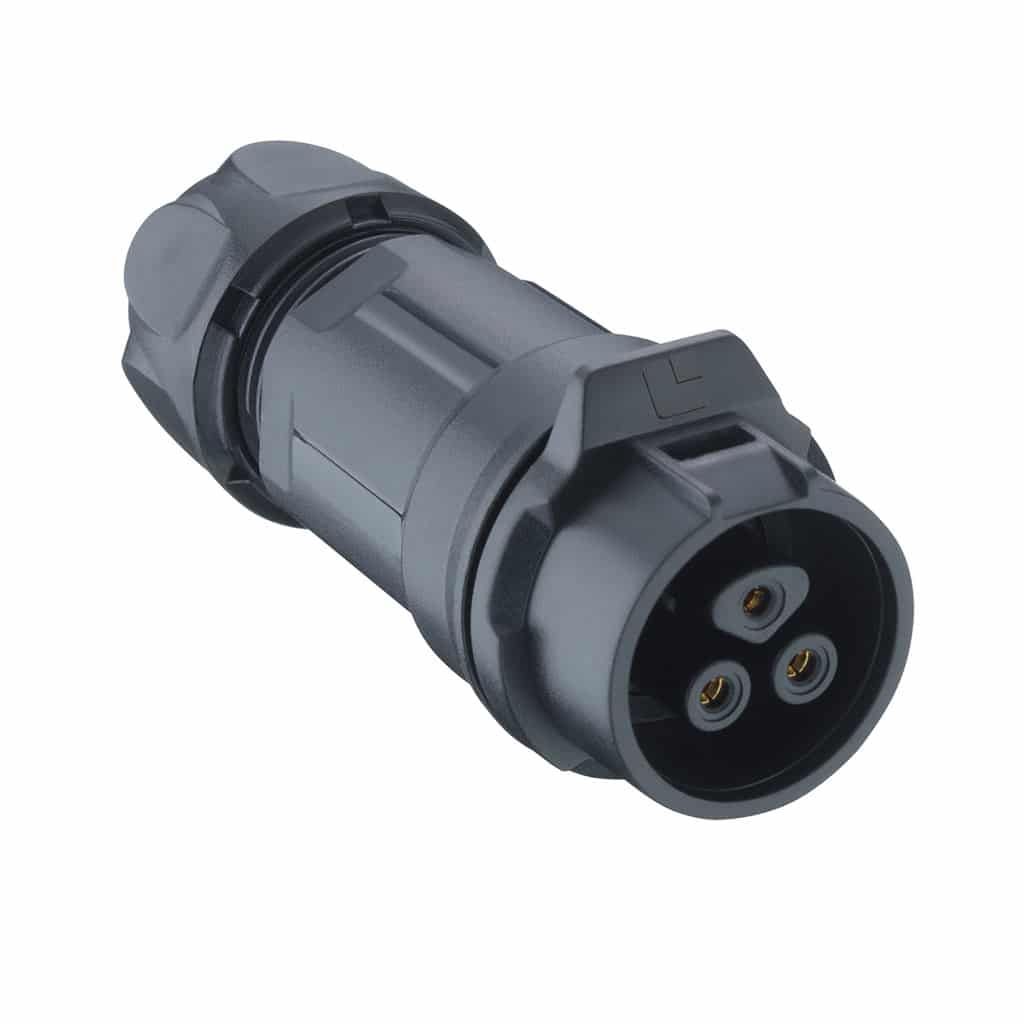

Circular Power Connector – Socket, Size 16, 0261 – Series
Product specs
| Poles | 2, 3, 4, 5, 7, 8, 9 |
|---|---|
| Rated Current | 5A, 10A |
Product Description
The 02 Series is a Circular Power Connector with the Quicklock mechanism from Lumberg. The socket is available with 2, 3, 4, 5, 7, 8 & 9 poles. IP67 when mated. Size 16 for signal and load currents up to 10A (2 ⁓ 4 poles up to 10A 5 ⁓ 9 poles 5A) Gold plated contacts, rated to 400V. Cable dia 3.00 ⁓ 8.5mm. Please ask for further details.
- Temperature range: -40 °C/+80 °C
- Insulating body: PBT, V-0 according to UL94
- Contact pin: CuZn, gold-plated
- Housing: PBT, V-0 according to UL94 – F1 according to UL 746C, outdoor suitability (UV-light, immersion)
- Protection class: IP67 – IP65 with Protection Cap
- Contact resistance: ≤ 5 mΩ
- Rated current: 10A (2–4 poles) 5 A (5–9 poles)
- Rated voltage: 400 V
- Rated impulse voltage: 2500 V AC
