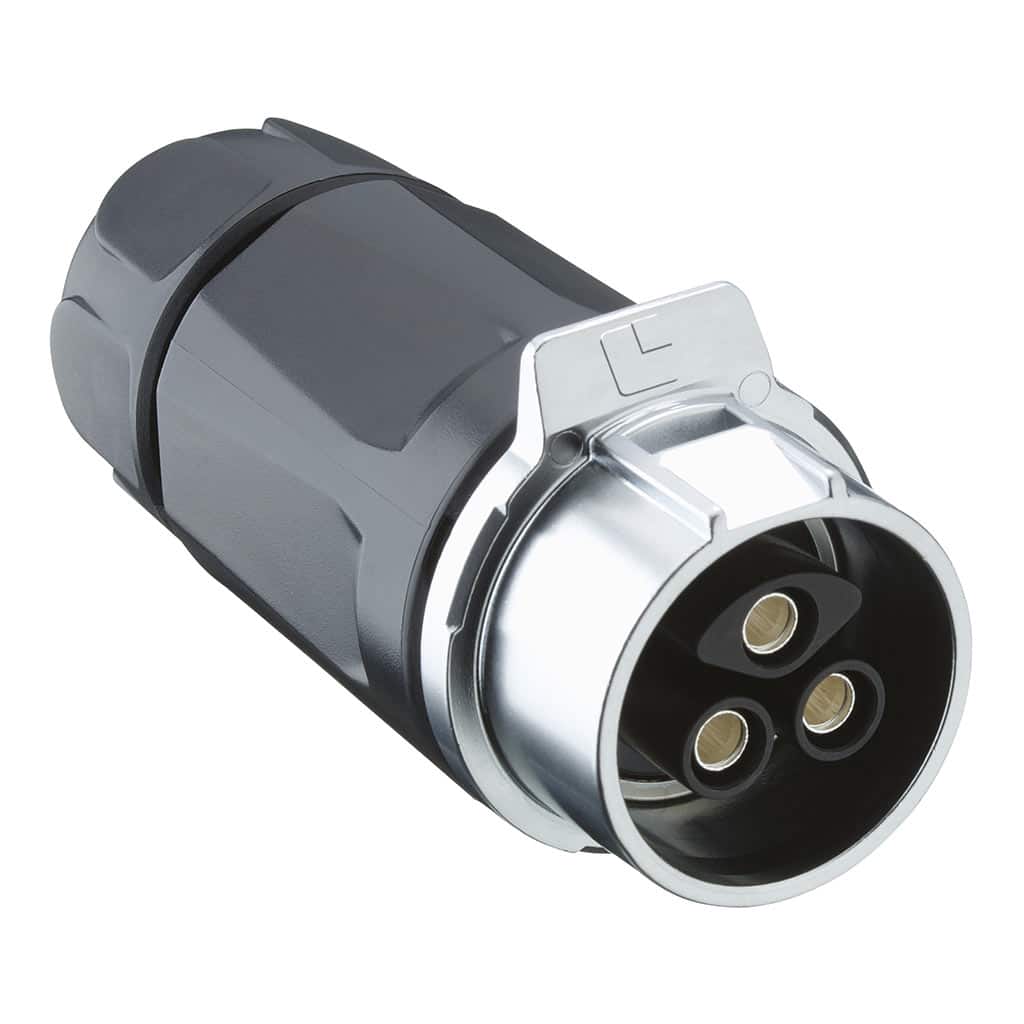

Circular Power Connector – Socket, Size 28, 0264 – Series
Product specs
| Poles | 2, 3, 8 |
|---|---|
| Rated Current | 17A, 43A, 50A |
Product Description
The 02 Series is a Circular Power Connector with the Quicklock mechanism from Lumberg. With added Chrome plated guiding element the socket is available with 2, 3, & 8 poles. IP67 when mated. Size 28 for signal and load currents up to 50A 2 poles, 42A 3 poles and 17A 8 poles. Gold plated contacts, rated to 500V. Cable dia 4.00 ⁓ 11.5mm. Please ask for further details.
- Temperature range: -40 °C/+80 °C
- Insulating body: PBT, V-0 according to UL94
- Contact pin: CuZn, gold-plated
- Chrome plated guiding element.
- Housing: PBT, V-0 according to UL94 – F1 according to UL 746C, outdoor suitability (UV-light, immersion)
- Protection class: IP67 – IP65 with Protection Cap
- Contact resistance: ≤ 5 mΩ
- Rated current: 50A 2 poles, 43A 3 poles, 17A 8 poles
- Rated voltage: 500 V
- Rated impulse voltage: 2500 V AC
