Crimp Housing 3.96mm – I-DS1072 – Series
Product specs
| Number of Pins | 2, 3, 4, 5, 6, 7, 8, 10, Crimp |
|---|---|
| Pitch | 3.96mm |
Product Description

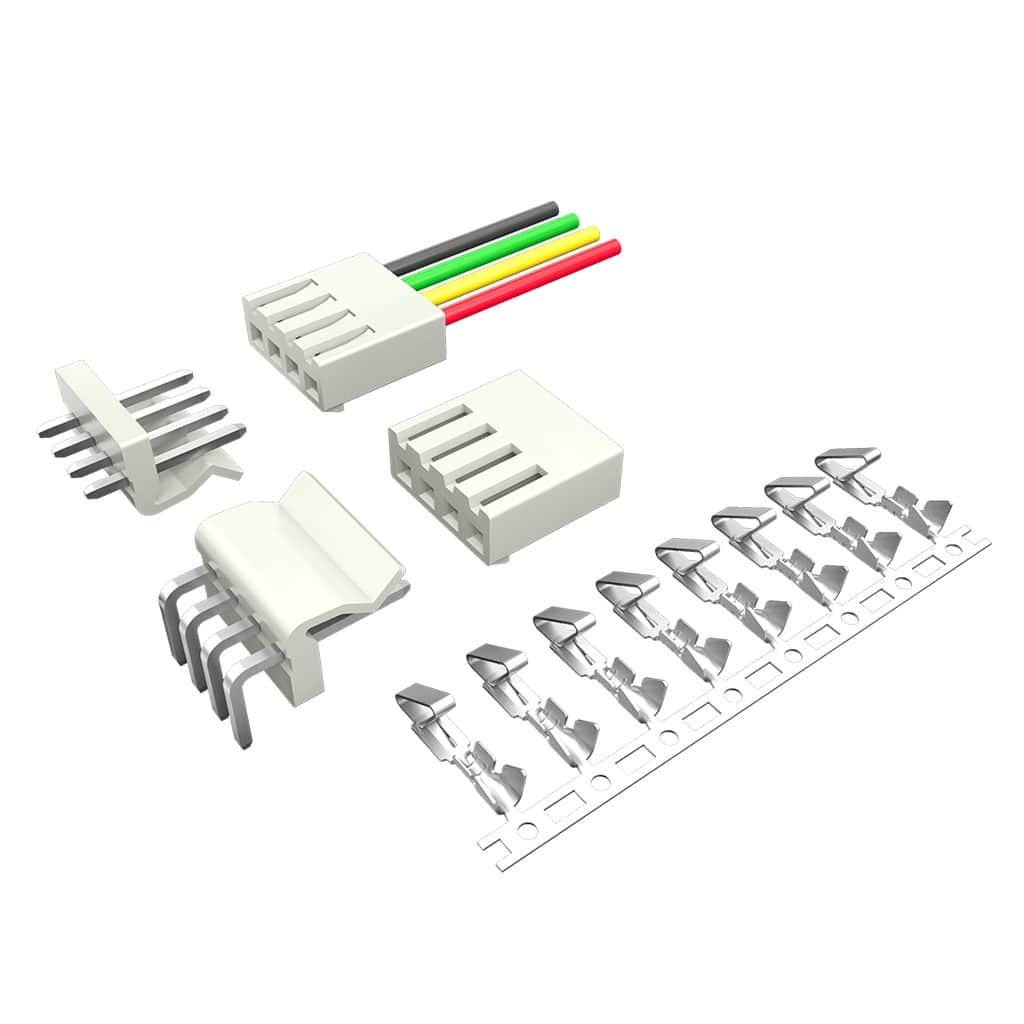

The I-DS1072 is a wafer crimp housing from Connfly. Available from 2-20 pins. Nylon 66 – UL 94V-0. Used with the T-DS1072-SC600 crimp 24-18Awg. For use with the PCB mount male header DS1072.
- Pitch – 3.96mm
- Current rating – 7A
- Housing – Nylon 66 (UL 94V-0)
- Temperature Range -25C + 85C
- Contact Resistance – 30mΩ max
- Insulation Resistance – 1000mΩ max
- Dielectric Withstanding Voltage – AC 500V 1 Minute
- Wire Range 24-18Awg
