SKU: D6F-A7/L7/N7 Categories: , , Manufacturer:

Product specs

Weight 72 g
Dimensions 84.6 × 30 × 30 mm
Applicable Gas


Flow Rate

0~10L/min, 0~2L/min, 0~30L/min, 0~5L/min

Power Supply (Vdc)

10.8~26.4 Vdc

Voltage Output Signal

Analog 1-5 Vdc


Quick Joint P10

Product Description

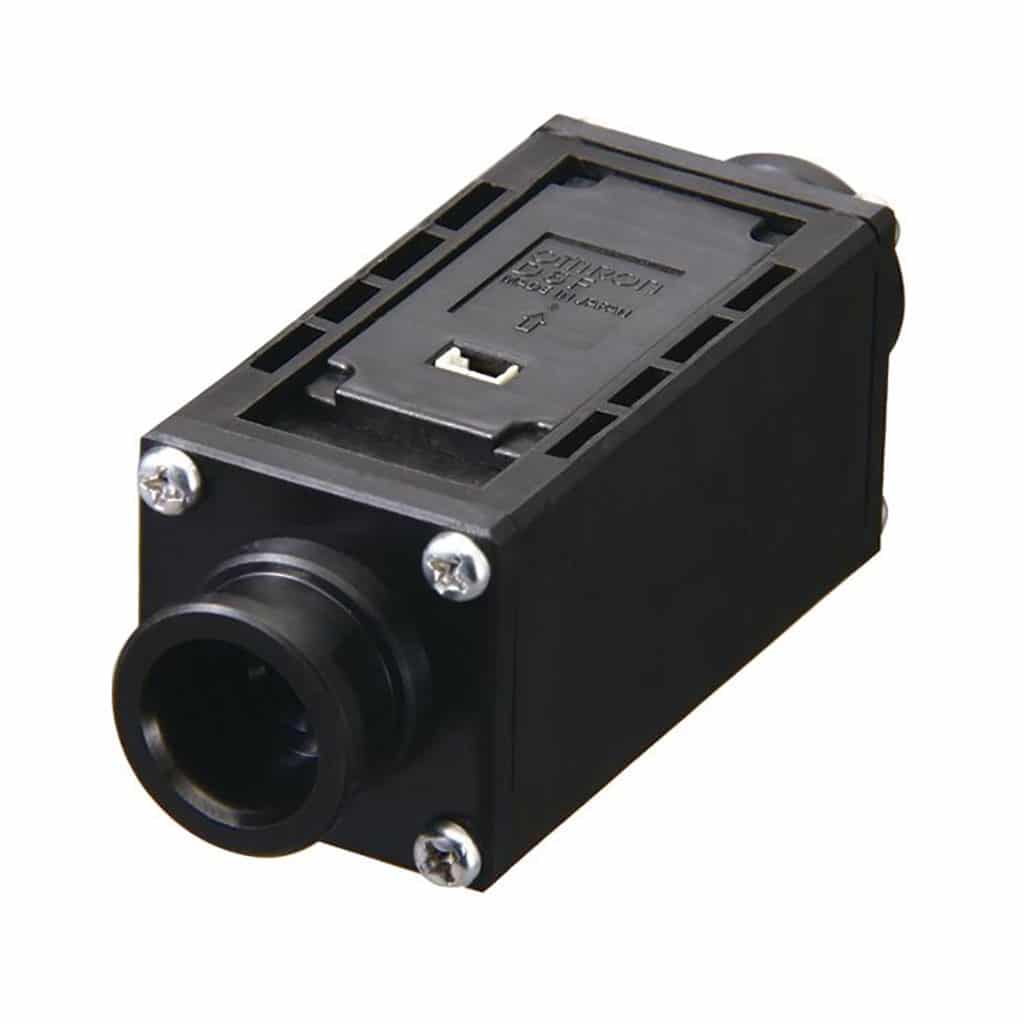

The D6F-A7/L7/N7 MEMS flow sensor series from Omron is a allow for a reduction of piping time by quick joint connection. Depending on the exact device selected, the user can have a flow rate of Air, Natural Gas or LP Gas with a flow rate range of up to 30L/min

  • Calibration Gas: Air, LPG or LNG
  • Flow Port Type: Quick Joint P10
  • Electrical Connection: 3 Pin Connector
  • Power Supply: 10.8 to 26.4 VDC
  • Current Consumption: 15mA (with no load)
  • Accuracy: ±3% FS
  • Case: PPS
  • Protection: IP40 (excluding tubing sections)
  • Operating Temperature: -10°C to +60°C
  • Storage Temperature: -10°C to +80°C
  • Weight: 72g
