DC Contactor – C310 series

SKU: C310 Categories: , Manufacturer:

Product Description

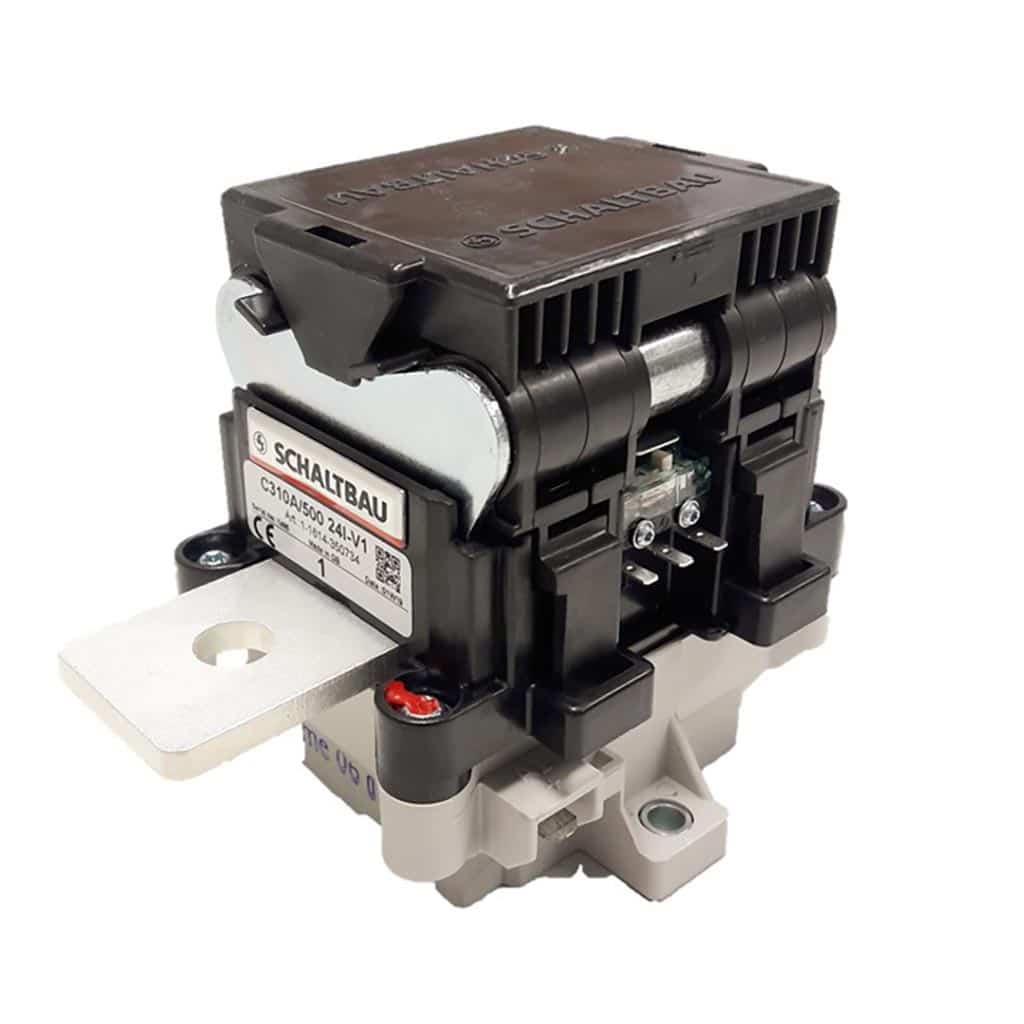

The C310 is a bidirectional DC contactor from Schaltbau. The C310 switches high power ranges within a small footprint. Its making capacity of up to 2,500 A is necessary for discharging intermediate circuits through a resistor.
In the C310A/500 design, the contactor can continuously conduct up to 500 A. In the event of a short circuit, 3,000 A can even flow for one second without the contacts fusing. The contactor therefore maintains its full function in order to disconnect high power ranges if necessary – irrespective of the current direction.
This full bidirectionality is important for systems with a charging and discharging process, such as in battery networks or electric vehicles. Other typical application areas are the DC circuit in inverters, combiner boxes in photovoltaic systems or the management of battery storage systems.

  • Type of voltage – DC bidirectional, AC (f ≤ 60 Hz)
  • Contact configuration – 1 NO
  • Nominal voltage Un – C310A: 1,000 V @ PD3 / 1,500 V @ PD2   C310S: 60 V @ PD3
  • Rated insulation voltage Ui – 1,000 V @ PD3 / 1,500 V @ PD2
  • Rated impulse withstand voltage Uimp – 8 kV
  • Conv. thermal current Ith  –  500A @ 40° C / 300 A @ 40° C / 150 A @ 40° C
  • Rated short-time withstand current Icw (T < 100 ms)  – 3,000 A
  • Rated short-circuit breaking capacity Icn  –  …/150: 20 sw.-cycles @ 500 A; 750 V; L/R = 0.1 ms
  • Rated short-circuit breaking capacity Icn  – …/300: 40 sw.-cycles @ 500 A; 750 V; L/R = 0.1 ms
  • Rated short-circuit breaking capacity Icn  – …/500: 60 sw.-cycles @ 500 A; 750 V; L/R = 0.1 ms
  • Auxiliary switch –  2x SPDT max. with mirror contact function, single-break, S880 series, AC-15: 230 VAC / 1.0 A; DC-13: 60 VDC / 0.5 A
  • Coil voltage Us –  Standard: 9.5 ~ 36 V DC, Bistable: 24 / 48 V DC
  • Mounting orientation – horizontal, vertical – Exception: do not mount upside down
  • Temperature range        -40° C ~ +70° C
  • Mechanical endurance – 1 million op. cycles (std. magnetic drive) 100,000 op. cycles (latch magnetic drive)
