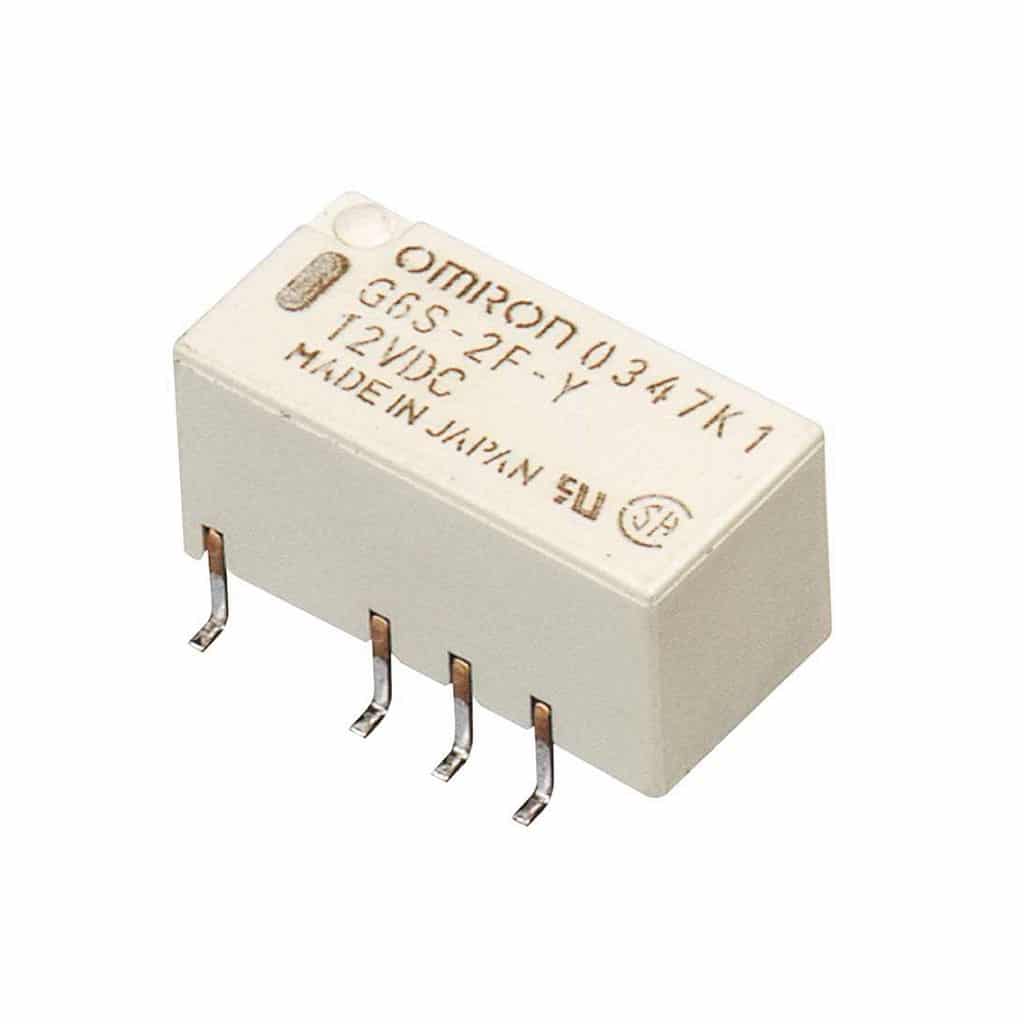

G6S 2a PCB and SMD Relay

G6S 2a PCB and SMD Relay

SKU: G6S Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

3Vdc, 5Vdc, 4.5Vdc, 12Vdc, 24Vdc
Contact Arrangement

DPDT (2CO) -2 Form C
Coil Type

Non Latching, 1 Coil Latching, 2 Coil Latching
Contact Rating (Amps)

2A
Sealing

Fully Sealed
Contact Material

Ag + Au Alloy
Coil Resistance (Ohm)

101Ω, 1028Ω, 145Ω, 178Ω, 1920Ω, 203Ω, 2504Ω, 250Ω, 3840Ω, 4114Ω, 64.3Ω, 45Ω, 90Ω, 125Ω, 1440Ω, 720Ω, 2880Ω
Mounting

PCB, SMD
Type

Signal Relay

Product Description

G6s is a miniature 2 pole relay available from Omron. Available in PCB and surface mount configurations in non latching, 1 coil latching and 2 coil latching.

Available in voltages from 3-24vdc.



  • Long terminals for ideal for soldering and mounting reliability. (Surface
    mounting terminal models)
  • Space-saving inside-L terminal. (Surface mounting terminal models)
  • Unique terminal structure, designed to withstand IRS soldering
    processes. (Surface mounting terminal models)
  • High dielectric strength (2,000 VAC) and impulse withstand voltage
    between coil and contacts (2,500 V, 2 × 10 μs: Telcordia requirements).
  • Ultra-miniature at 9.4 mm (H) × 7.5 mm (W) × 15 mm (L).
  • Models available with BSI (EN62368-1) supplementary insulation
    certification. (-Y type)
