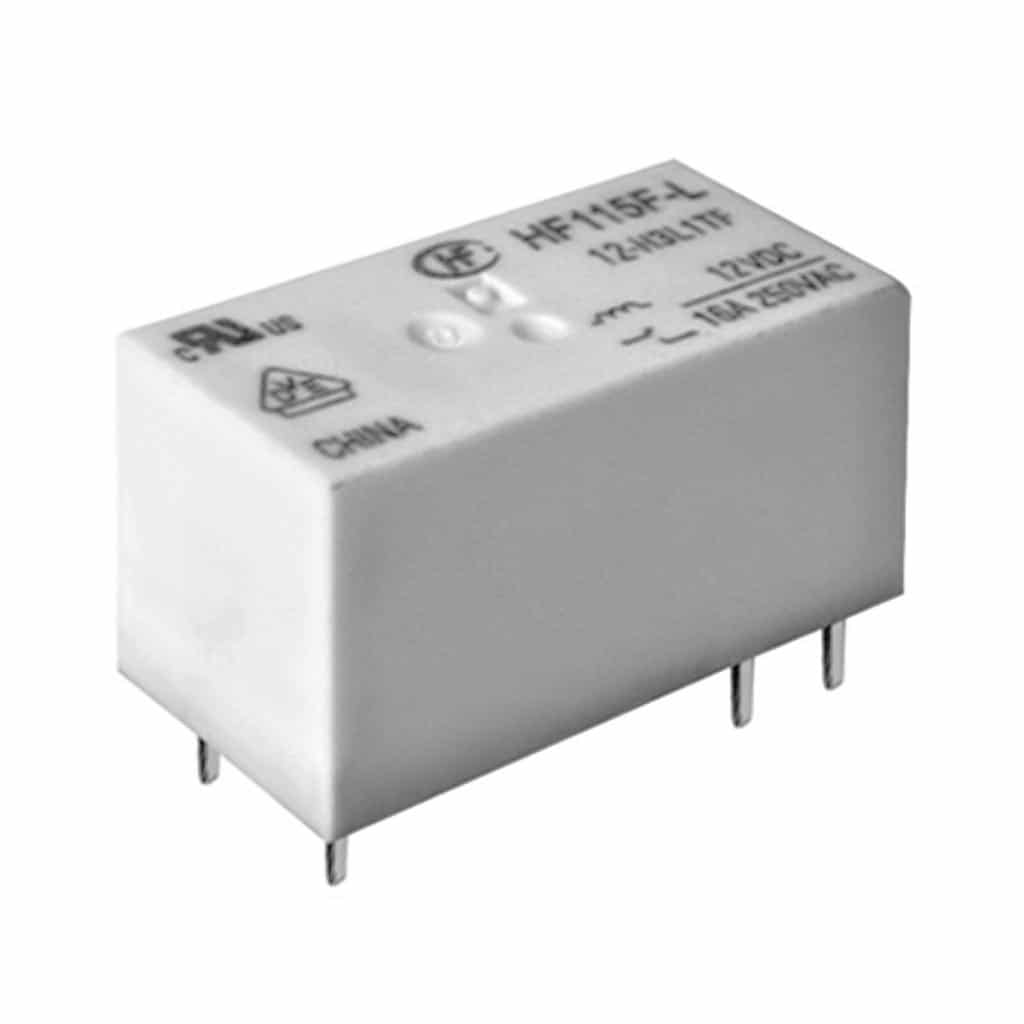

HF115F-L Single pole Latching Relay
HF115F-L Single pole Latching Relay - Image 2
HF115F-L Single pole Latching Relay - Image 3
HF115F-L Single pole Latching Relay - Image 4
HF115F-L Single pole Latching Relay - Image 5

HF115F-L Single pole Latching Relay

SKU: HF115F-L 1 Pole Category: Manufacturer:
Download PDF

Product specs

Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc
Contact Arrangement

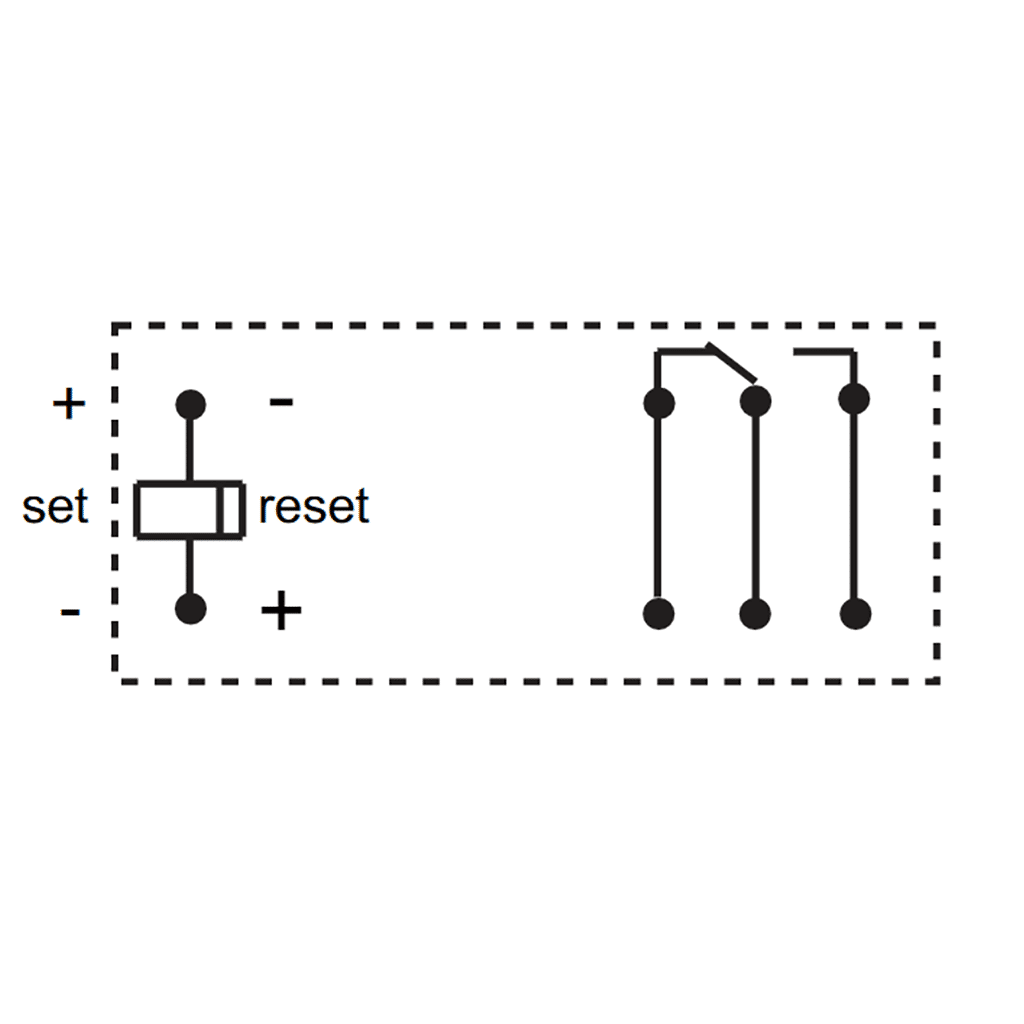

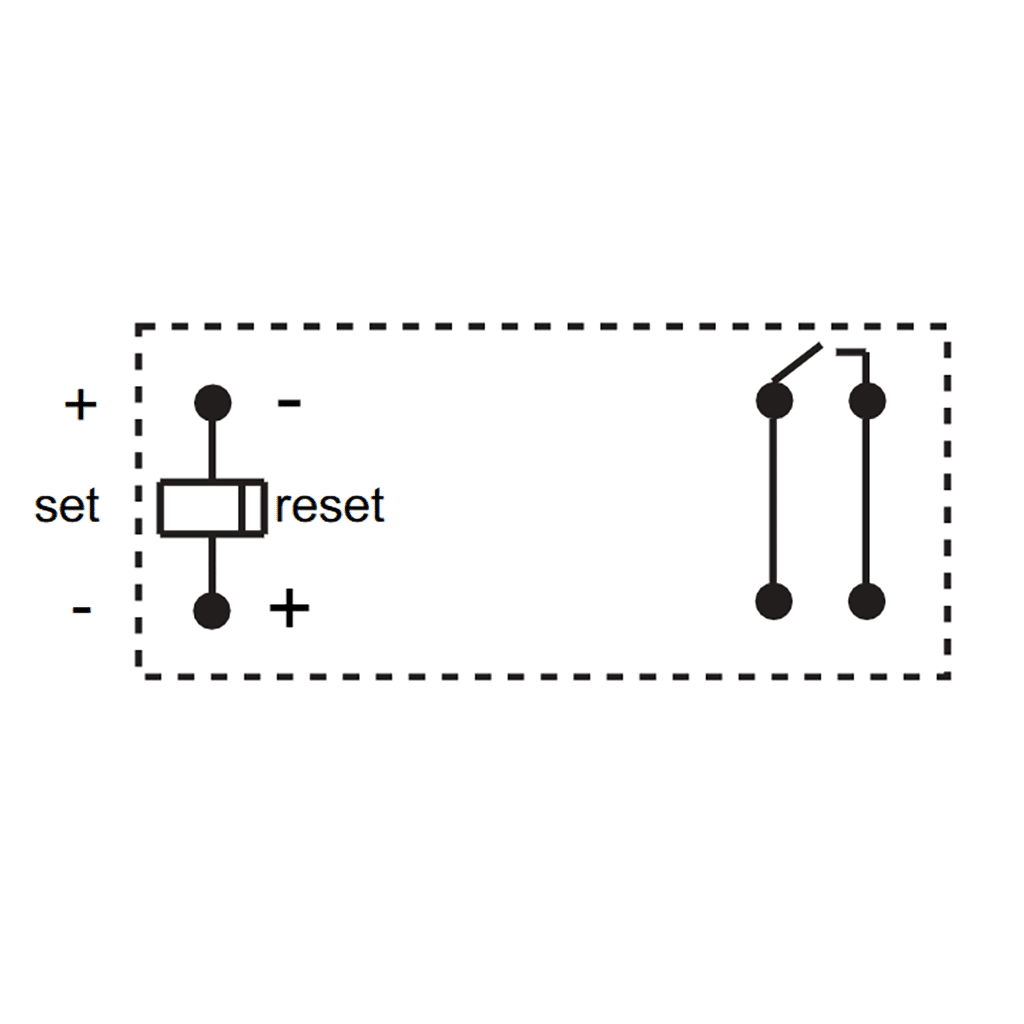

SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C
Coil Type

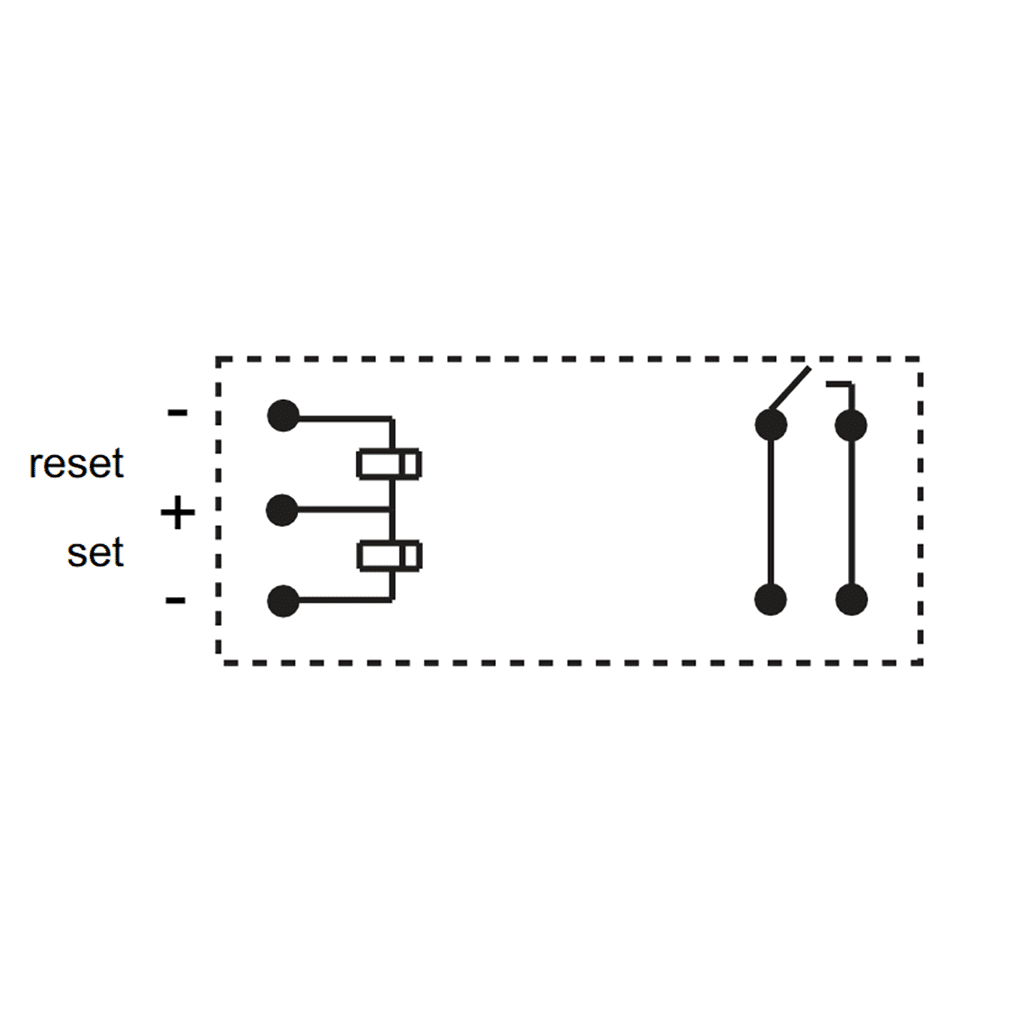

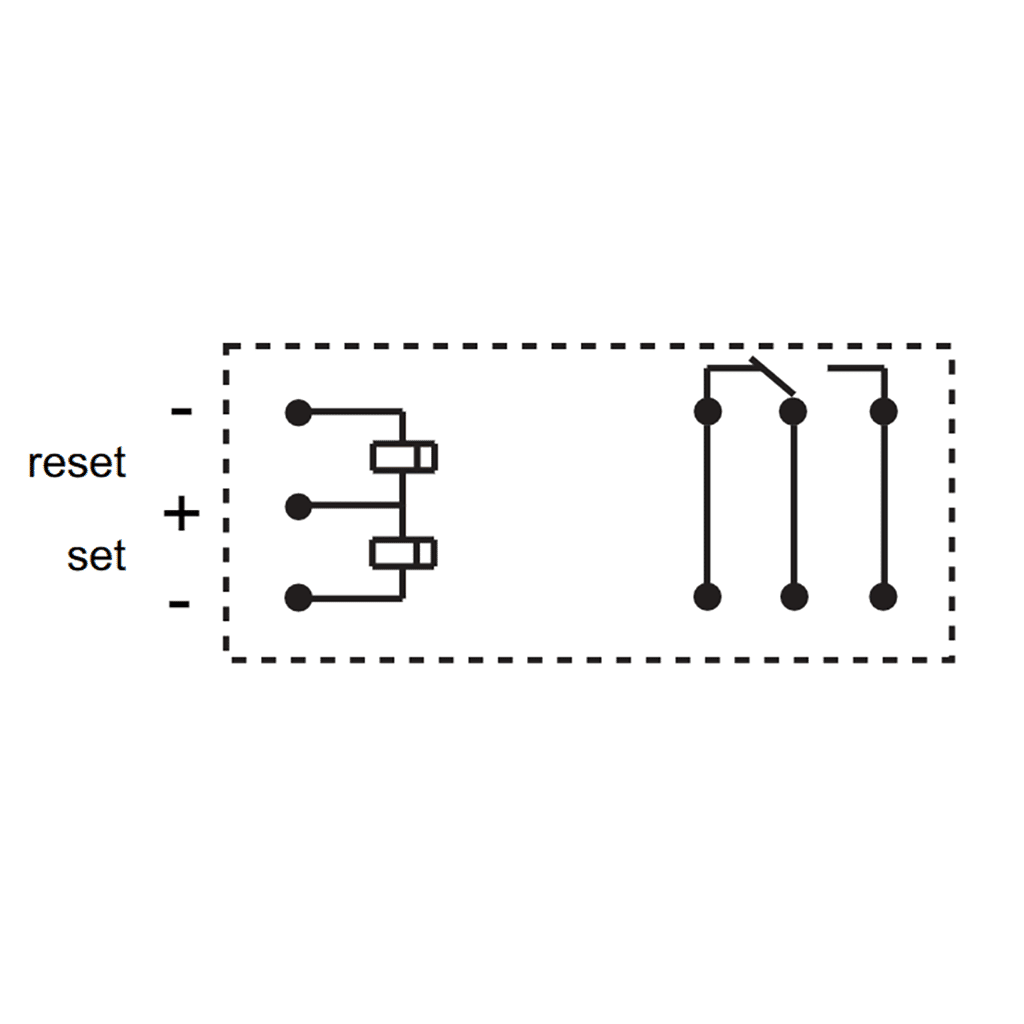

1 Coil Latching, 2 Coil Latching
Contact Rating (Amps)

16A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgSnO2
Coil Resistance (Ohm)

135Ω, 240Ω, 42Ω, 886Ω, 55Ω, 62Ω, 90Ω, 202Ω, 360Ω, 1440Ω
Mounting

PCB
Type

Power Relay

Product Description

HF115F-L is a single pole relay from HongFa offering Latching capabilities.

Available from 5vdc upto 24vdc coil voltage.

  • Latching relay
  • Low height: 15.7 mm
  • 20A switching capability
  • 5kV dielectric strength     (between coil and contacts)
  • Creepage distance: 11mm-NO/10mm-CO version
  • Meeting VDE 0700, 0631 reinforce insulation
  • Product in accordance to IEC 60335-1 available
  • UL insulation system: Class F
