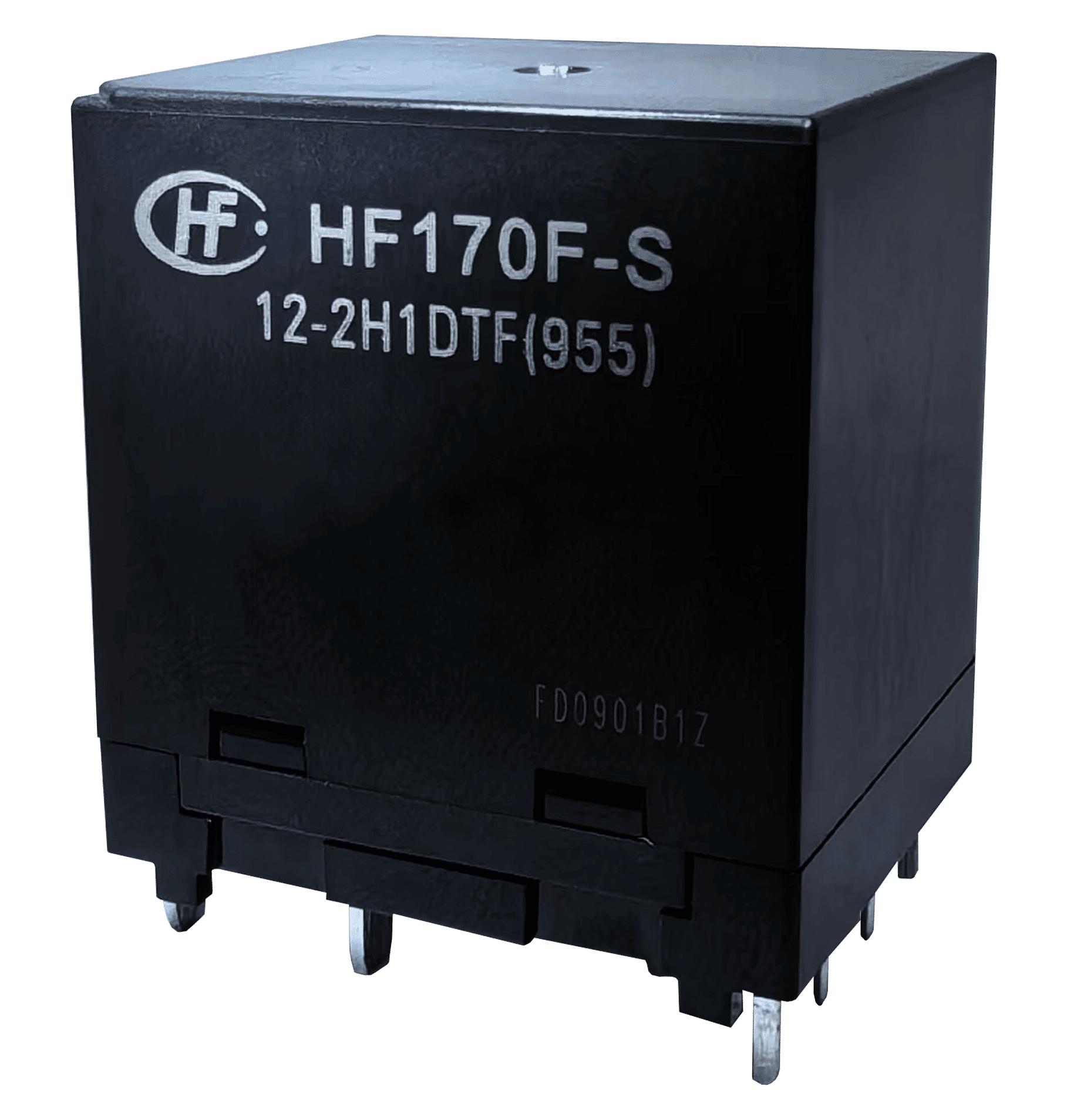

HF170F-S Miniature High Power Relay

SKU: HF170F-1 Category: Manufacturer:

Product specs

Coil Voltage

6Vdc, 9Vdc, 12Vdc, 24Vdc, 48Vdc

Contact Arrangement

DPST (2NO) -2 Form A

Coil Type

Non Latching

Contact Rating (Amps)

40A

Sealing

Flux Proof

Contact Material

AgNi, AgSnO2

Coil Resistance (Ohm)

1225.5Ω, 19.1Ω, 306.4Ω, 43.1Ω, 76.6Ω

Mounting

PCB

Type

Power Relay

Product Description

Hongfa Solution for Electric Vehicle AC-Charger.

  • 2 Pole Relay – 40A – 277V AC
  • SCCR 3kA Compliant to IEC 62955
  • High Energy Efficiency Rth=17k/W
  • 36Å~30Å~40 mm Compact Size
  • Energy Saving with Low Coil Holding Voltage
  • UL/TUV/CQC/IEC62955
  • 2 Main contact +1 Auxiliary contact
  • Contact gap 3.6 mm (Main contact), each contact 1.0 mm
  • Outline dimensions (36×30×40)mm
