Leaf Spring , 10.0mm Pitch , DG300-5.0-xxP-2300AH
Product specs
| Height | 12.8mm |
|---|---|
| Pitch | 10mm |
| Wire Orientation | Horizontal |
| Poles | 2, 3, 4 |
| Clamp Type | Leaf Spring |
| Colour | Black |
Product Description

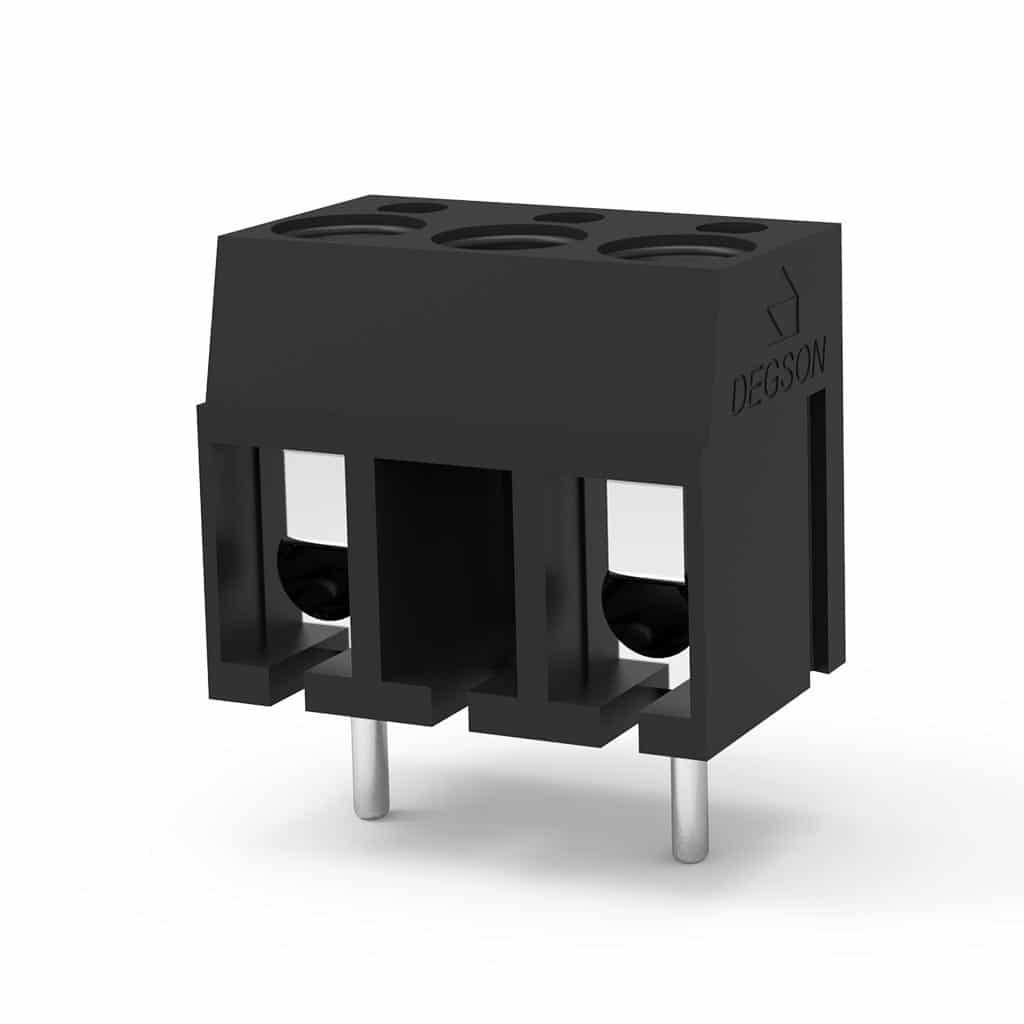

DG300 10mm pitch series is a 12.8mm high leaf spring connector from Degson. Product is available in multiple poles and different colours upon request. Due to the 10mm pitch structure these cannot be made up
DG300 series is UL (E228872) approved.
- Pitch 10.0mm
- Leaf Spring
- 12.8mm High – 9mm Depth
- Ambient Temperature – -30 + 120C
- Housing – PBT
- Screw – M3 slotted
- UL File number E228872 – 14-22 Awg – 10A
- Black colour stocked
