Leaf Spring – 5.0mm Pitch , DG350-3.5-xxP-1400AH
Product specs
| Pitch | 3.5mm |
|---|---|
| Wire Orientation | Horizontal |
| Poles | 2, 3, 4, 6, 7, 8 |
| Clamp Type | Leaf Spring |
| Colour | Green |
Product Description

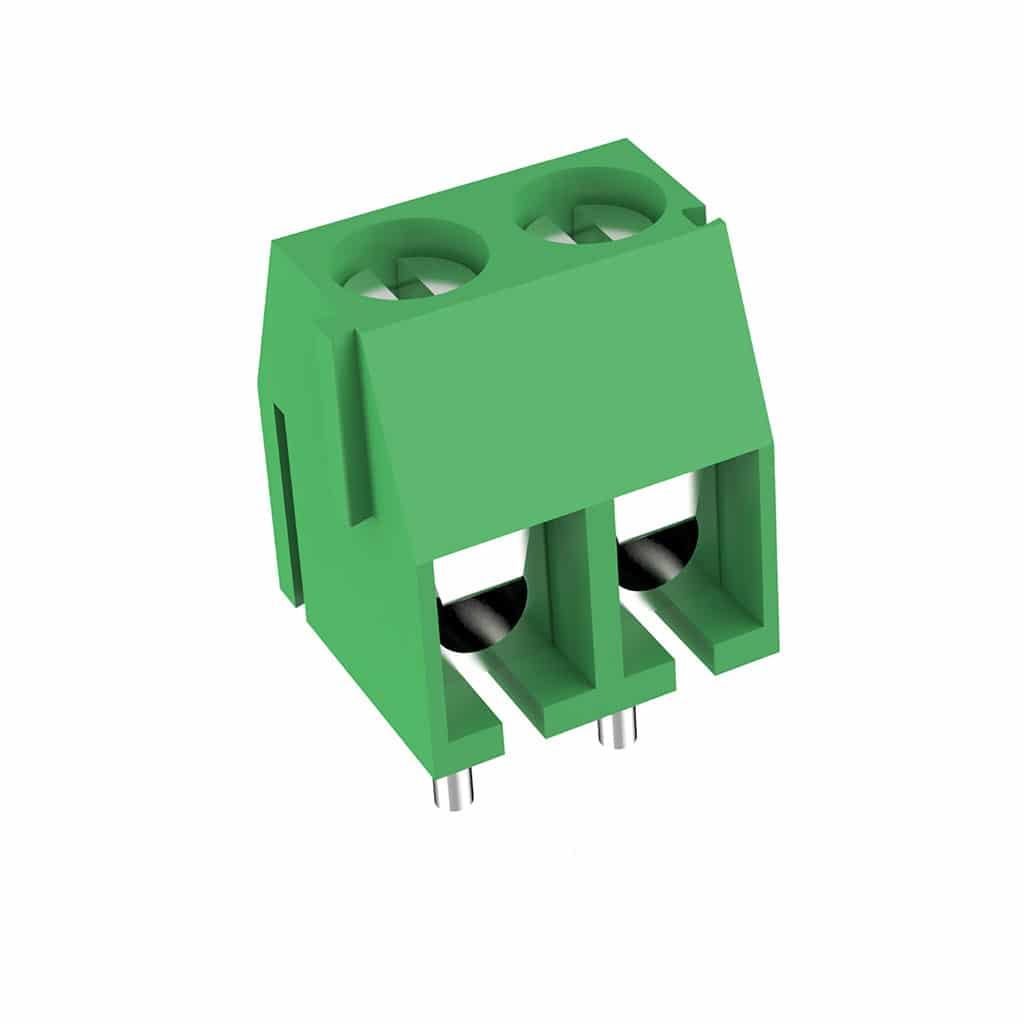

DG350-3.5 series is a compact 3.5mm pitch Lleaf spring terminal block. Product is available in multiple poles and different colours upon request. Product is interlocking so any number of ways can be made up with a 2 & 3 way combination.
DG350 series is UL (E228872) ans VDE (40022177) approved and offers the highest V0 flammability rating.
- Pitch 3.5mm
- 8.4mm High – 6.8mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M2 slotted
- UL File number E228872 – 18-24 Awg – 7A @ 300v
- VDE File number 40022177 – 0.5-1mm2 – 10A @ 130v
- Interlocking
- Colour Green as standard
