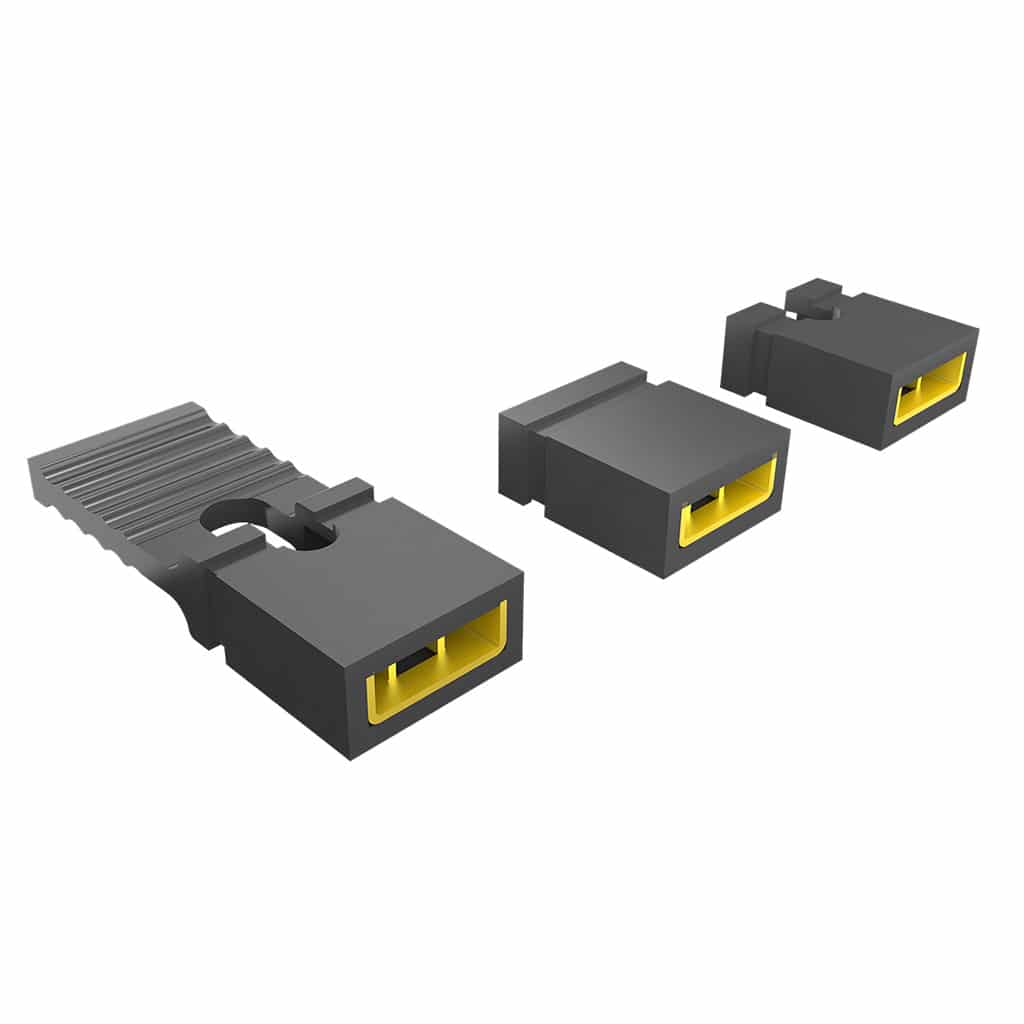

Mini Jumper Link – DS1027-Series
Product specs
| Pitch | 2.54mm |
|---|---|
| Number of Rows | 1 |
| Orientation | Closed, Open, Open – Handle |
| Colour | Red, Black |
Product Description
The DS1027 is a Mini Jumper Link from Connfly. The quality gold plated jumpers are available in open, closed and long handle versions. The standard colour is Black with other options available, please ask for details. The Thermopastic housing is UL 94V-0 rated. Used with the DS1021 range of Pin Headers.
- Contact – Copper Alloy/ Gold Plated
- Housing – Thermoplastic (UL 94V-0)
- Temperature Range -40C + 105C
- Contact Resistance – 30mΩ max
- Insulation Resistance – 500mΩ min
- Current Rating – 3A
