PCB Header 3.96mm – DS1072- Series
Product specs
| Number of Pins | 2, 3, 4, 5, 6, 7, 8, 10 |
|---|---|
| Orientation | Straight, Right Angle |
| Pitch | 3.96mm |
Product Description

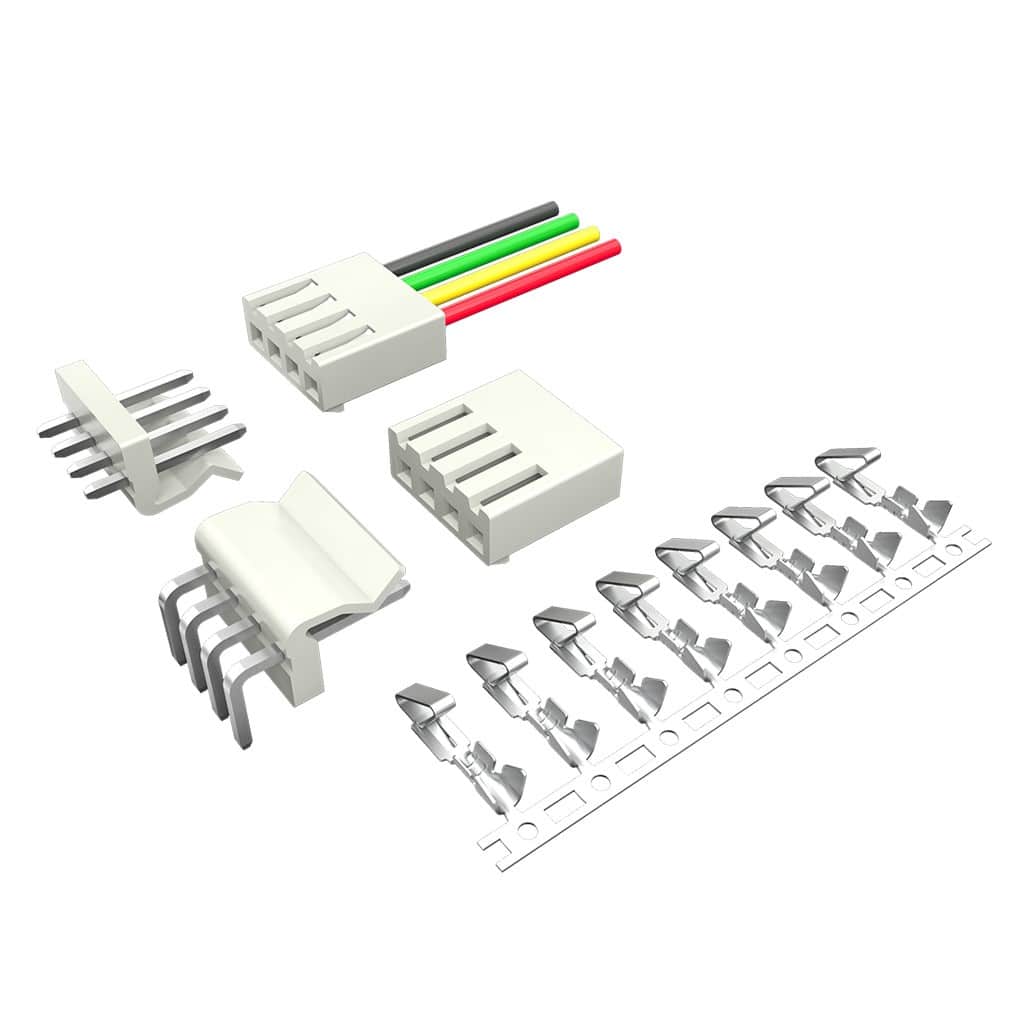

The DS1072 is a PCB header from Connfly. Straight or right angle with friction lock. Available from 2-20 pins. Nylon 66 – UL 94V-0. For use with the female housing I-DS1072.
- Pitch – 3.96mm
- Current rating 7A
- Housing – Nylon 66 (UL 94V-0)
- Temperature Range -25C + 85C
- Contact Resistance – 30mΩ max
- Insulation Resistance – 1000mΩ max
- Dielectric Withstanding Voltage – AC 500V 1 Minute
- Recommend PCB thickness 1.6mm
