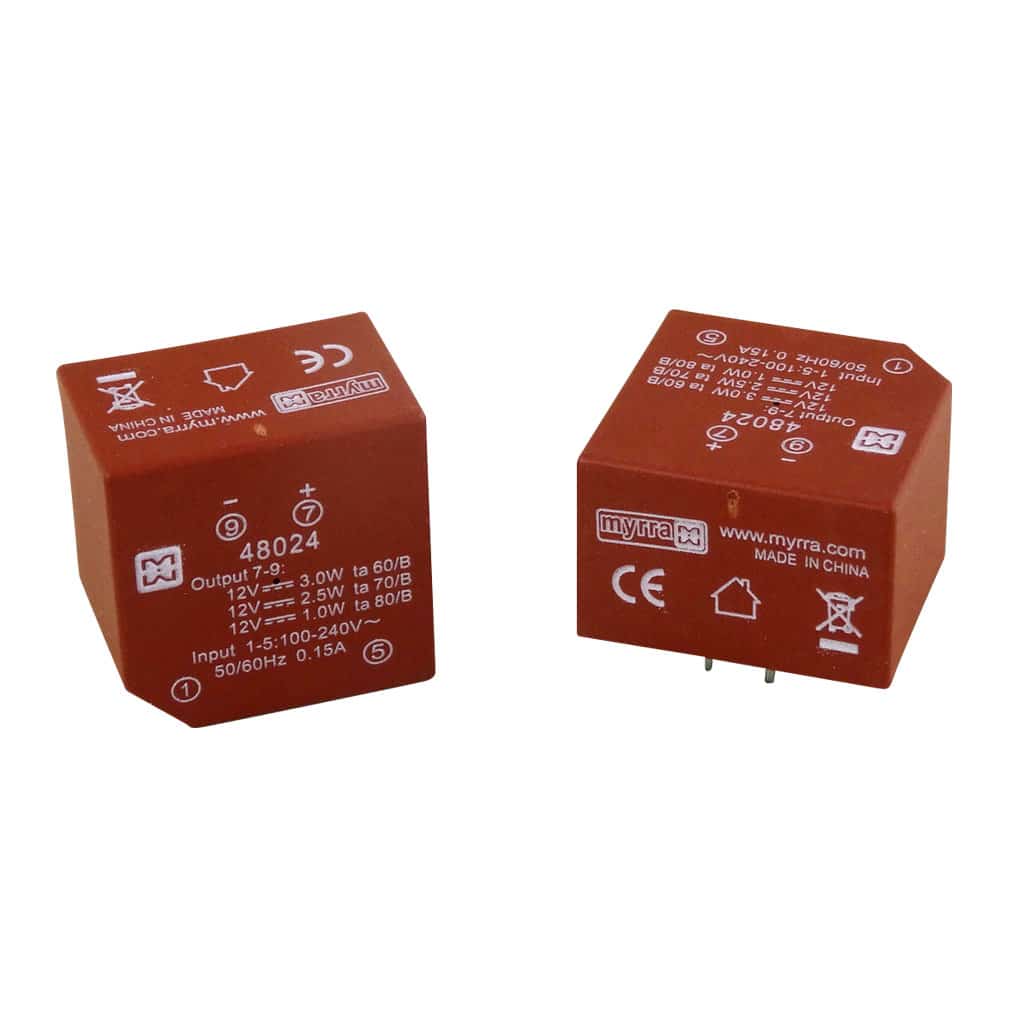

PCB Mount 48000 Series

SKU: 48000 Category: Manufacturer:

Product specs

Weight 16 g
Dimensions 25 × 25 × 16 mm
Input Range

85-265Vac, 120-370Vdc
Output

3.3V, 5V, 9V, 12V, 15V, 18V, 24V
Power

2.75W, 3W
Current

125mA, 170mA, 200mA, 250mA, 330mA, 600mA, 830mA
Min-Max Tamb (°C)

-25°C, +80°C

Product Description

Myrra 48000 Series Power Supplies are single output 1W to 3W – Primary side regulated.

Available from 3.3v to 24v from 1W to 3W based on ambient temperature.

  • 1 to 3W Small Compact Size – PCB Mount
  • Single Output – Primary Side Regulated
  • Output Range : 3.3VDC – 24VDC
  • Input Range : 85VAC – 265VAC/47 – 63Hz Or 120VDC – 370VDC
  • Very Low Standby Power Consumption < 0.15W
  • Better Energetic Efficiency : Meet Requirements Of Energy Star and EC Code Of Conduct
  • Encapsulated Design And Same Footprint As EE20 Transformer: Upgrade Your Application Without Redesign Of PCB
  • Safety : IEC/EN61558-2-16,IEC/EN60950,IEC/EN60335, IEC/EN62368,UL/CUL60950,UL/CUL62368, CE, VDE, ENEC Mark
  • Materials : Uses UL 94-V0 Plastic And Resin
  • EMC : Conducted And Radiated Emissions Conform To EN55032,EN55014 And FCC Part 15, CLASS B
  • Immunity Conform To EN61000-3-2 CLASS A, EN61000-3-3,IEC61000-4-2,IEC61000-4-3,IEC61000-4-4, IEC61000-4-5, IEC61000-4-6, IEC61000-4-11
