REA012864D-01 series 128×64 COG on PCB micro-OLED (0.96″)
Product specs
| Dimensions | 38.0 × 28.5 mm |
|---|---|
| Pixels | 128×64 |
| Interface | I2C, SPI |
| Construction | COG+PCB |
Product Description

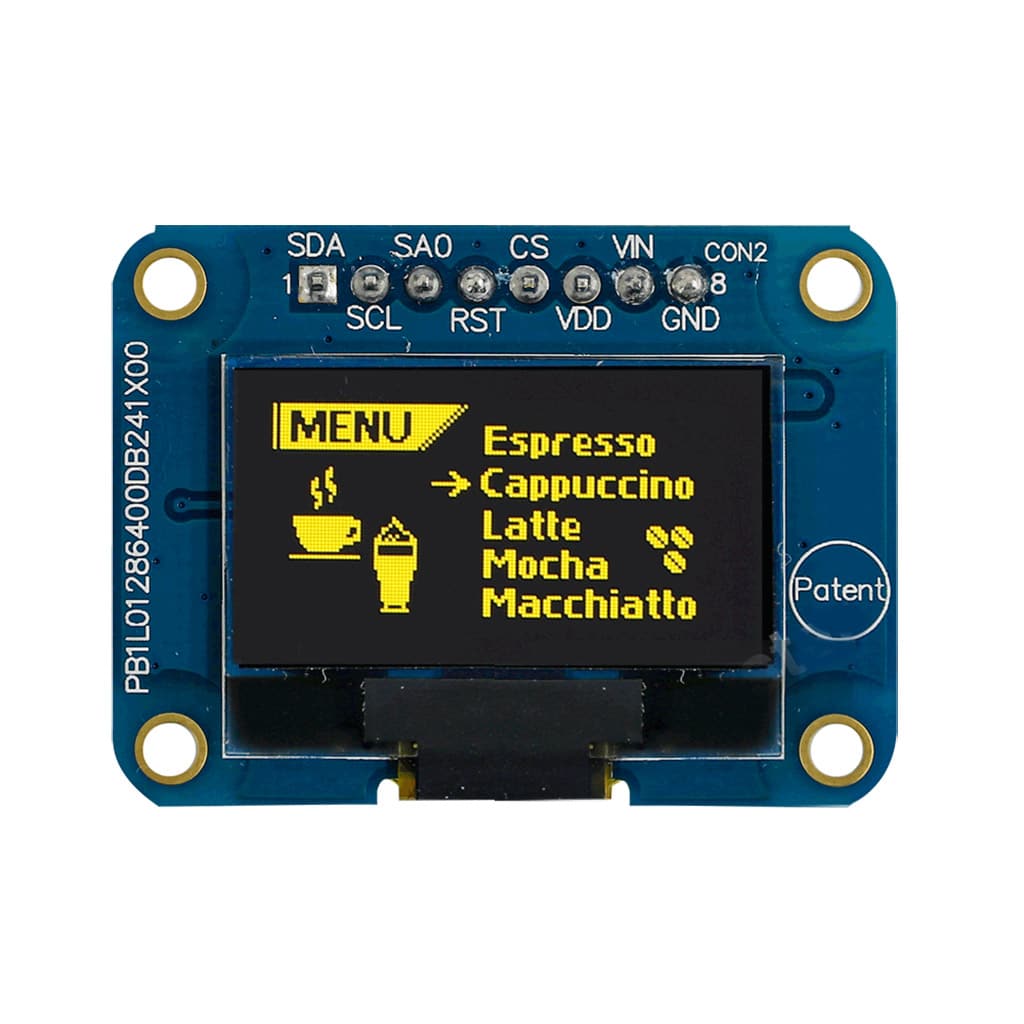

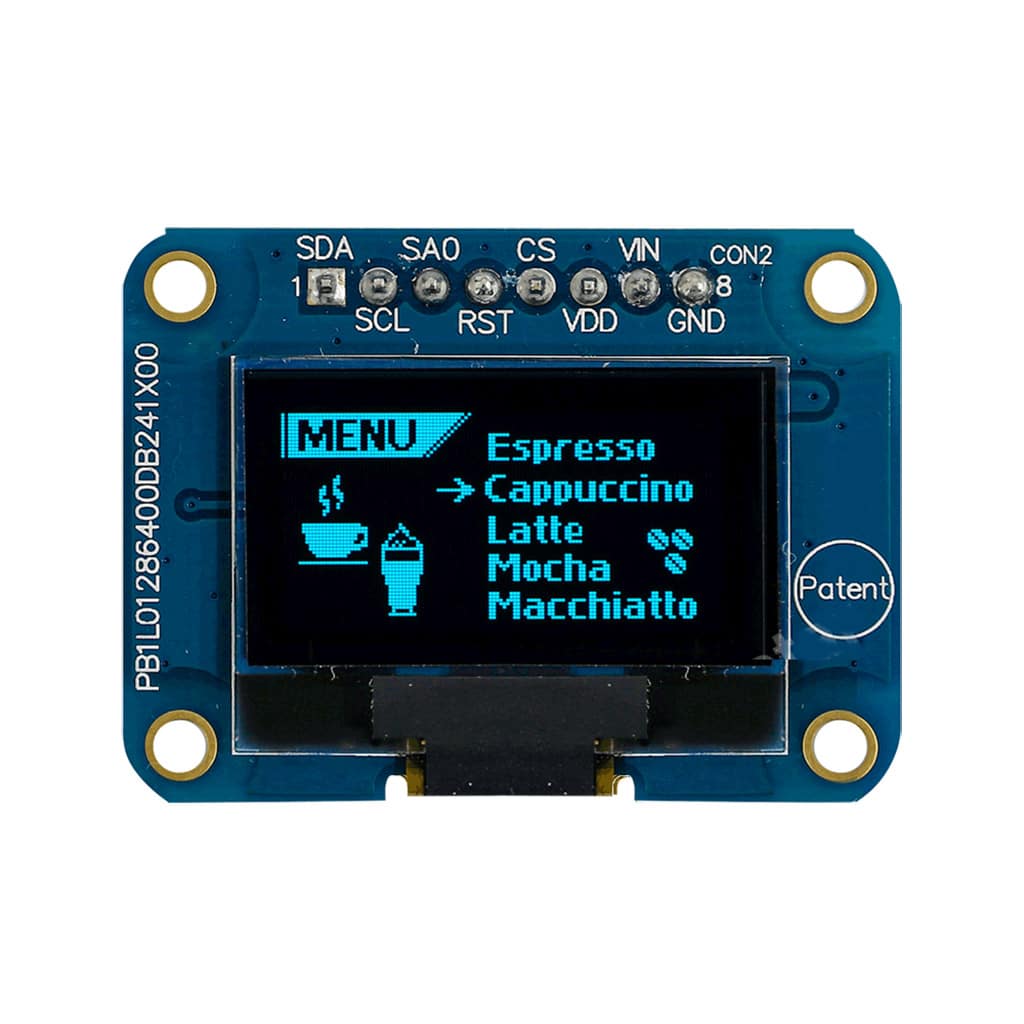

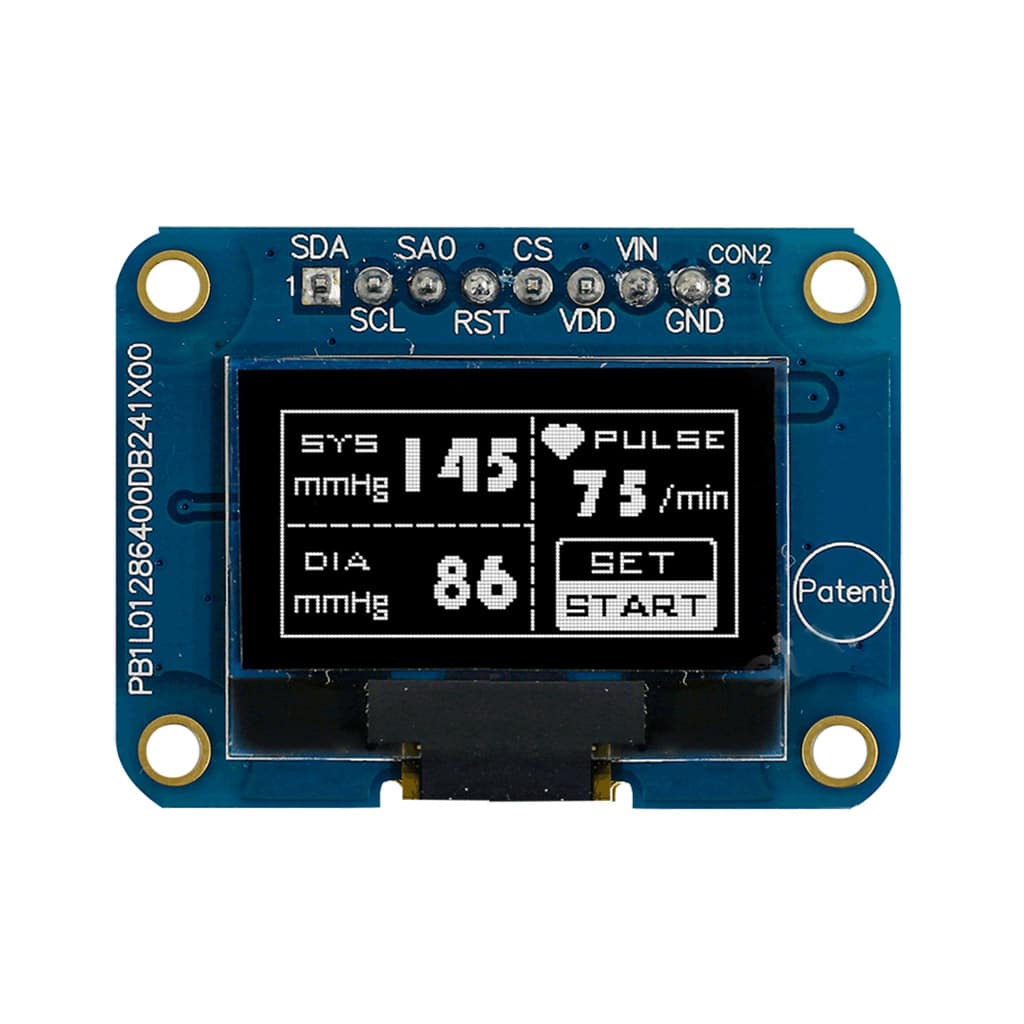

The REA012864D-01 series is a 0.96″ Chip-On-Glass on PCB OLED offering 128×64 pixels, with an active area of 21.74mm x 10.86mm within a viewable area of 23.94mm x 12.06mm, it comes with an integrated SSD1306BZ IC and is available in Blue, White or Yellow.

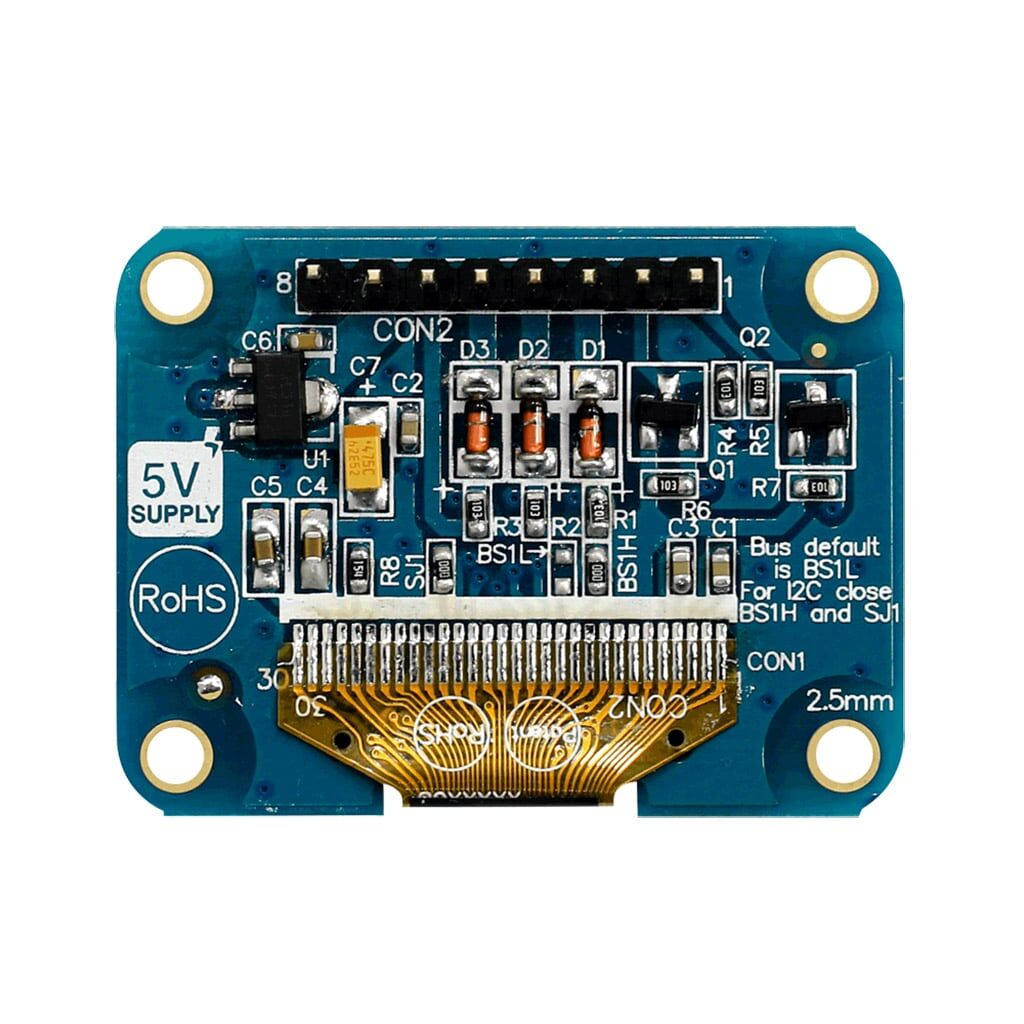

This device is I2C interface, but has the option of SPI
- 128×64 OLED on PCB
- Available in Blue, White or Yellow

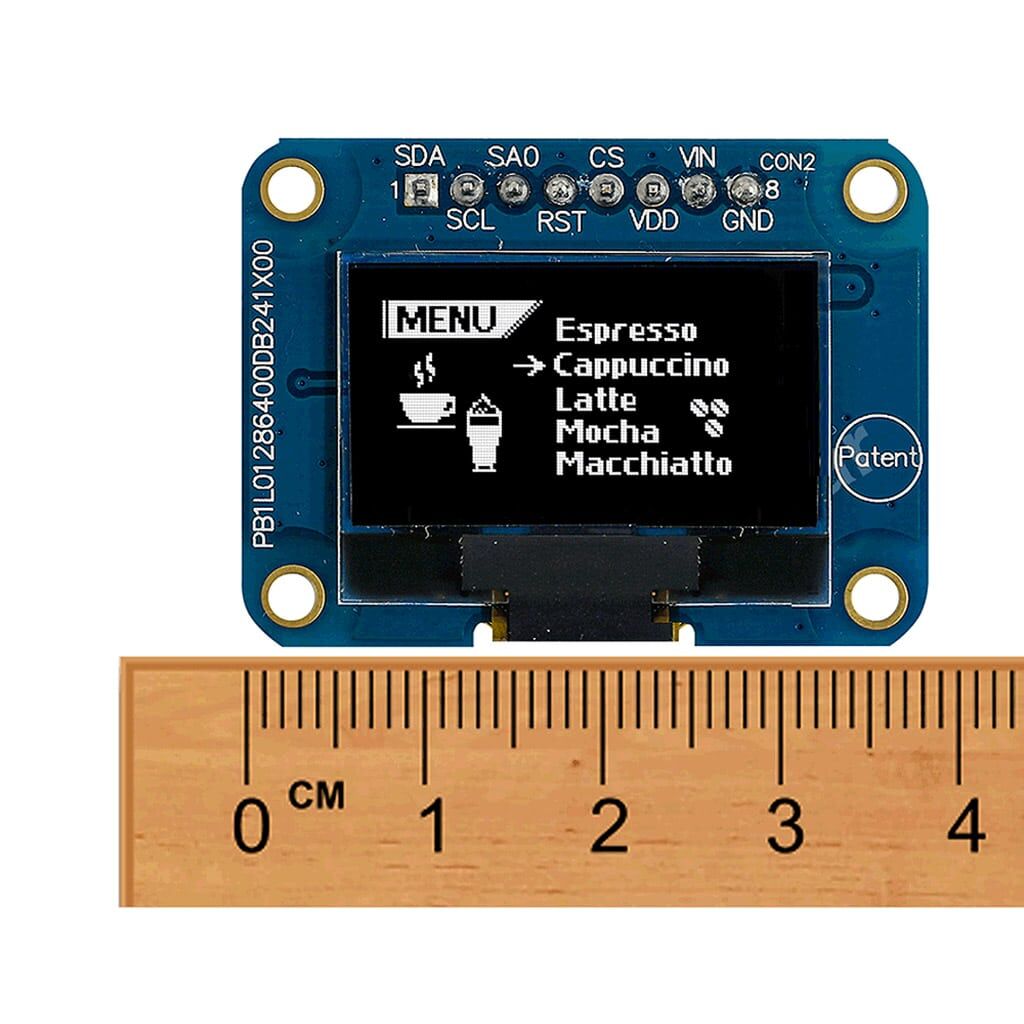

- Dimensions: 38.0mm x 28.5mm
- Viewing Area: 23.94mm x 12.06mm
- Active Area: 21.74mm x 10.86mm
- Dot Size: 0.148mm x 0.148mm
- Dot Pitch: 0.17mm x 0.17mm
- SSD1306BZ IC on-board
- I2C or SPI Interface
- Power Supply: 3V
- Standard Operating Temperature of -40°C to +80°C
