REC002004A series 20×4 Character OLED (98.0mm x 60.0mm)

SKU: REC002004A Categories: , , Manufacturer:
Download PDF

Product specs

Dimensions 98 × 60 mm
Characters

20×4
Emitting Colour

Blue, Green, White, Yellow
Interface

6800, 8080, SPI
Construction

COB

Product Description

The REC002004A series Chip-On-Board Passive Matrix OLED offers 20×4 characters .With an active area of 70.16mm x 20.95mm within a viewable area of 77.0mm x 25.2mm

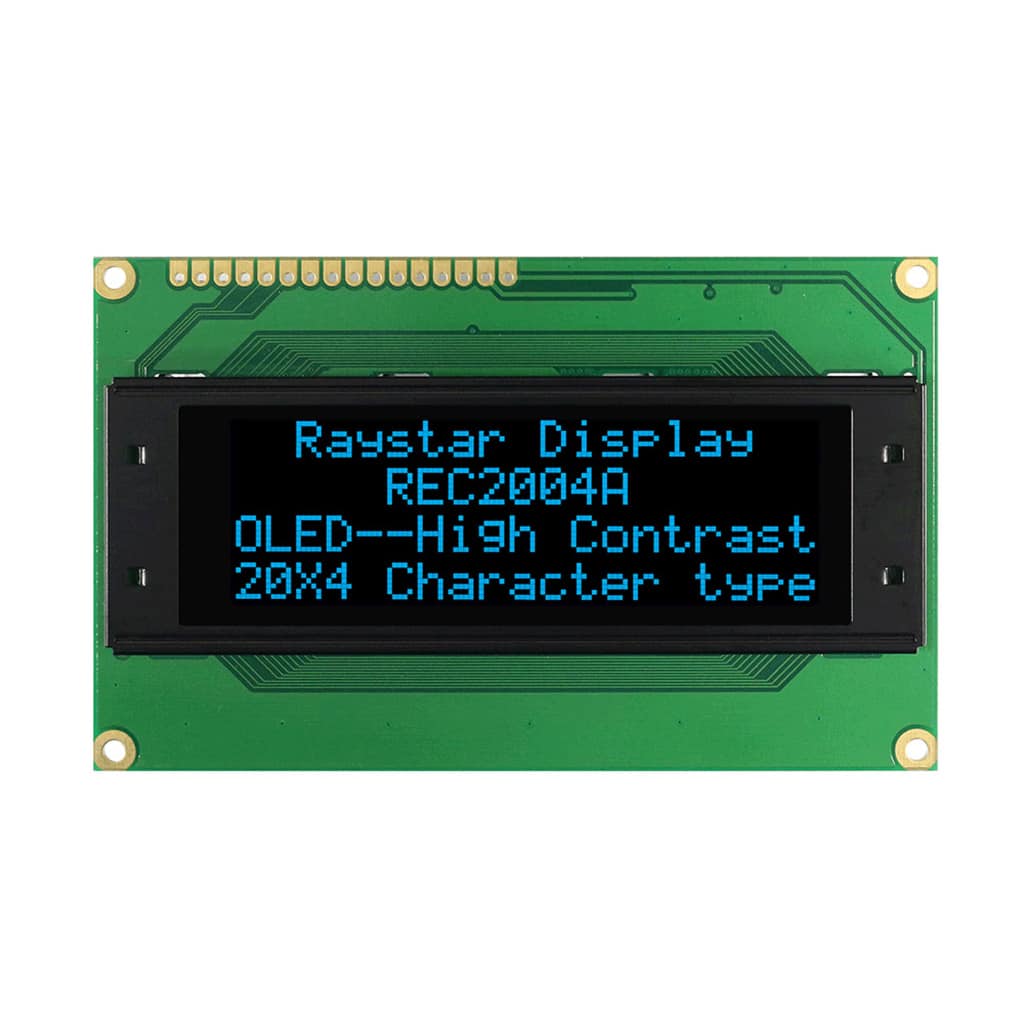

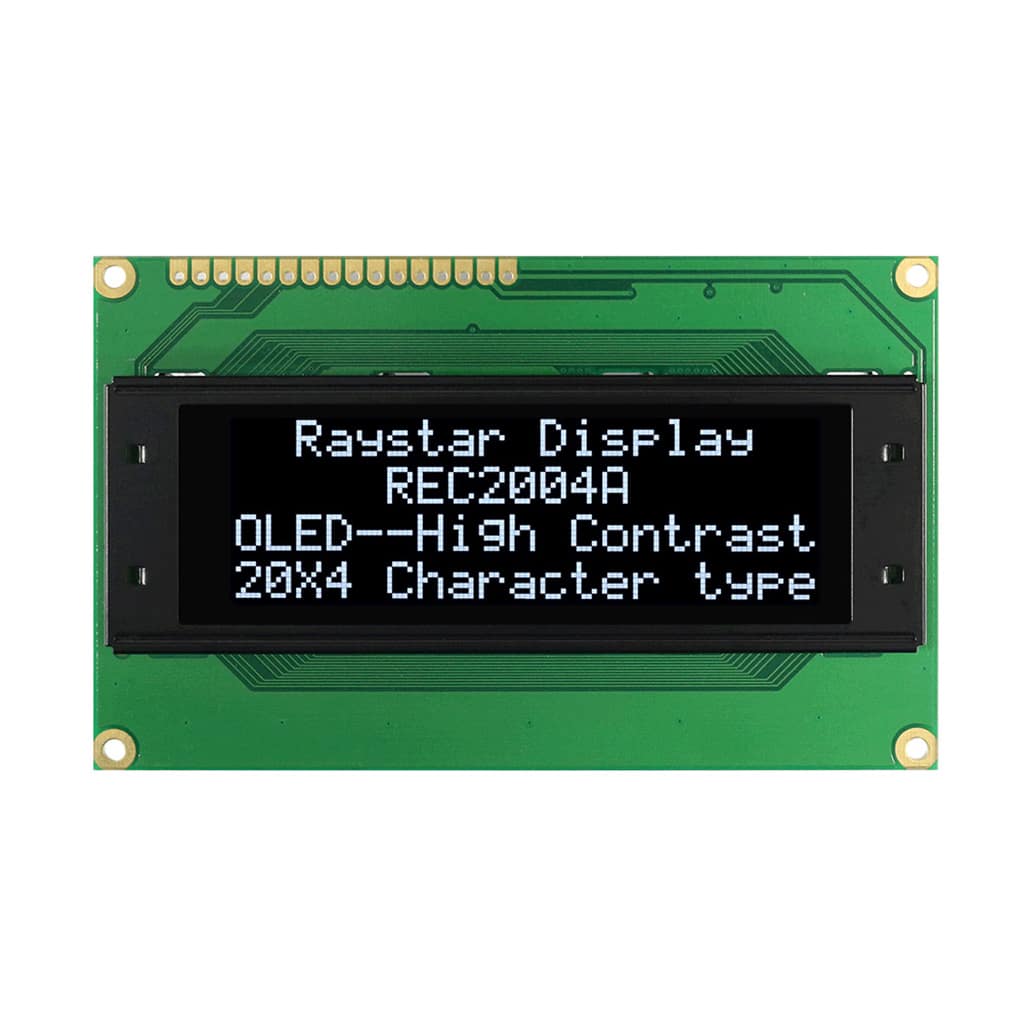

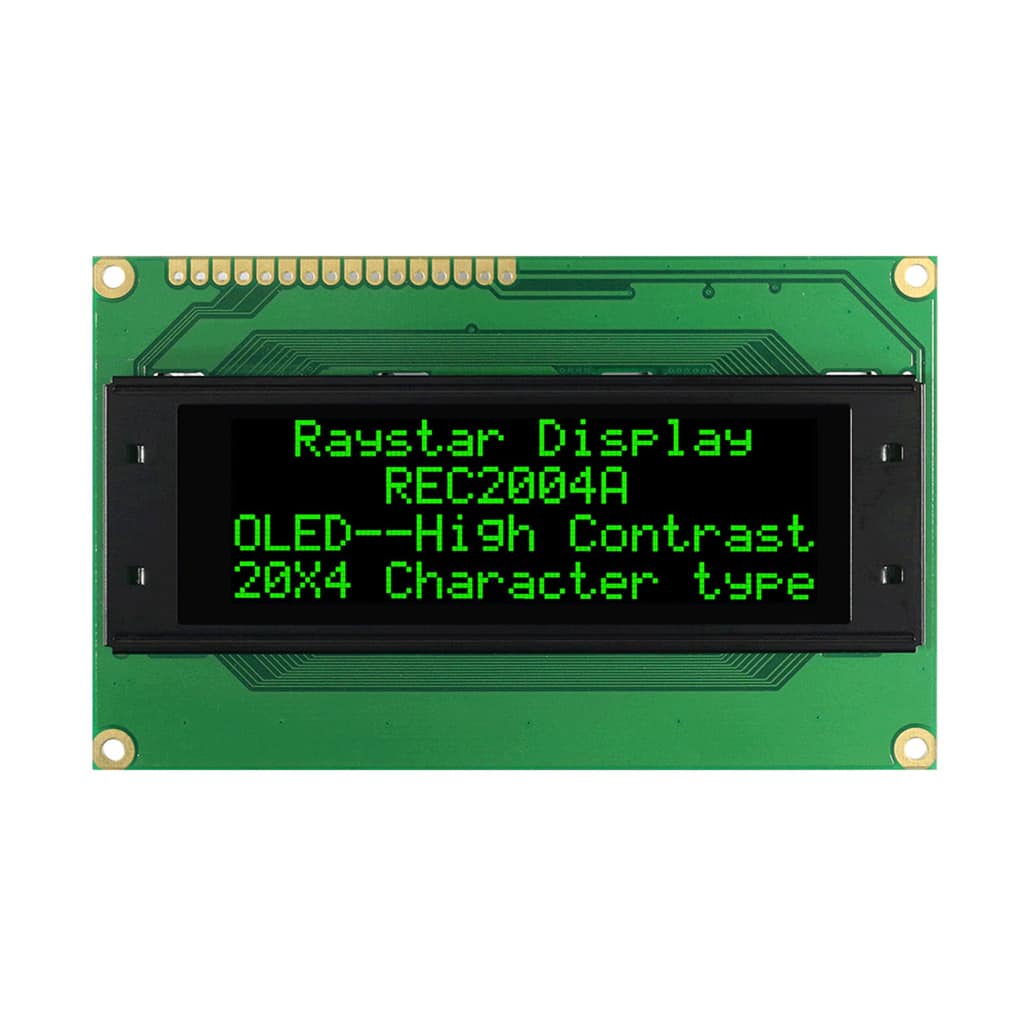

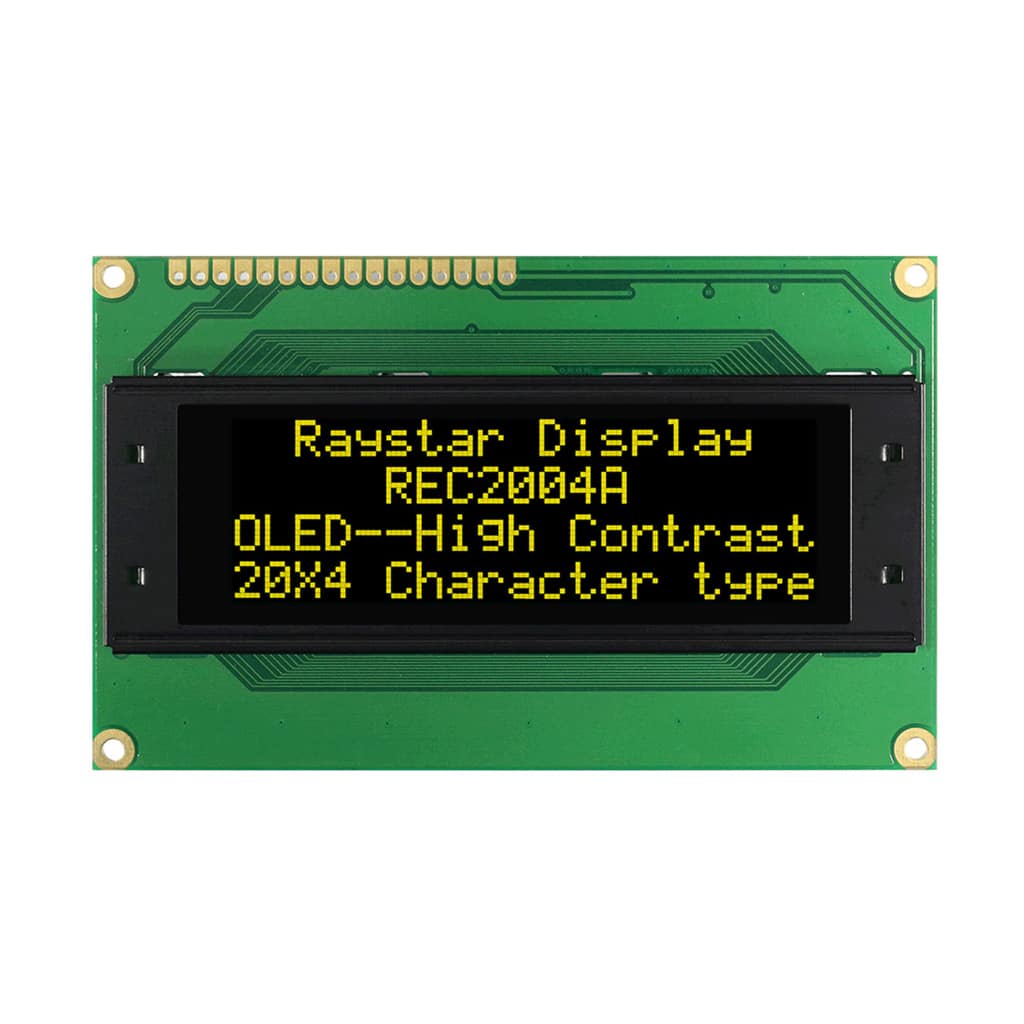

Available in a choice of Blue, Green, White or Yellow

The onboard RS0010 also allows for 4 font sets, these are English/Japanese, West European, Scandinavian European, and Cyrillic







  • 20×4 Chip-On-Board OLED
  • Dimensions: 98.0mm x 60.0mm
  • Viewing Area: 77.0mm x 25.2mm
  • Fast Response Times
  • High Contrast
  • 175° Viewing Angles
  • IC: RS0010 (multiple languages)
  • Standard Operating Temperature of -40°C to +80°C
