REG010016E series 100×16 COB OLED (84.0mm x 44.0mm)
Product specs
| Dimensions | 84 × 44 mm |
|---|---|
| Pixels | 100×16 |
| Interface | 6800, 8080, SPI |
| Construction | COB |
Product Description

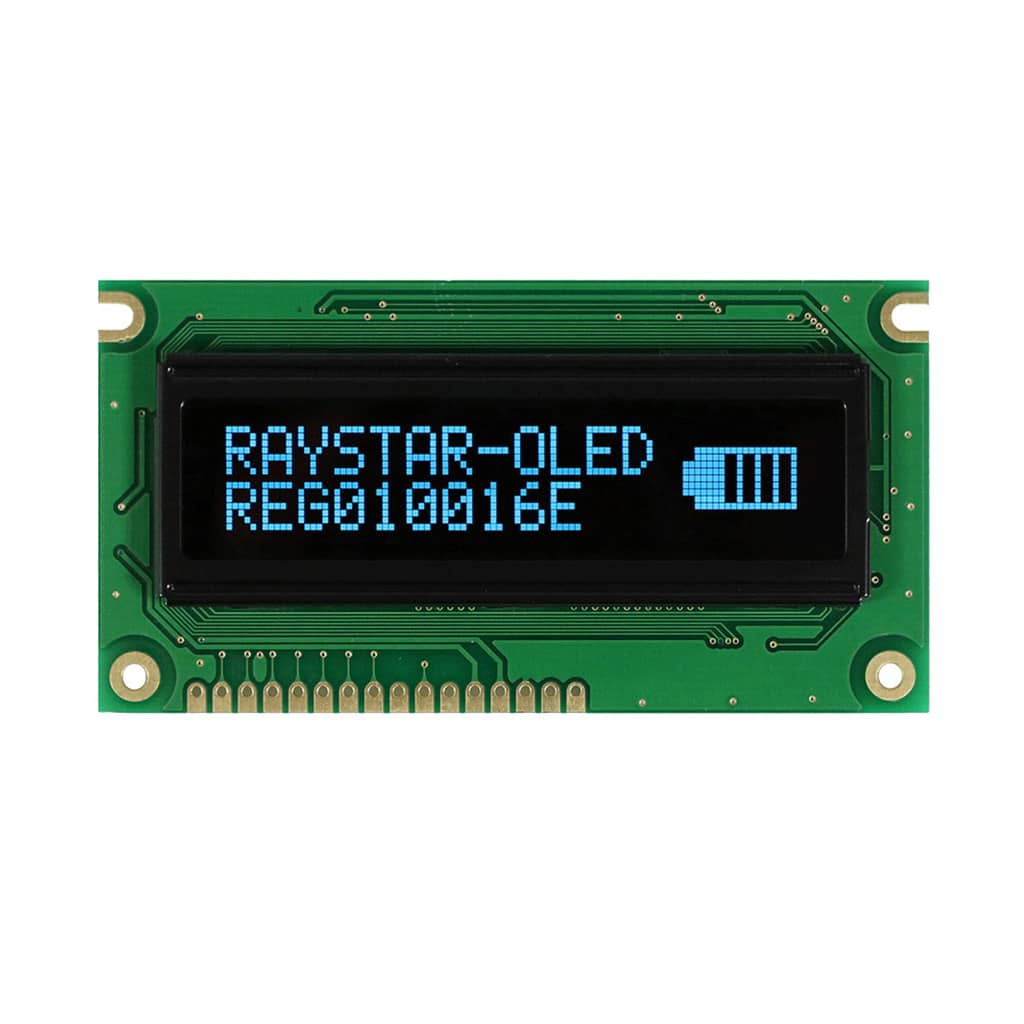

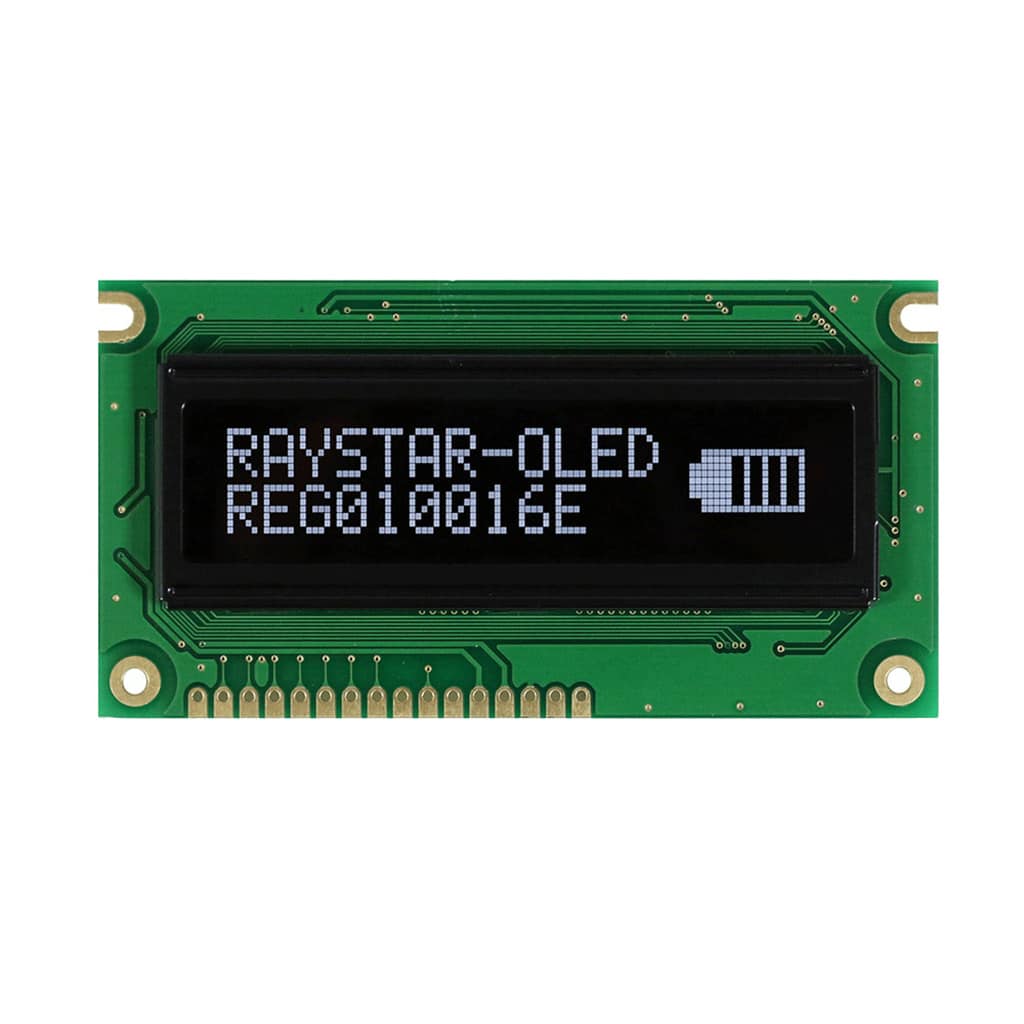

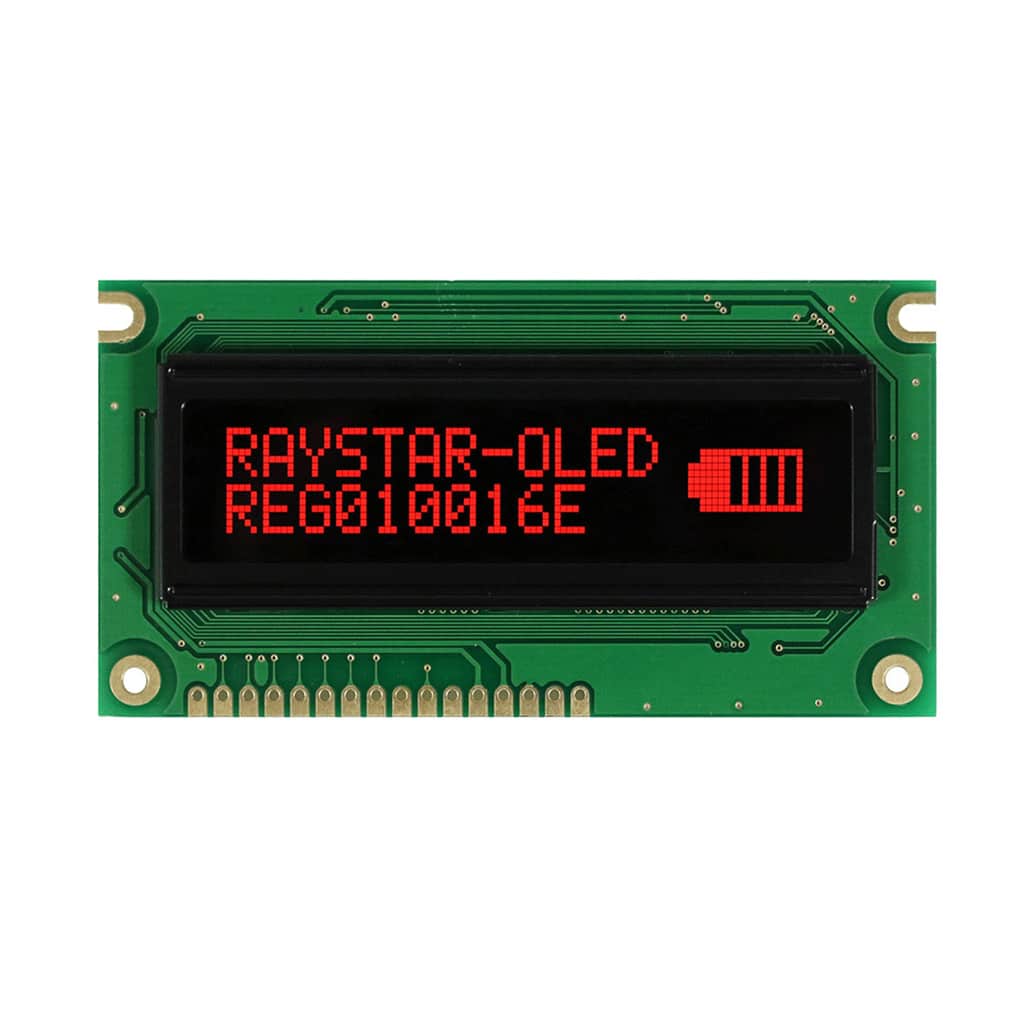

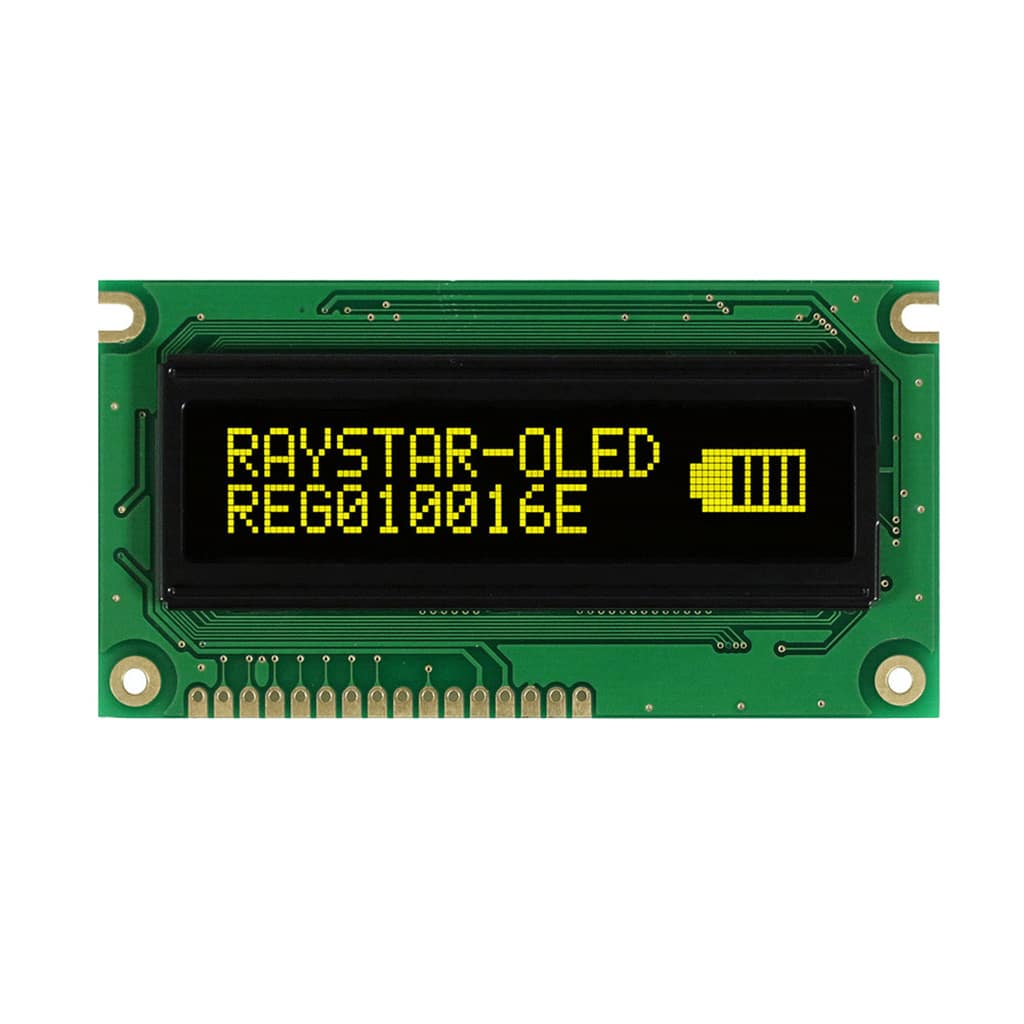

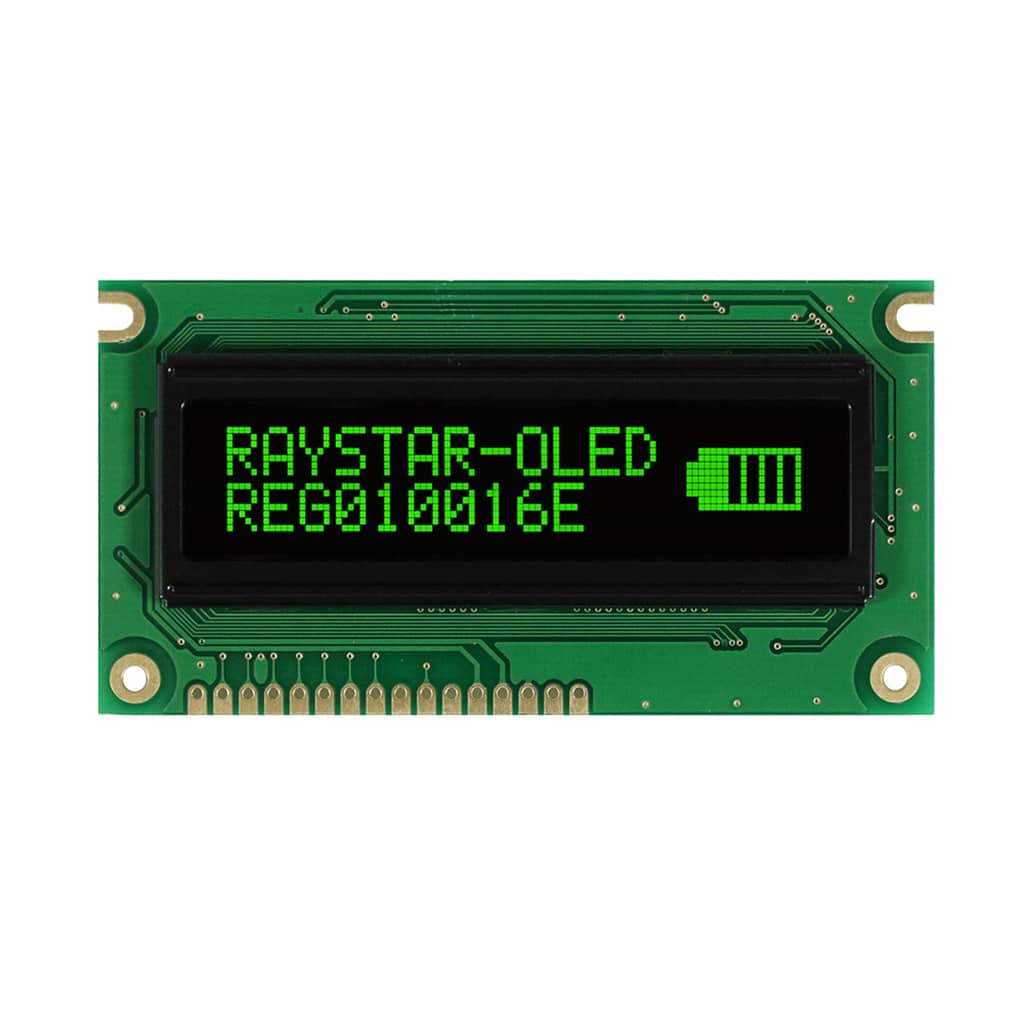

The REG010016E series is a Chip-On-Board OLED offering 100×16 pixels, with an active area of 59.95mm x 11.15mm within a viewable area of 66.0mm x 16.0mm, it comes with an integrated RS0010 IC, and is available in Blue, Green, White or Yellow
This graphic display has the same footprint as the character based REC001602E series (OLED) and also the RC1602A series (LCD)
- 100×16 Graphic OLED
- Available in Blue, Green, White or Yellow
- Dimensions: 84.0mm x 44.0mm
- Viewing Area: 66.0mm x 16.0mm
- RS0010 IC on-board
- Standard Operating Temperature of -40°C to +80°C
