REX012832K series 128×32 COG OLED 59.0mm x 18.86mm (2″)
Product specs
| Dimensions | 59.0 × 18.86 mm |
|---|---|
| Pixels | 128×32 |
| Interface | 6800, 8080, I2C, SPI |
| Construction | COG |
Product Description

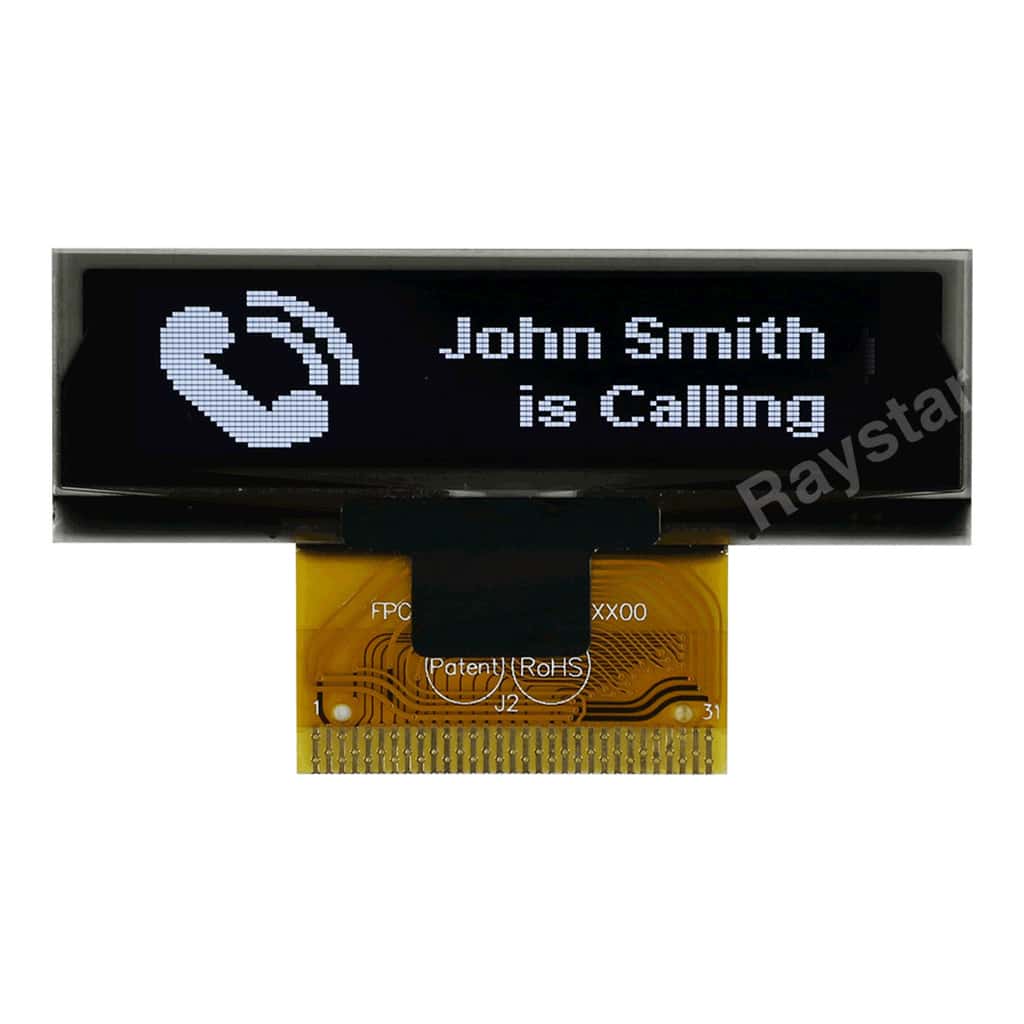

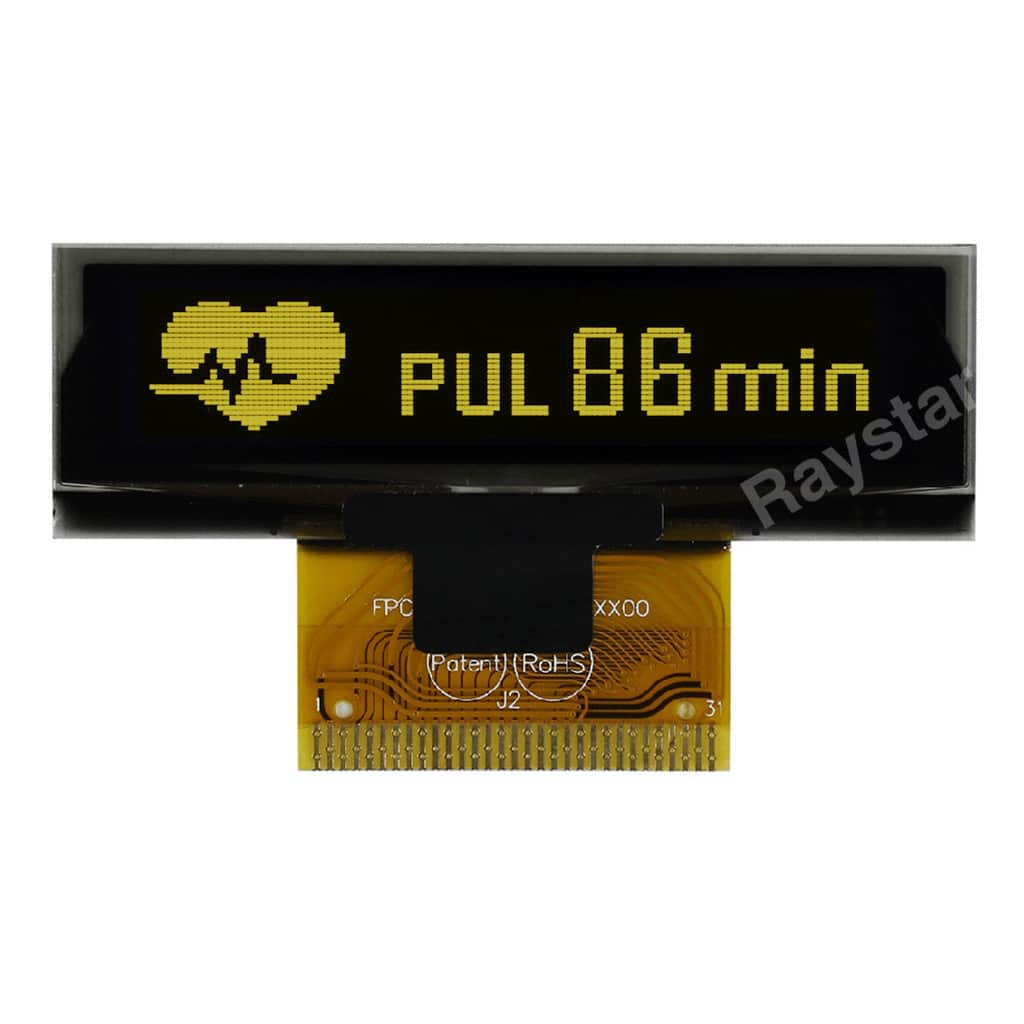

The REX012832K series is a Chip-On-Glass OLED offering 128×32 pixels within a 52.535mm x 12.695mm viewable area, it comes with an integrated SSD1315 IC, and is available in White or Yellow. This device has a choice of 6800, 8080, SPI or I2C interface
- 128×32 Graphic OLED
- Size: 2″
- Available in White or Yellow
- Dimensions: 59.0mm x 18.86mm
- Viewing Area: 52.535mm x 12.695mm
- Active Area: 50.535mm x 10.695mm
- Dot Size: 0.37mm x 0.31mm
- Dot Pitch: 0.395mm x 0.335mm
- 6800, 8080, I2C or SPI Interface
- Power Supply: 3V
- IC: SSD1315
- Standard Operating Temperature of -40°C to +80°C
