Right Angle Pin Header – DS1022 – Series

SKU: DS1022- Categories: , , Manufacturer:
Download PDF

Product specs

Number of Pins

2, 3, 4, 5, 40
Number of Rows

1, 2
Orientation

Straight, Right Angle

Product Description

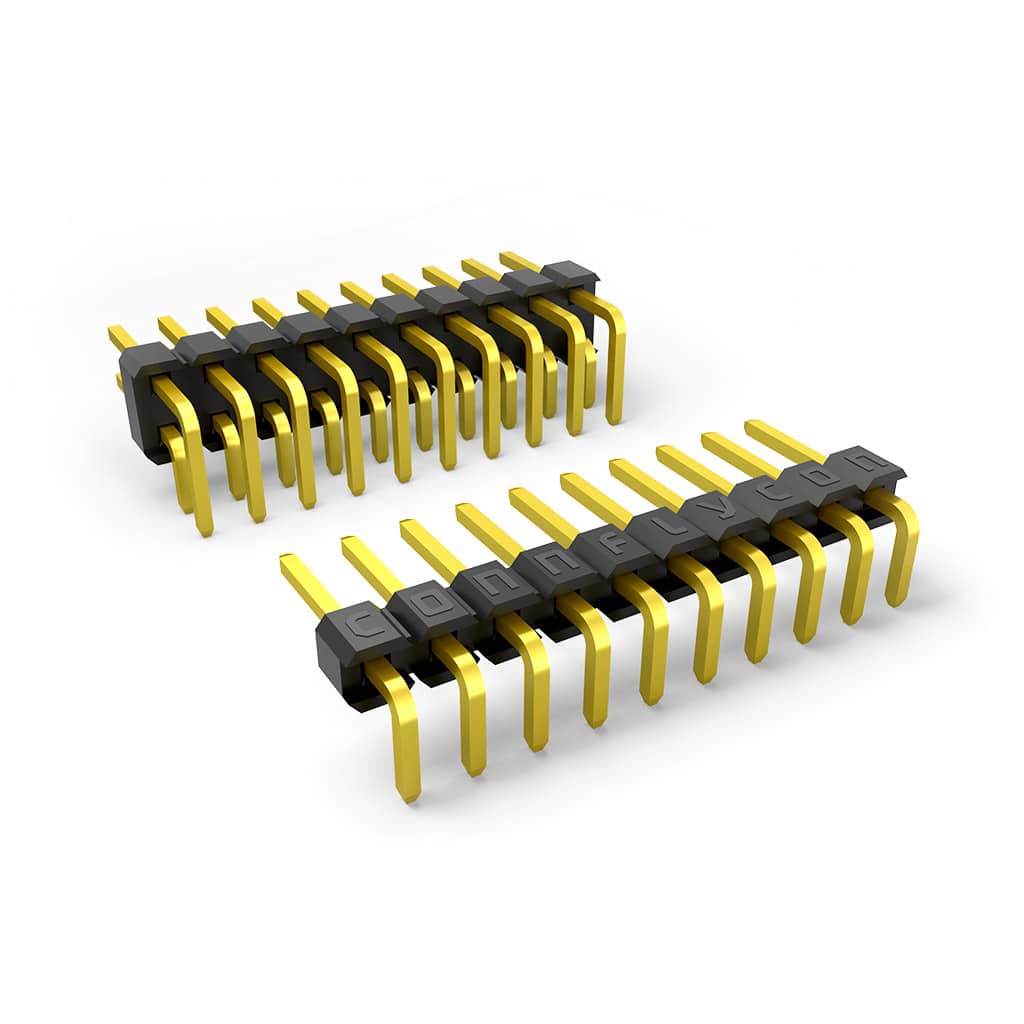

The DS1022 is a right angle Pin Header from Connfly. The quality gold plated header is used for connecting PCB’s or a stable connection for wire. Available in single or double row, with up to 40 way configurations. The Thermoplastic housing is UL 94V-0 rated. Used with the DS1027 range of Mini Jumpers. SMD options available please ask for details.

  • Contact – Copper Alloy/ Gold Plated
  • Housing – Thermoplastic (UL 94V-0)
  • Temperature Range  -40C + 105C
  • Contact Resistance – 20mΩ max
  • Insulation Resistance – 1000mΩ max
  • Current Rating – 3A
