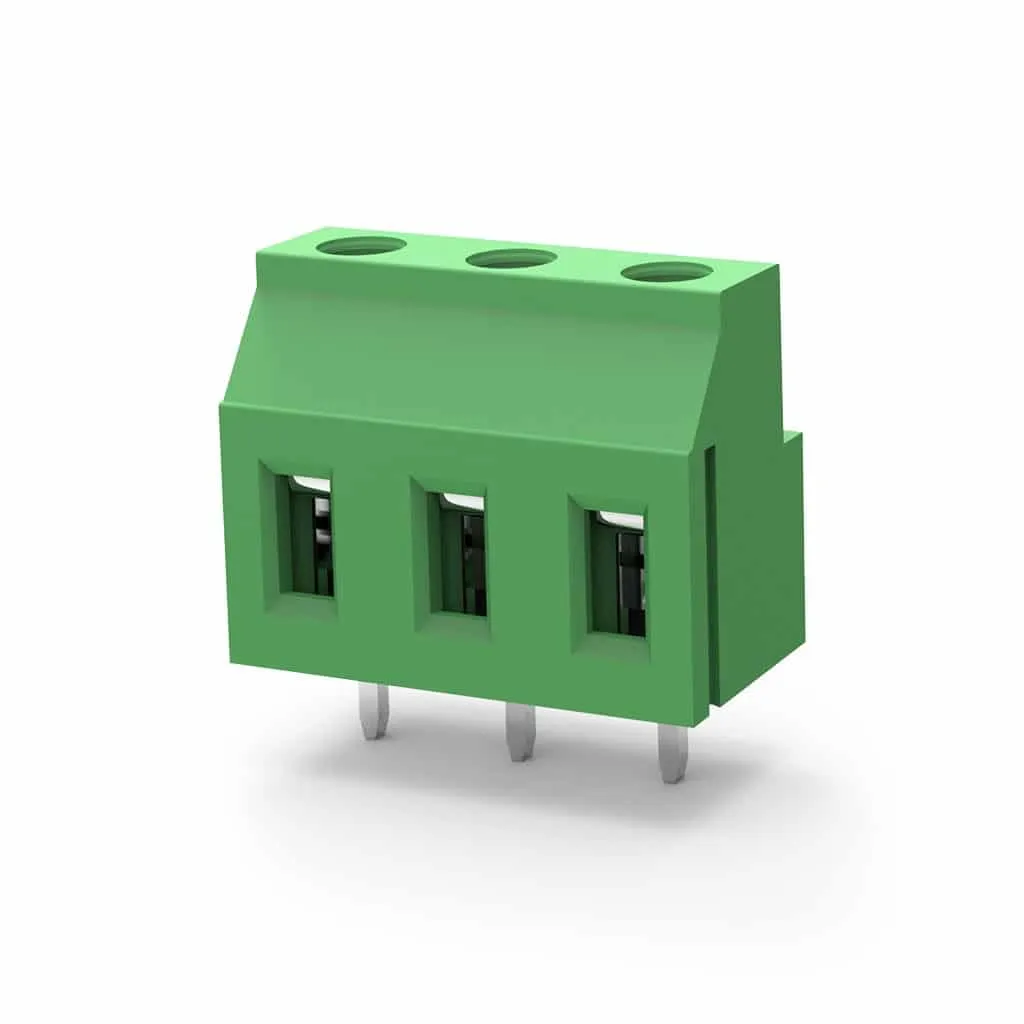

Rising Clamp , 7.62mm Pitch – DG130-7.62-xxP-1400AH
Product specs
| Height | 18mm |
|---|---|
| Pitch | 7.62mm |
| Wire Orientation | Horizontal |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 |
| Clamp Type | Rising Clamp |
| Colour | Green |
Product Description
DG130-7.62 product is available with multiple poles and different colours upon request. Product is interlocking so any number of poles can be made up with a 2 & 3 way combination.
Dg130 series is both UL (E228872) & VDE (40022088) approved and with the highest V0 flammability rating.
- Pitch 7.62mm
- 18mm High – 11.2mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw – M3 slotted
- Torque – 3.5 lb/In
- UL File number E228872 – 12-26 Awg – 20A @ 300v
- VDE File number 40022088 – 0.5-2.5mm2 – 20A @ 250v
- Interlocking device
- Colour Green as standard
