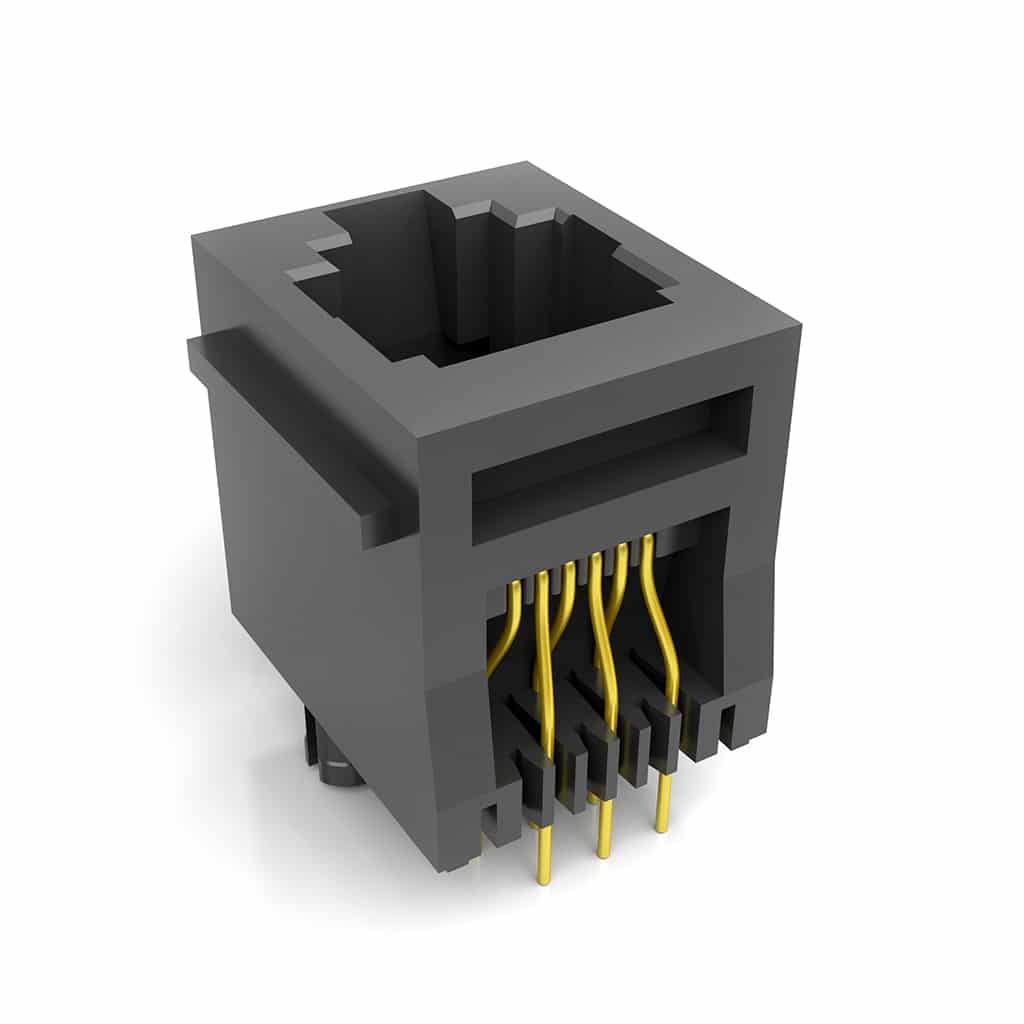

RJ 6P Socket – DS1133-02 – Series
Product specs
| Type | 6P4C, 6P6C |
|---|---|
| Orientation | Vertical |
Product Description
The DS1133-02 is a RJ 6P socket from Connfly. The quality vertical socket has a PBT – Glass Fibre UL 94V-0 flangeless housing with Gold Plated contacts. 16.38mm height. Available in both RJ11 6P4C and RJ12 6P6C
- RJ 6P Female
- Contact – Copper Alloy/ Gold Plated
- Housing – PBT/Glass fibre (UL 94V-0)
- Temperature Range -40C + 85C
- Contact Resistance – 20mΩ max
- Insulation Resistance – 1000MΩ min
- Current Rating – 1.5A
- Voltage Rating – 125V
