RJ 8P Socket – DS1134-05 – Series
Product specs
| Type | 8P8C |
|---|---|
| Orientation | Right Angle |
Product Description

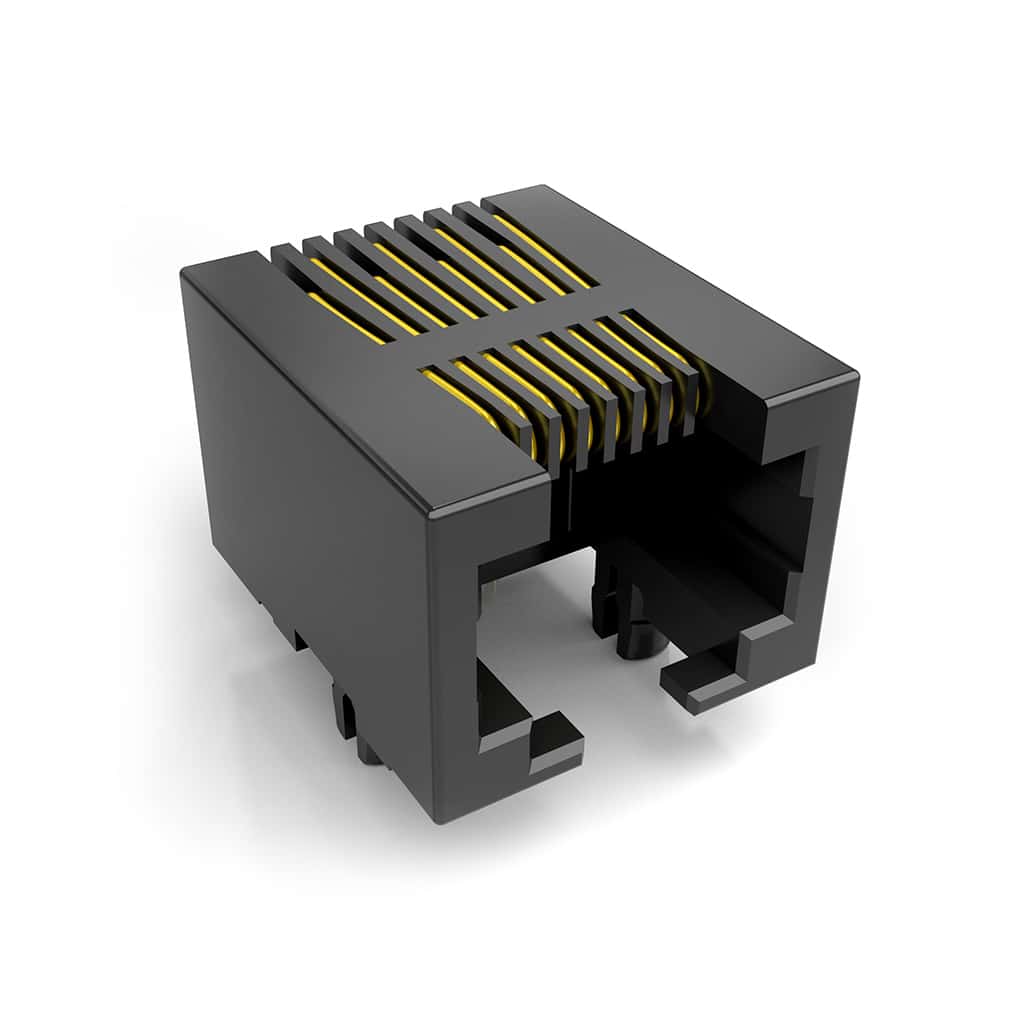

The DS1134-05 is a RJ45 8P8C socket from Connfly. The quality right angle socket has a PBT/Glass Fibre UL 94V-0 flangeless housing with Gold Plated contacts. 18.00mm length.
- RJ 8P Female
- Contact – Copper Alloy/ Gold Plated
- Housing – PBT/Glass Fibre (UL 94V-0)
- Temperature Range -40C + 85C
- Contact Resistance – 20mΩ max
- Insulation Resistance – 1000MΩ min
- Current Rating – 1.5A
- Voltage Rating – 125V
