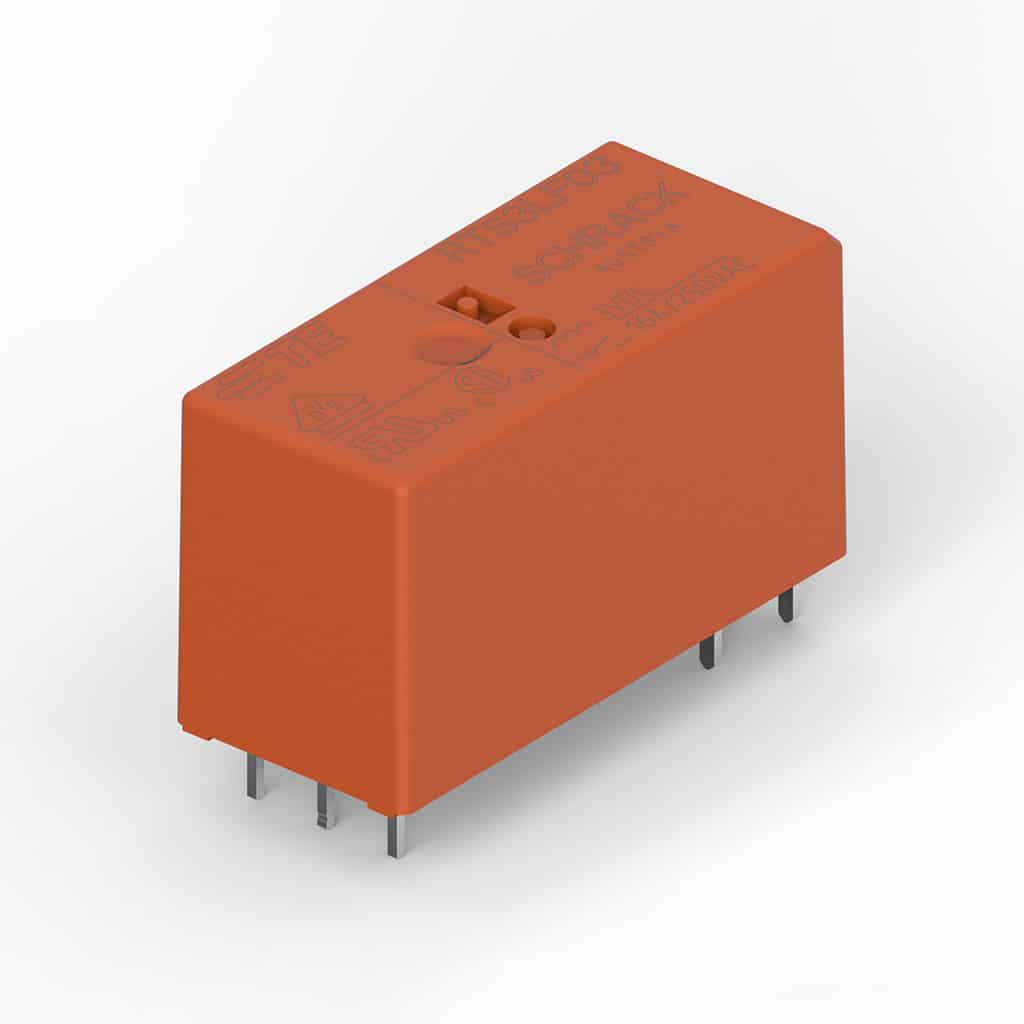

RT2 Bistable Double Pole 8a Power Relay

SKU: RT2 Bistable Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

3Vdc, 5Vdc, 6Vdc, 12Vdc, 24Vdc, 48Vdc
Contact Arrangement

DPDT (2CO) -2 Form C
Coil Type

1 Coil Latching, 2 Coil Latching
Contact Rating (Amps)

8A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgNi 90/10
Coil Resistance (Ohm)

15Ω, 21Ω, 240Ω, 3291Ω, 42Ω, 5520Ω, 886Ω, 55Ω, 62Ω, 90Ω, 360Ω, 1440Ω
Mounting

PCB
Type

Power Relay

Product Description

Easby Electronics offer the RT2 bistable (latching) relay with 8a contacts.

1 pole variant available under the RT1 bistable in 12a & 16a contacts.

  • 2 pole 8A, 2 form C (CO) contacts

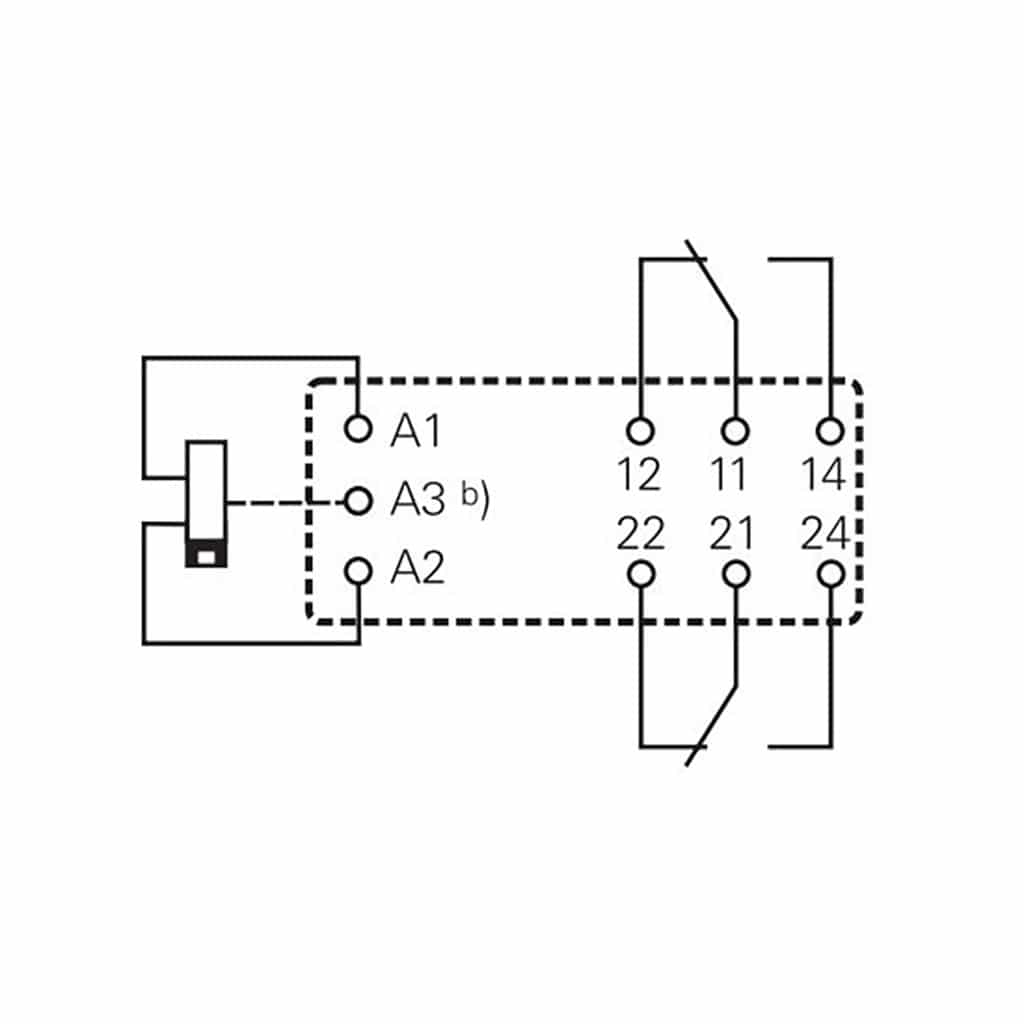

  • Polarized bistable version with 1 or 2 coils
  • 5kV/10mm coil-contact
  • Reinforced insulation
