RZ - Single Pole 12a & 16a Power Relay
RZ - Single Pole 12a & 16a Power Relay - Image 2
RZ - Single Pole 12a & 16a Power Relay - Image 3
RZ - Single Pole 12a & 16a Power Relay - Image 4
RZ - Single Pole 12a & 16a Power Relay - Image 5
RZ - Single Pole 12a & 16a Power Relay - Image 6
RZ - Single Pole 12a & 16a Power Relay - Image 7

RZ – Single Pole 12a & 16a Power Relay

SKU: RZ Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

3Vdc, 5Vdc, 6Vdc, 9Vdc, 12Vdc, 15Vdc, 24Vdc, 48Vdc
Contact Arrangement

SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C
Coil Type

Non Latching
Contact Rating (Amps)

12A, 16A
Sealing

Flux Proof
Contact Material

AgNi 90/10, AgSnO2
Coil Resistance (Ohm)

200Ω, 22Ω, 562Ω, 5730Ω, 60Ω, 90Ω, 360Ω, 1440Ω
Mounting

PCB
Type

Power Relay

Product Description

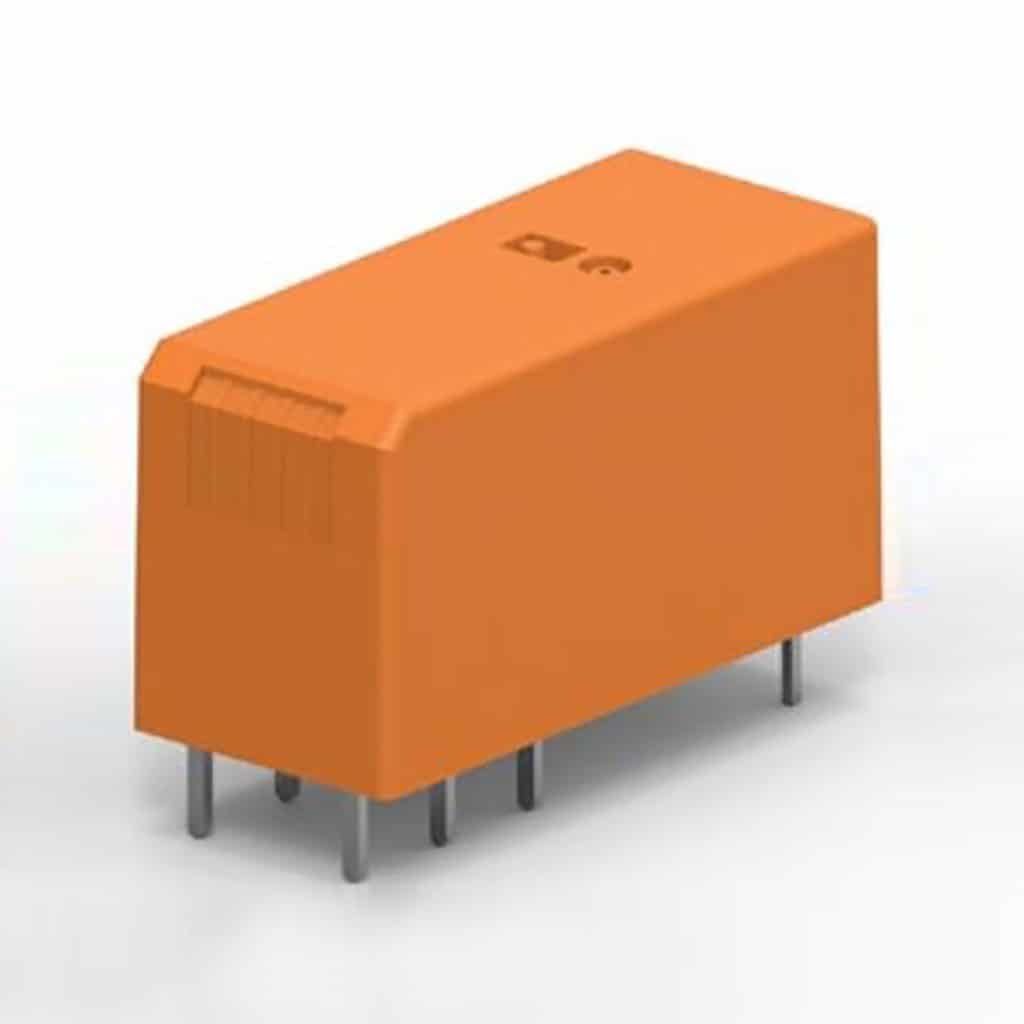

The RZ series from TE Connectivity is a single pole relay offering 12 and 16amp contacts.

The RZ series is also available in a reflow THR version.

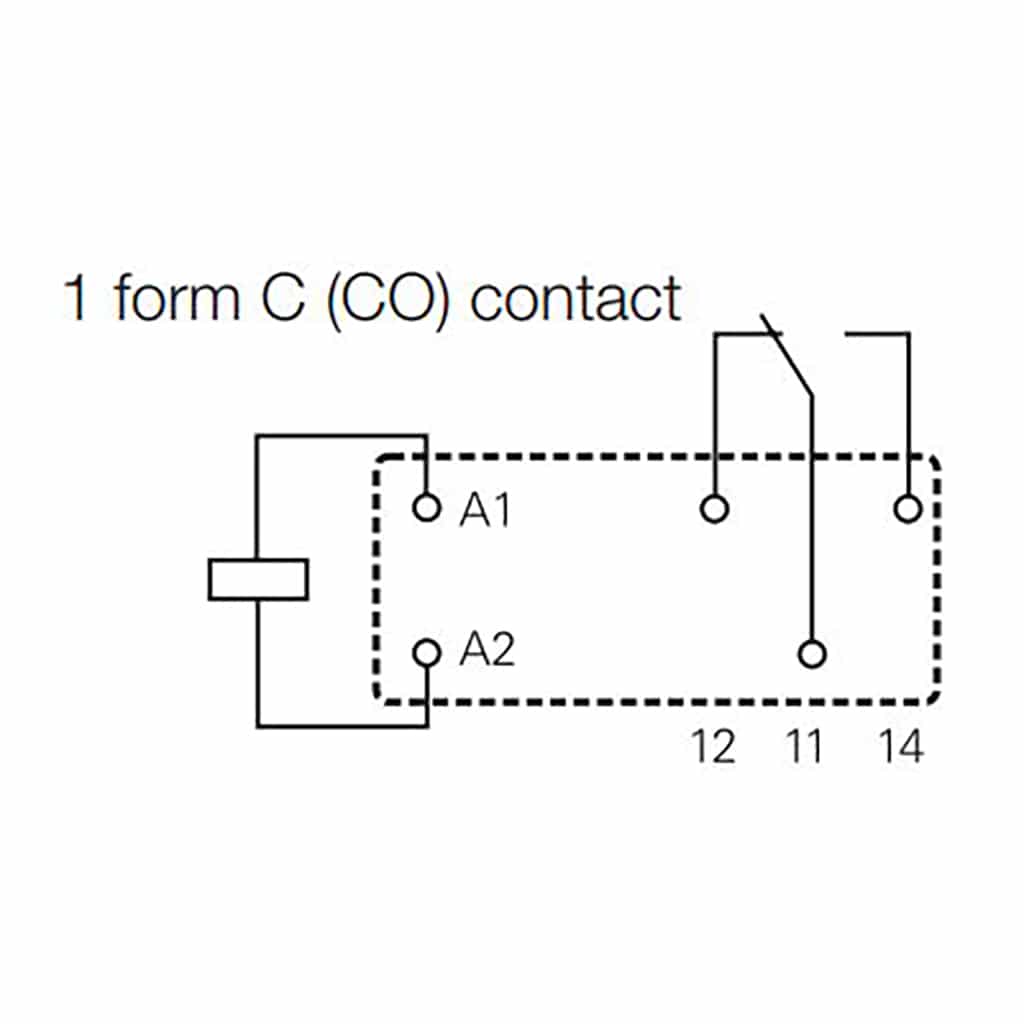

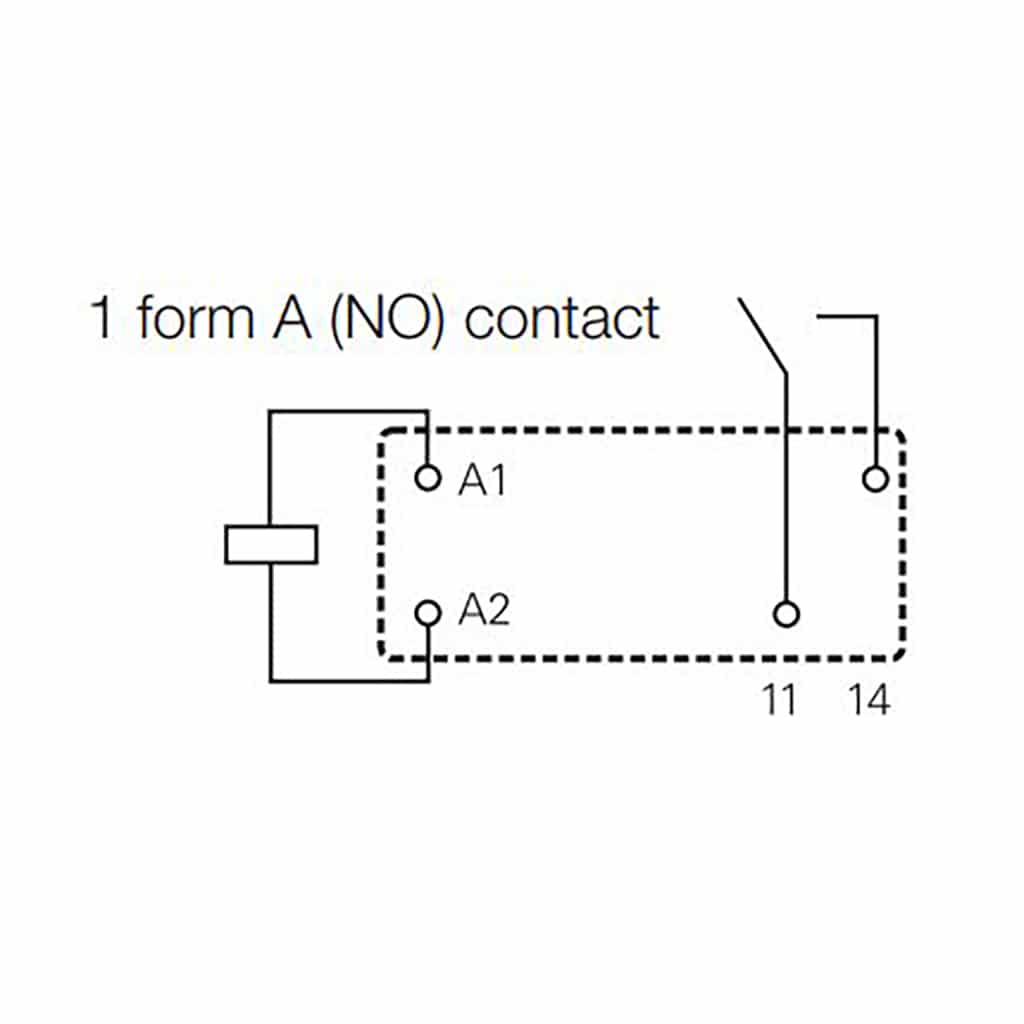

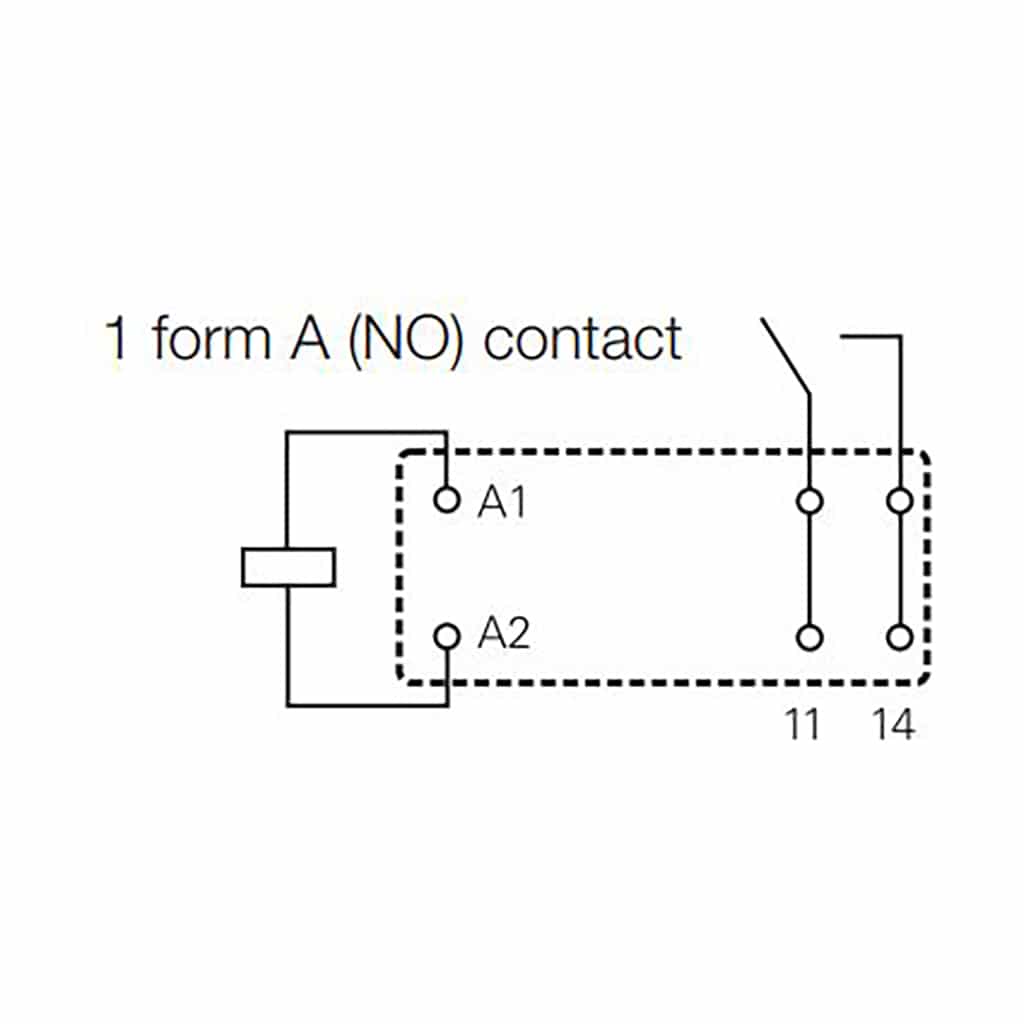

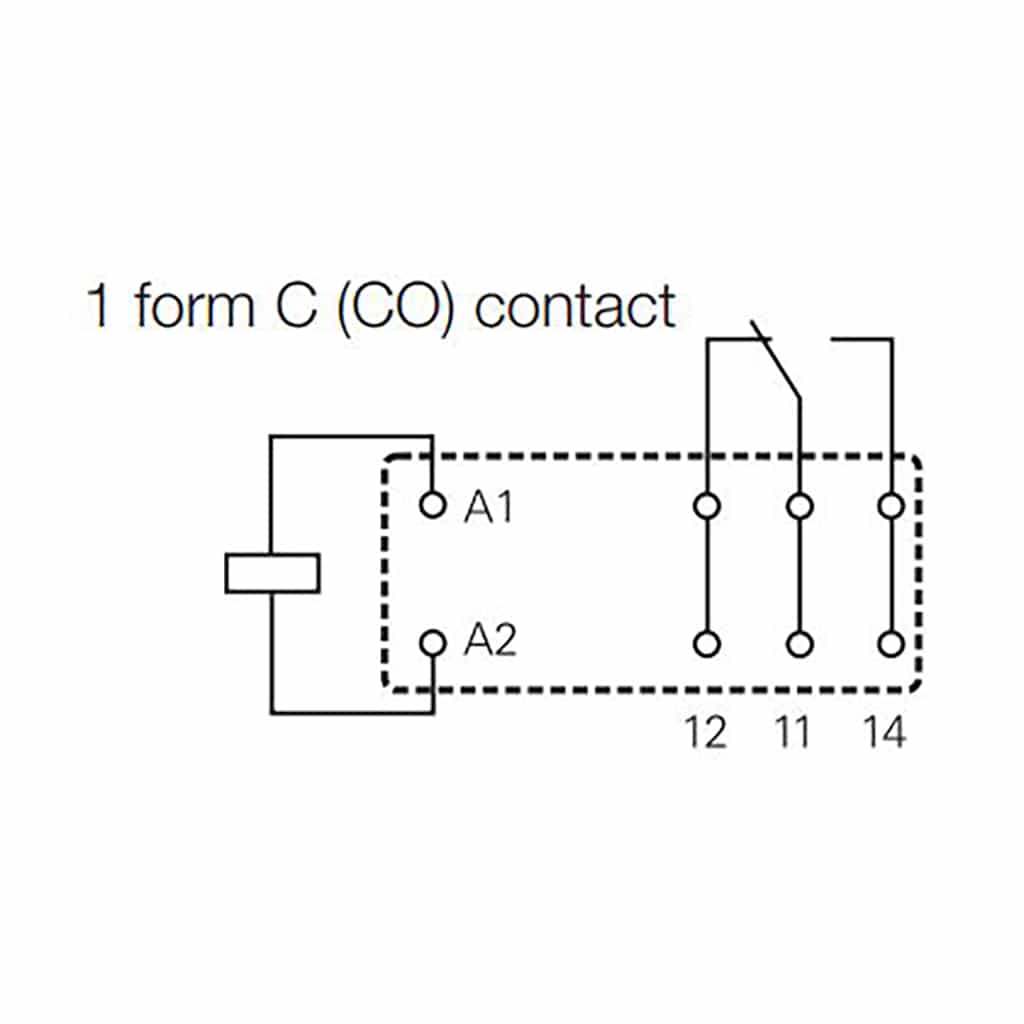

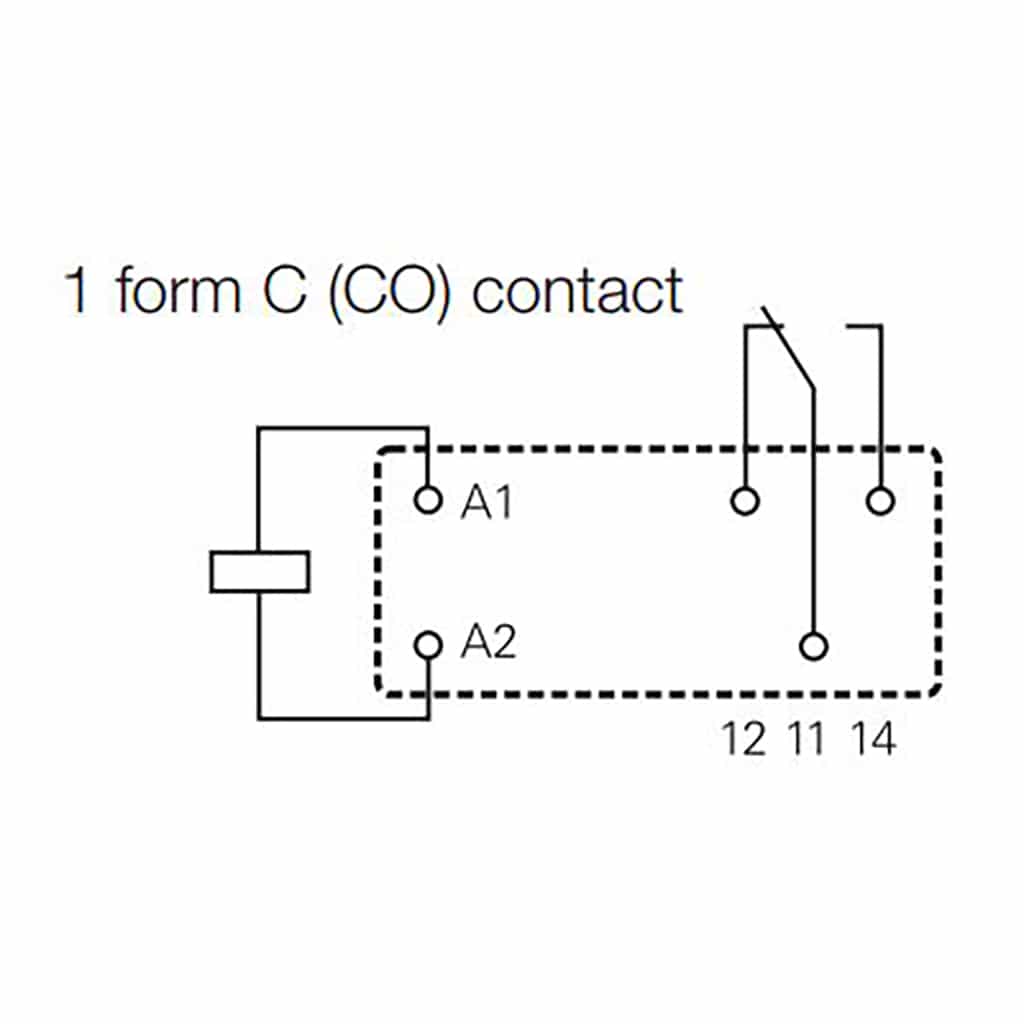

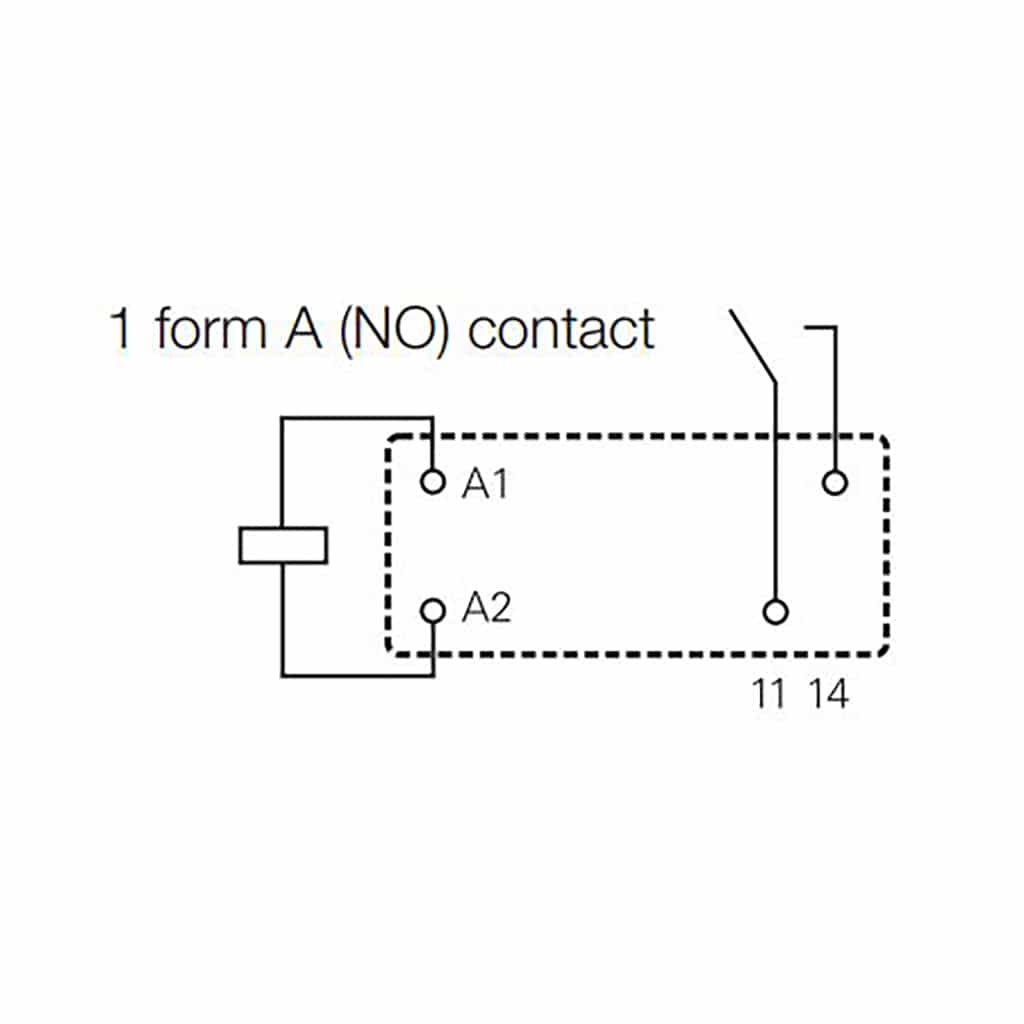

  • 1 pole 12/16 A, 1 form C (CO) or 1 form A (NO) contact
  • DC coil 400 mW
  • 5kV/10mm coil-contact, reinforced insulation
  • Ambient temperature 85°C
  • Product in accordance to IEC 60335-1
  • Reflow version for THR mounting process
