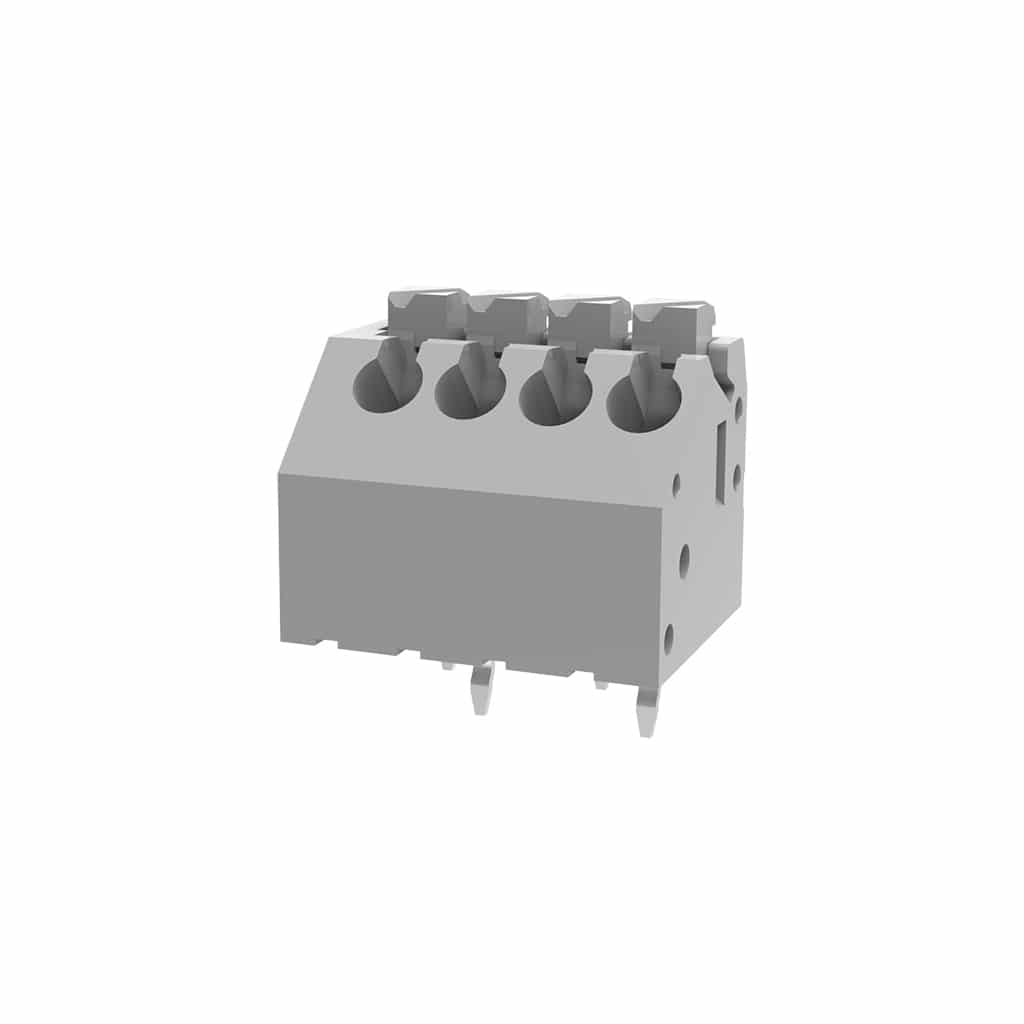

Spring Clamp , 3.5mm Pitch , 45Degree- DG250-3.5-xxP
Product specs
| Pitch | 3.5mm |
|---|---|
| Wire Orientation | 45° |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9 |
| Clamp Type | Spring Clamp |
| Height | 13.1mm |
Product Description
DG250-3.5 series is our most popular 45 degree spring clamp terminal block. With pushbutton release of the springs it makes for an easy connection.
Other colours or number of poles are available upon request. There are different pin configurations available but the range we have is the triangular style and on each block the right hand pin is at the front, next pin would be at the back etc
DG250-3.5 series is UL (E228872) , VDE (40006129) and CE approved.
V0 flammability rating.
- Pitch 3.5mm
- Spring Clamp
- 45 degree Wire Entry
- 13.1mm High – 12mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- UL File number E228872 – 16-22 Awg – 8A @ 300v
- VDE File 40006129 – 0.2-1.5mm2 – 10A @ 320v
- Colour Grey as standard
