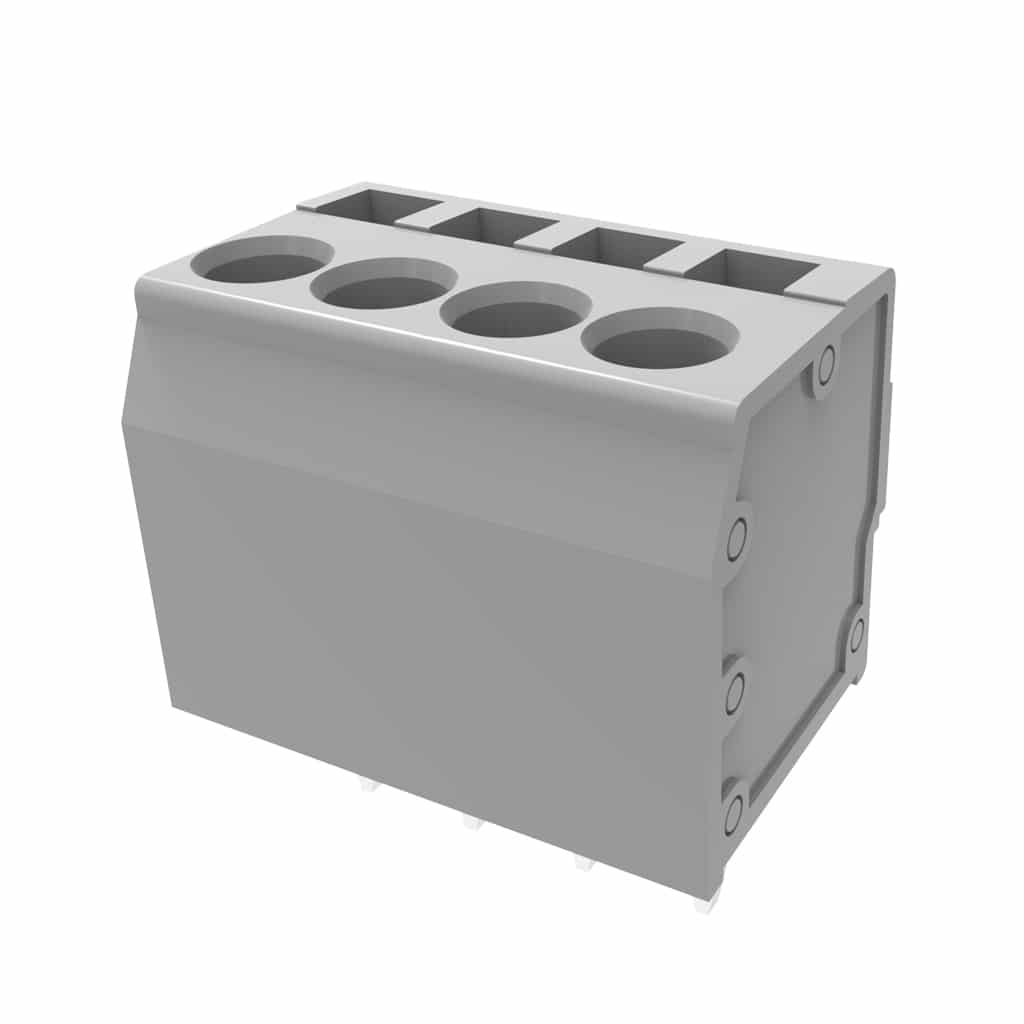

Spring Clamp , 5mm Pitch , DG204-5.0-xxP-1100AH
Product specs
| Pitch | 5mm |
|---|---|
| Wire Orientation | Vertical |
| Poles | 2, 3, 4, 6, 8, 9, 10, 12 |
| Clamp Type | Spring Clamp |
| Height | 16.1mm |
Product Description
DG204 series is a new introduction to Degsons range. With both clamp release and wire insertion from the top it makes it ideal for those places hard to reach.
Other colours or pin configuration available upon request.
DG204 series is VDE (40041399) and CE approved and with the highest V0 flammability rating.
- Pitch 5.0mm
- Spring Clamp
- Vertical Wire Entry
- 16.1mm High – 14.3mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- VDE File 40041399 – 0.2-2.5mm2 – 20A @ 320v
- Colour Grey as standard
