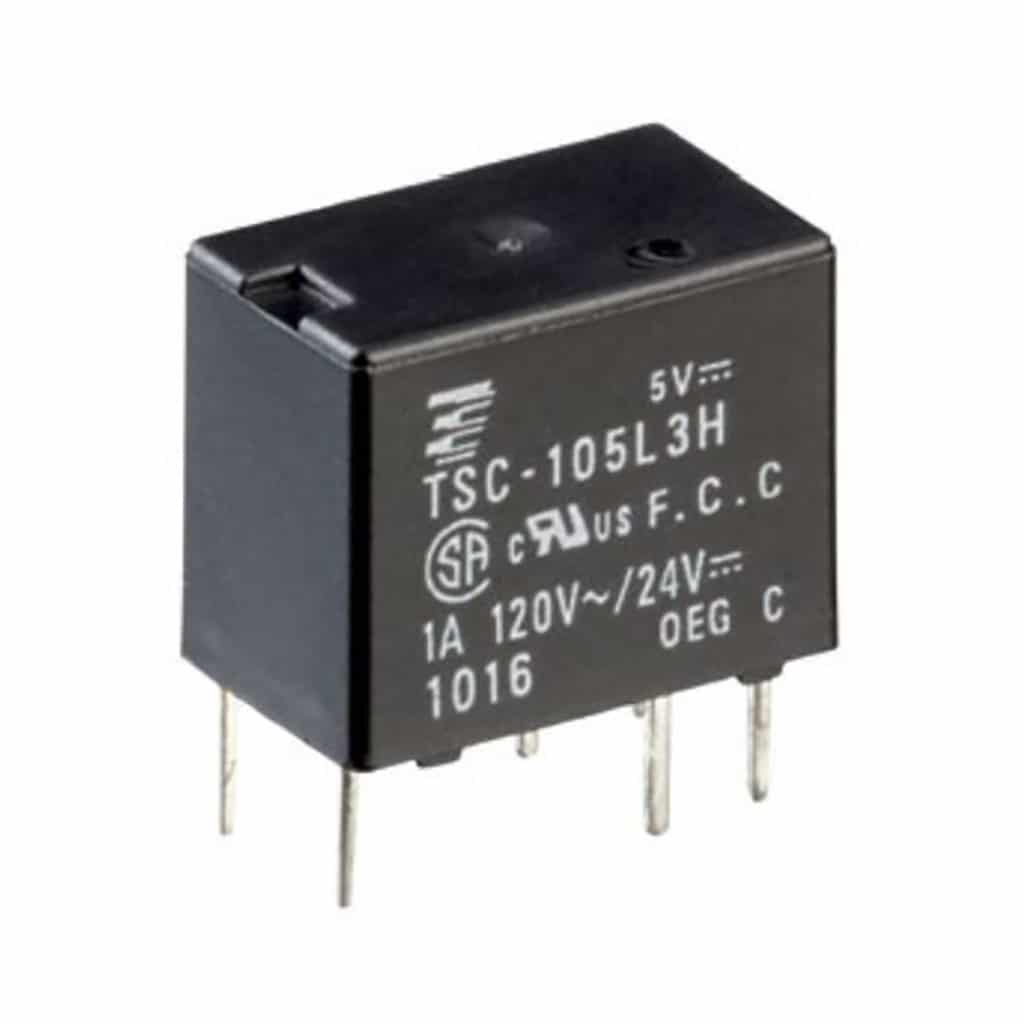

TSC – 1a Miniature Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vdc |

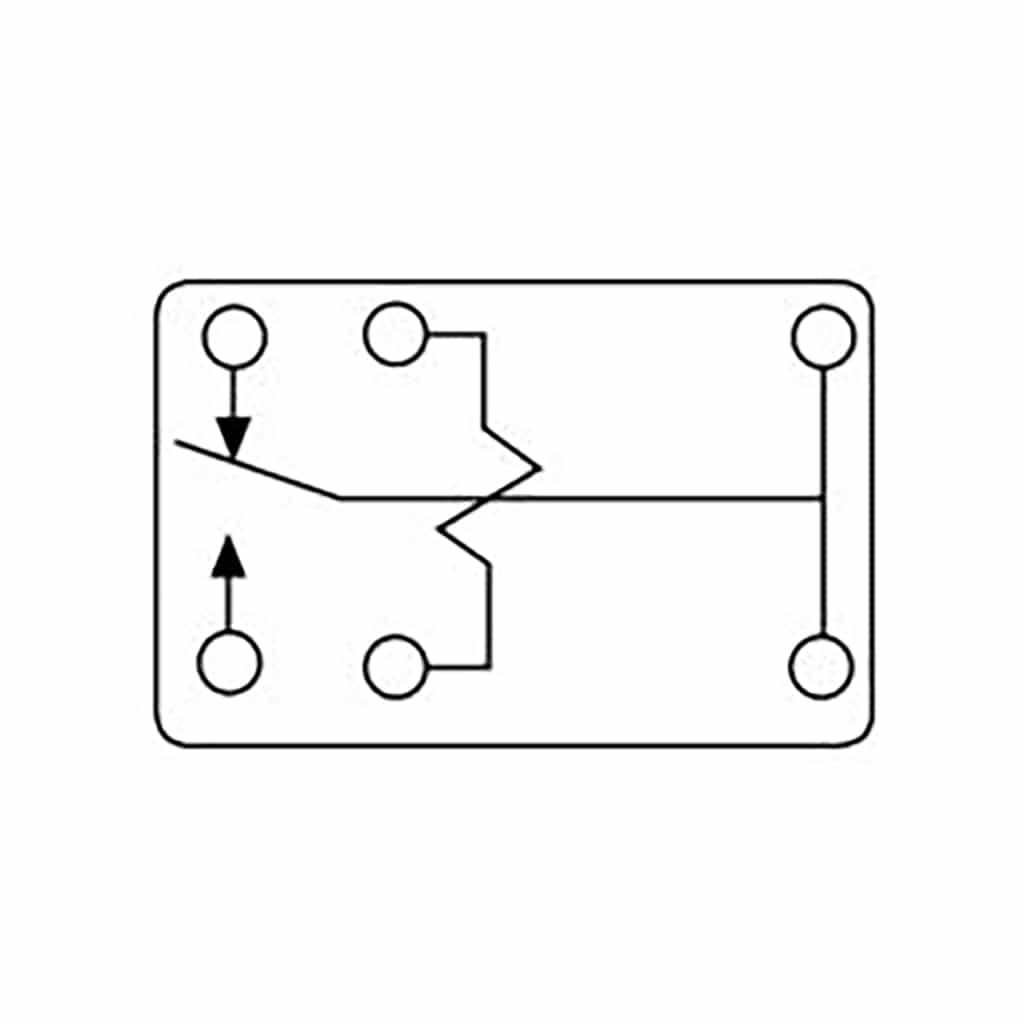

| Contact Arrangement | SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 1A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | AgNi |
| Coil Resistance (Ohm) | 120Ω, 166Ω, 1920Ω, 240Ω, 270Ω, 3840Ω, 480Ω, 540Ω, 83Ω, 960Ω |
| Mounting | PCB |
| Type | Signal Relay |
Product Description
TSC is a very compact relay available with 300mw coils and a high sensitivity coil at 150mw. Available in change over contact.
Available from 5v upto 24vdc.
- 1pole, 1A, 1 form C (CO)
- 2.54mm terminal pitch same as I.C. socket terminal pitch
- Available in 150mw & 300mw coils
