USB B Female – DS1099 – Series
Product specs
| Orientation | Right Angle |
|---|---|
| Type | USB B |
Product Description

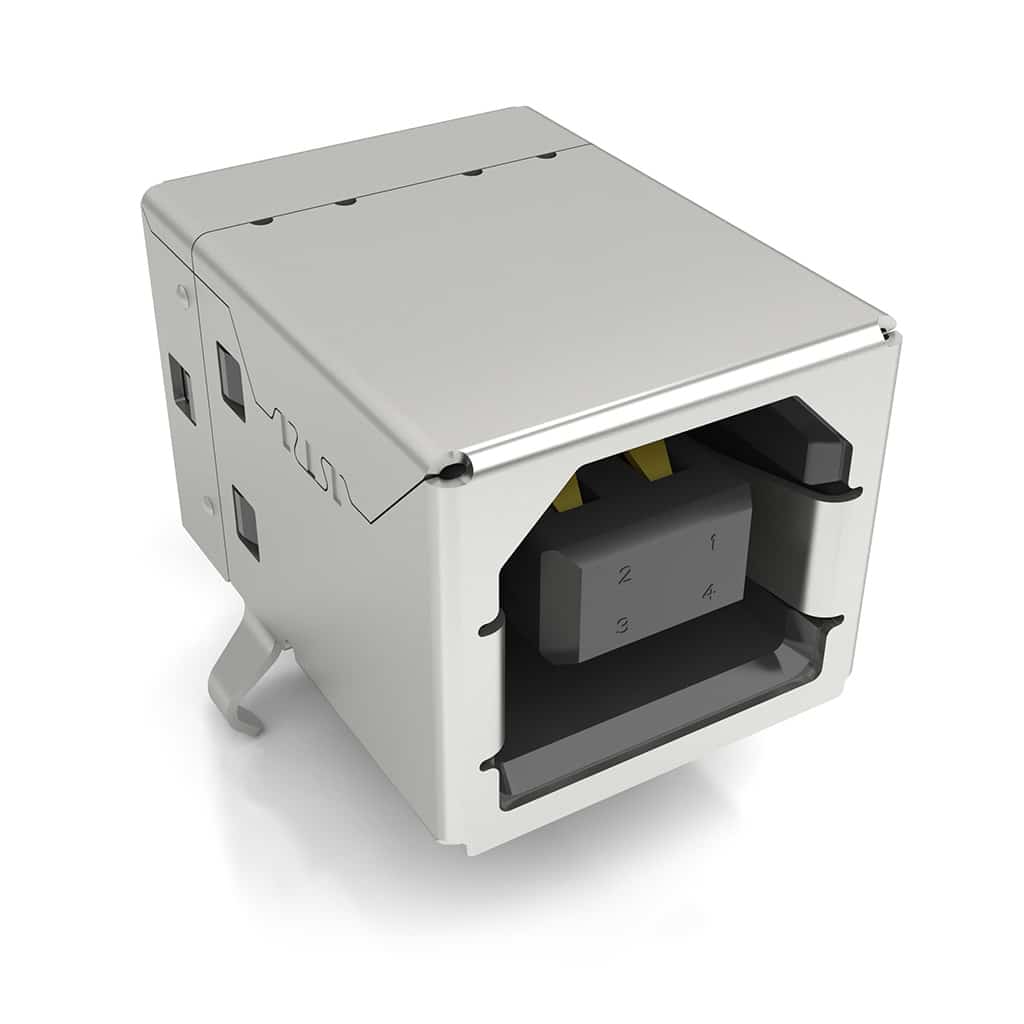

The DS1099 is a female USB B socket from Connfly. The quality gold plated Right Angled socket has a Copper Alloy shell with snap in PCB solder tails and Copper Alloy Gold Plated contacts.
- USB B Female
- Contact – Copper Alloy/ Gold Plated
- Housing – PBT / Glass Fibre (UL 94V-0)
- Shell – Copper Alloy / Nickel Plate
- Temperature Range -25C + 85C
- Contact Resistance – 30mΩ max
- Insulation Resistance – 1000MΩ min
- Current Rating – 1.5A
