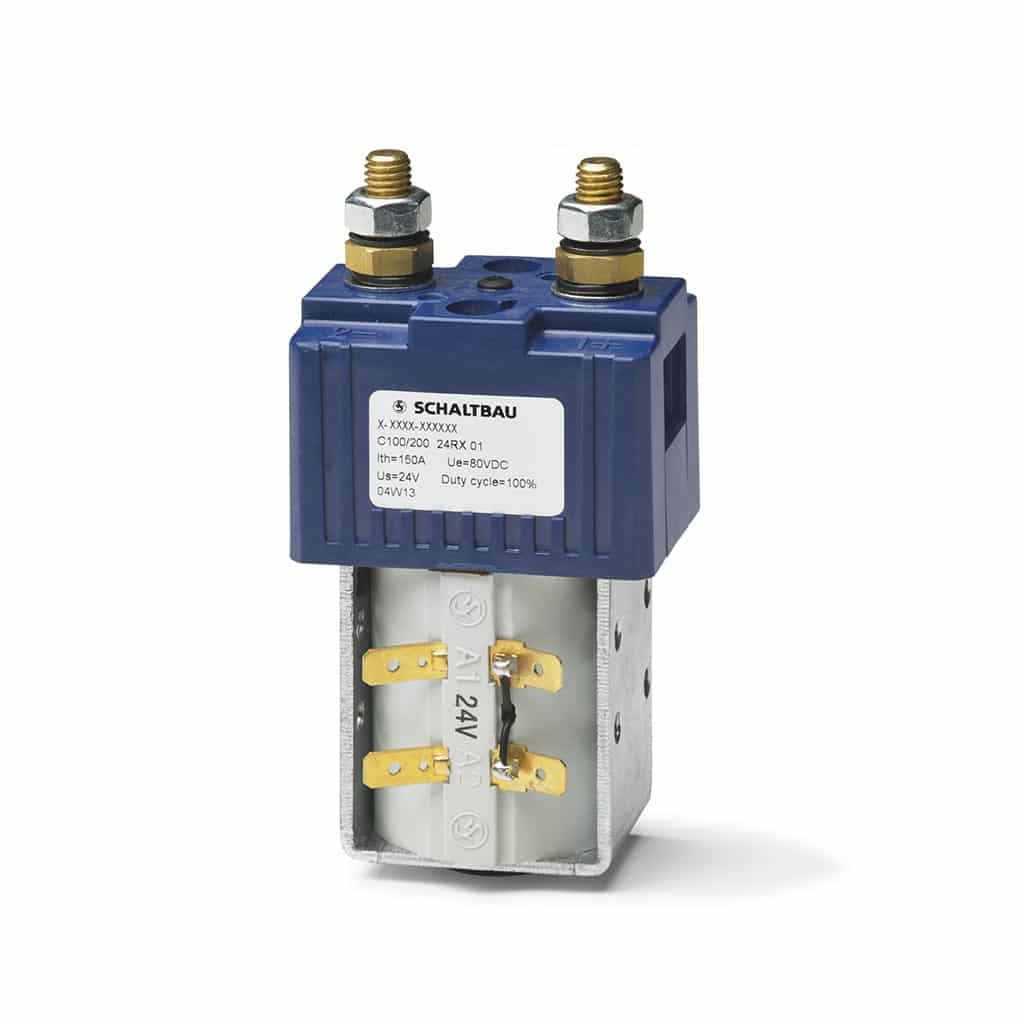

DC Contactor – C100 series

SKU: C310-1 Categories: , Manufacturer:

Product Description

The C100 DC contactor series from Schaltbau is designed with a magnetic blowout mechanism. It can switch battery voltages of up to 80 volts unidirectionally. The single-pole NO contactor is available in four sizes: for continuous currents of up to 60, 100, 150 & 250A.
The cost-effective C100 works as a main or auxiliary contactor in industrial trucks and other electric vehicles. It complies with the standard for battery power-operated industrial trucks (EN1175-1).

  • Type of voltage – DC
  • Contact configuration – 1 NO
  • Nominal voltage Un – 80V
  • Rated insulation voltage Ui – 150V
  • Rated impulse withstand voltage Uimp – 2.5 kV
  • Conv. thermal current Ith  –  60A
  • Making capacity, resistive, T = 1 ms – 300A
  • Breaking capacity, T < 1 ms – 80A @250V
  • Contact material main contacts – AgSnO2
  • Aux Contact – 1 x SPDT (optional)
  • Coil voltage Us – 24, 48VDC
  • Temperature range    -25 °C  ~ +40 °C
