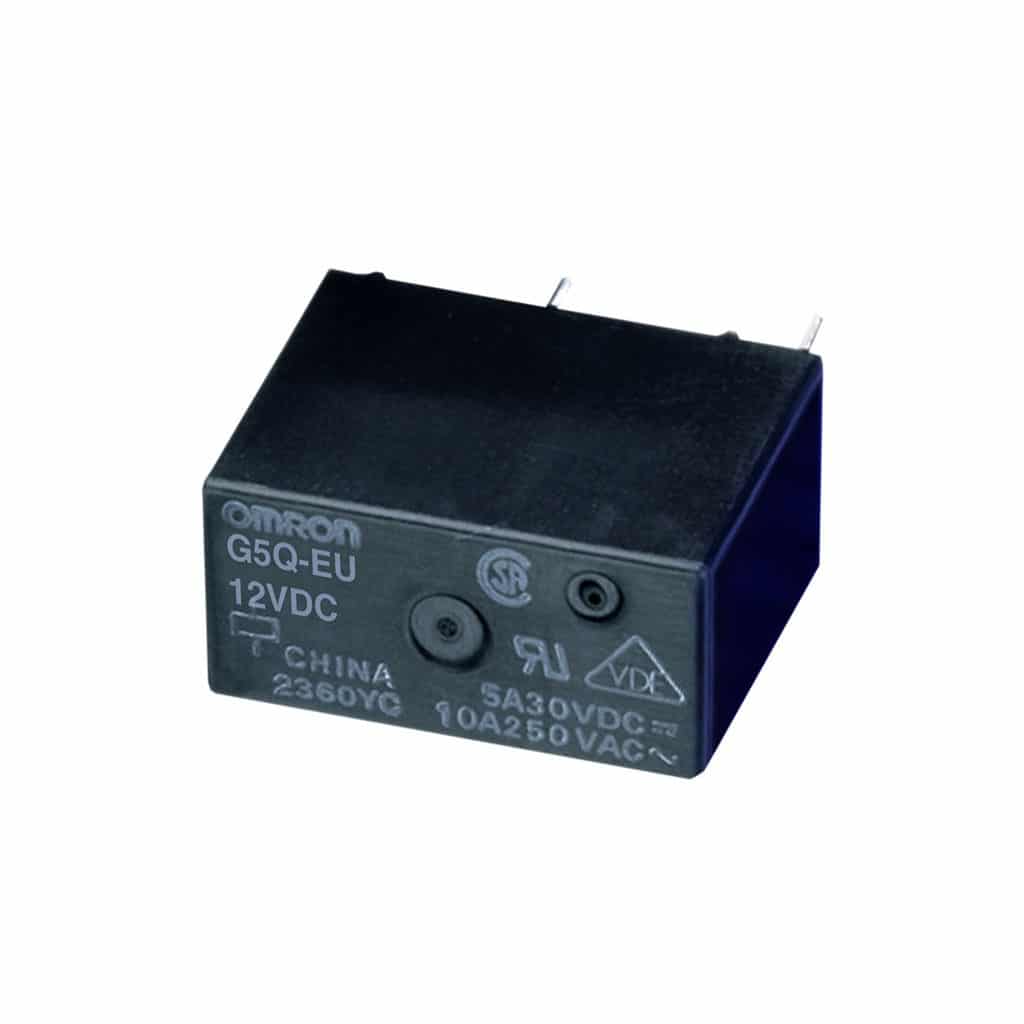

G5Q – 10a Power Relay
Product specs
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Coil Voltage | 5Vdc, 9Vdc, 12Vdc, 24Vdc |
| Contact Arrangement | SPST (1NO)- 1 Form A, SPDT (1CO) – 1 Form C |
| Coil Type | Non Latching |
| Contact Rating (Amps) | 5A, 10A |
| Sealing | Flux Proof, Fully Sealed |
| Contact Material | Ag Alloy |
| Coil Resistance (Ohm) | 63Ω, 125Ω, 202Ω, 360Ω, 1440Ω, 405Ω, 720Ω, 2880Ω |
| Mounting | PCB |
| Type | Power Relay |
Product Description
The Omron G5Q relay is a compact single pole 10a relay. Available between 5 and 24vdc and with Class F coil insulation as standard.
- Compact single pole relay.
- Excellent switching performance for a variety of loads.
- Small, yet provide 8-kV impulse withstand voltage (between coil
and contacts). - Low coil power consumption (SPST-NO: 200 mW, SPDT: 400 mW)
- Coil insulation system: Class F (UL1446).
- IEC/EN 60335-1 conformed. (-HA Model)
