IDC Cable Socket 2.54mm – DS1016 Series
Product specs
| Pitch | 2.54mm |
|---|---|
| Number of Pins | 10, 14, 16, 20, 24, 26, 34, 40, 50 |
| Number of Rows | 2 |
| Tray | 40, 50, 60, 80, 100, 132, 144, 192 |
Product Description

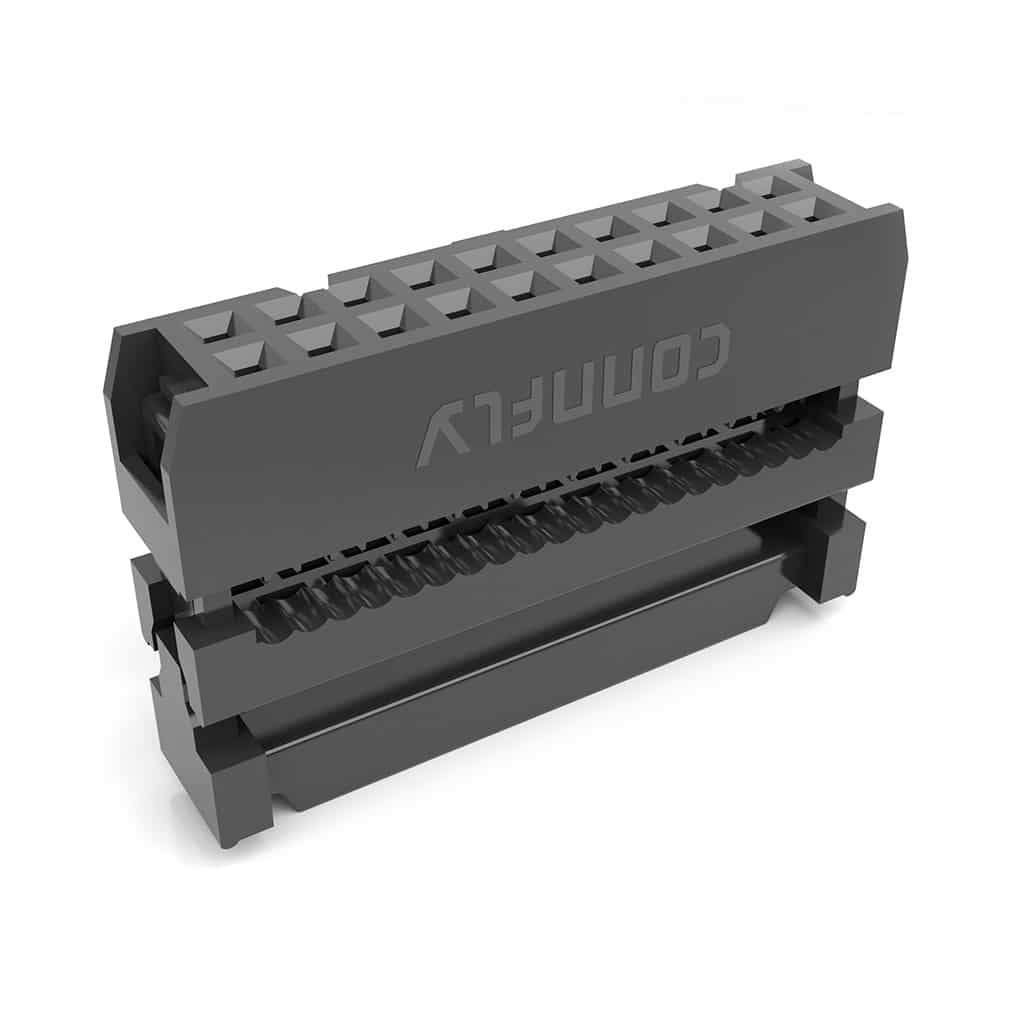

The DS1016 female socket from Connfly is a dual row IDC socket with strain relief. Polarised for the latching or box headers. Available in 10, 14, 16, 20, 24, 26, 34, 40 and 50 way. The thermoplastic housing is UL 94V-0 rated. For use with our DS1057 Ribbon cable.
- IDC Pitch – 2.54mm
- Contact/Plating – Copper Alloy / Full Gold Flash
- Insulator – Thermoplastic (UL 94V-0)
- Temperature Range – -40C + 105C
- Contact Resistance – 20mΩ max
- Insulation Resistance – 1000mΩ max
- Dielectric Withstand Voltage – AC 500V 1 Minute
