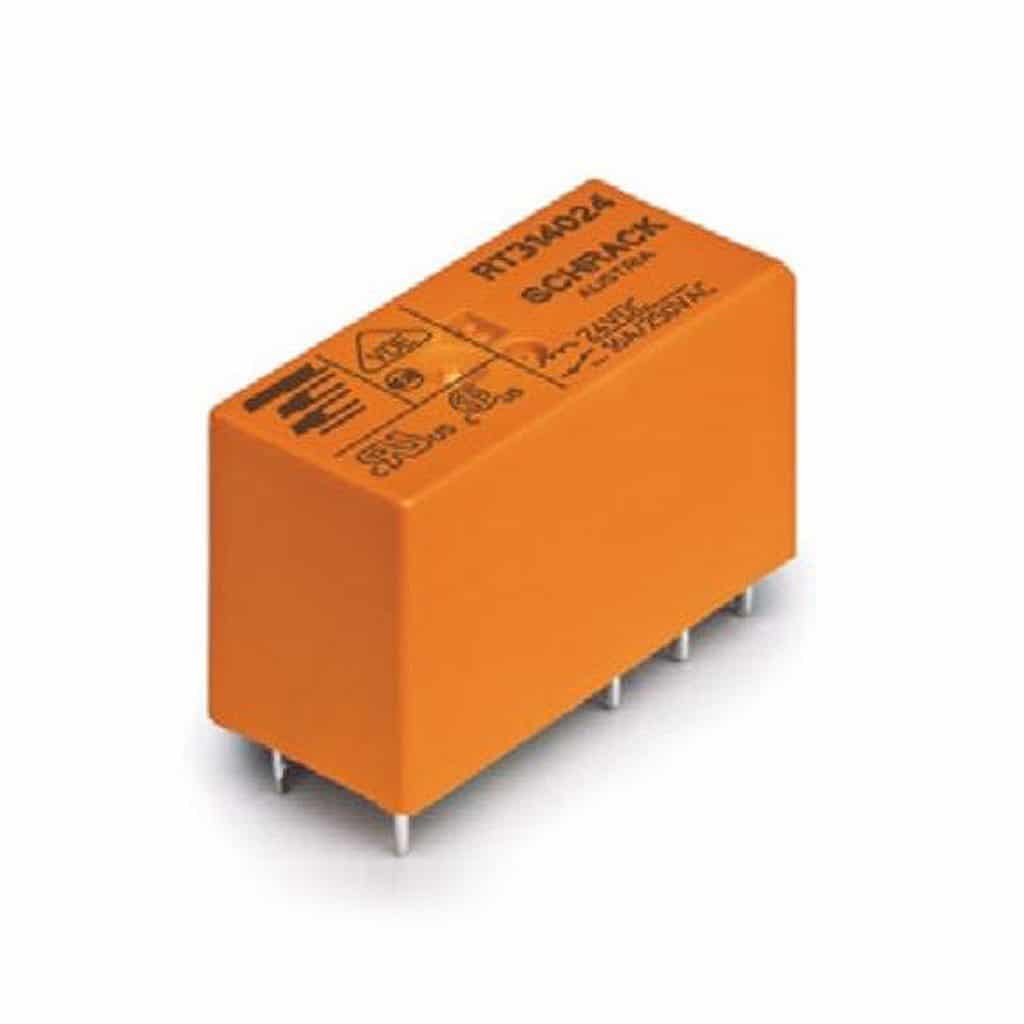

RT2 - Double Pole 8a DC & AC Power Relay
RT2 - Double Pole 8a DC & AC Power Relay - Image 2
RT2 - Double Pole 8a DC & AC Power Relay - Image 3

RT2 – Double Pole 8a DC & AC Power Relay

SKU: RT2 Category: Manufacturer:
Download PDF

Product specs

Weight N/A
Dimensions N/A
Coil Voltage

5Vdc, 6Vdc, 9Vdc, 12Vdc, 24Vac, 24Vdc, 48Vdc, 60Vdc, 110Vdc, 48Vac, 115Vac, 120Vac, 200Vac, 230Vac
Contact Arrangement

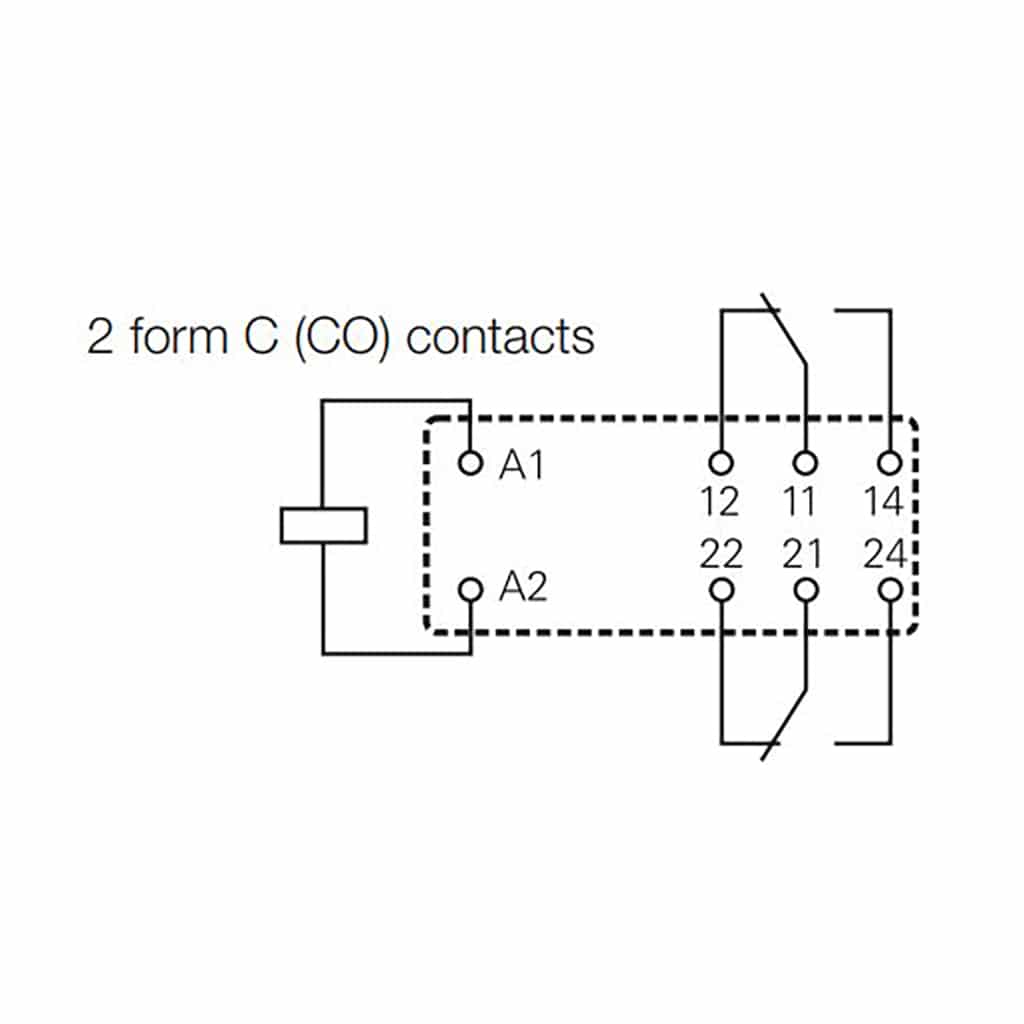

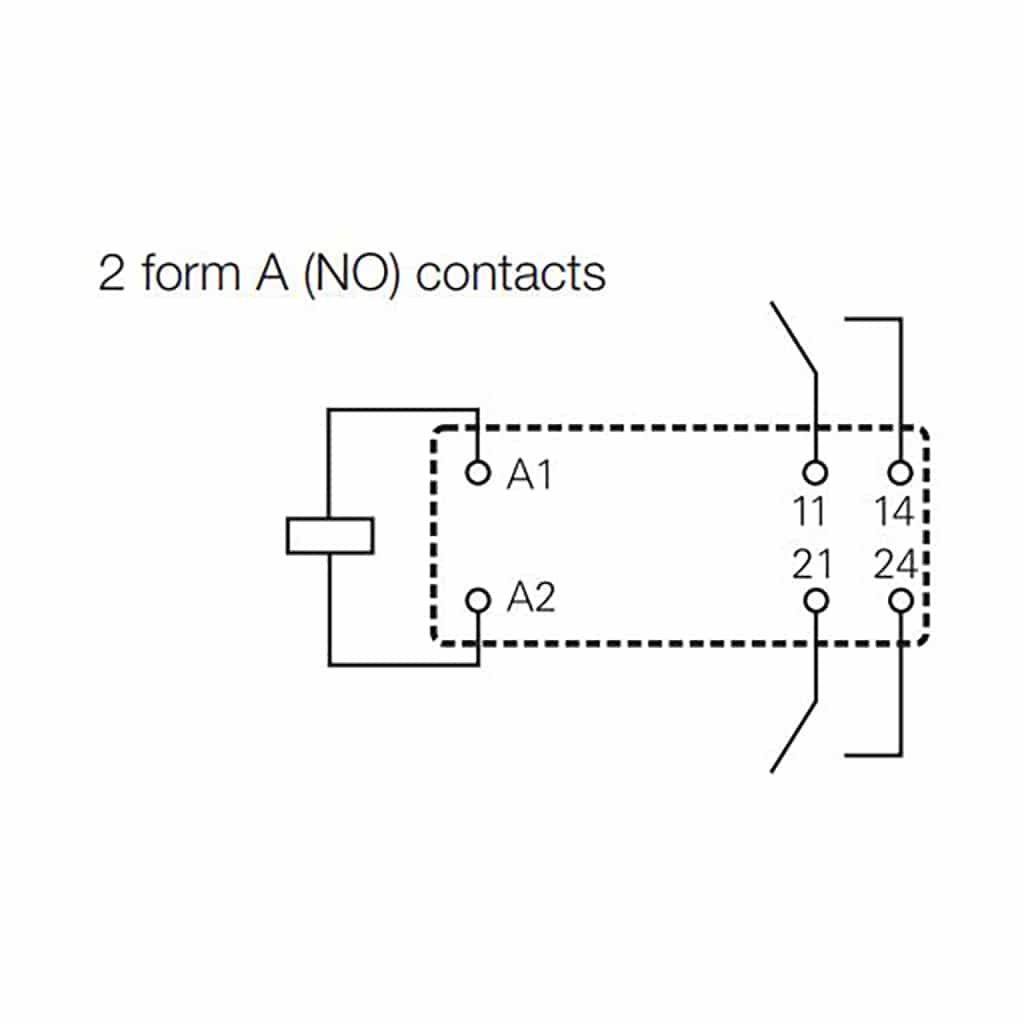

DPST (2NO) -2 Form A, DPDT (2CO) -2 Form C
Coil Type

Non Latching
Contact Rating (Amps)

8A
Sealing

Flux Proof, Fully Sealed
Contact Material

AgNi 90/10, AgNi 90/10+Au Plated, AgSnO
Coil Resistance (Ohm)

200Ω, 24350Ω, 28800Ω, 5520Ω, 8570Ω, 8800Ω, 62Ω, 90Ω, 350Ω, 360Ω, 1440Ω, 8100Ω, 32500Ω
Mounting

PCB
Type

Power Relay

Product Description

Easby Electronics offer many variants of the popular RT relays from TE. This RT2 series is a double pole relay in DC and AC variants.

Single pole variants available under RT1 series.

  • 2 pole 8A, 2 form C (CO) or 2 form A (NO) contacts
  • DC or AC coil
  • 5kV/10mm coil-contact, reinforced insulation
  • Ambient temperature up to 85°C
  • WG version: product in accordance to IEC60335-1
  • Reflow version: for THR (Through-Hole Reflow) soldering process
