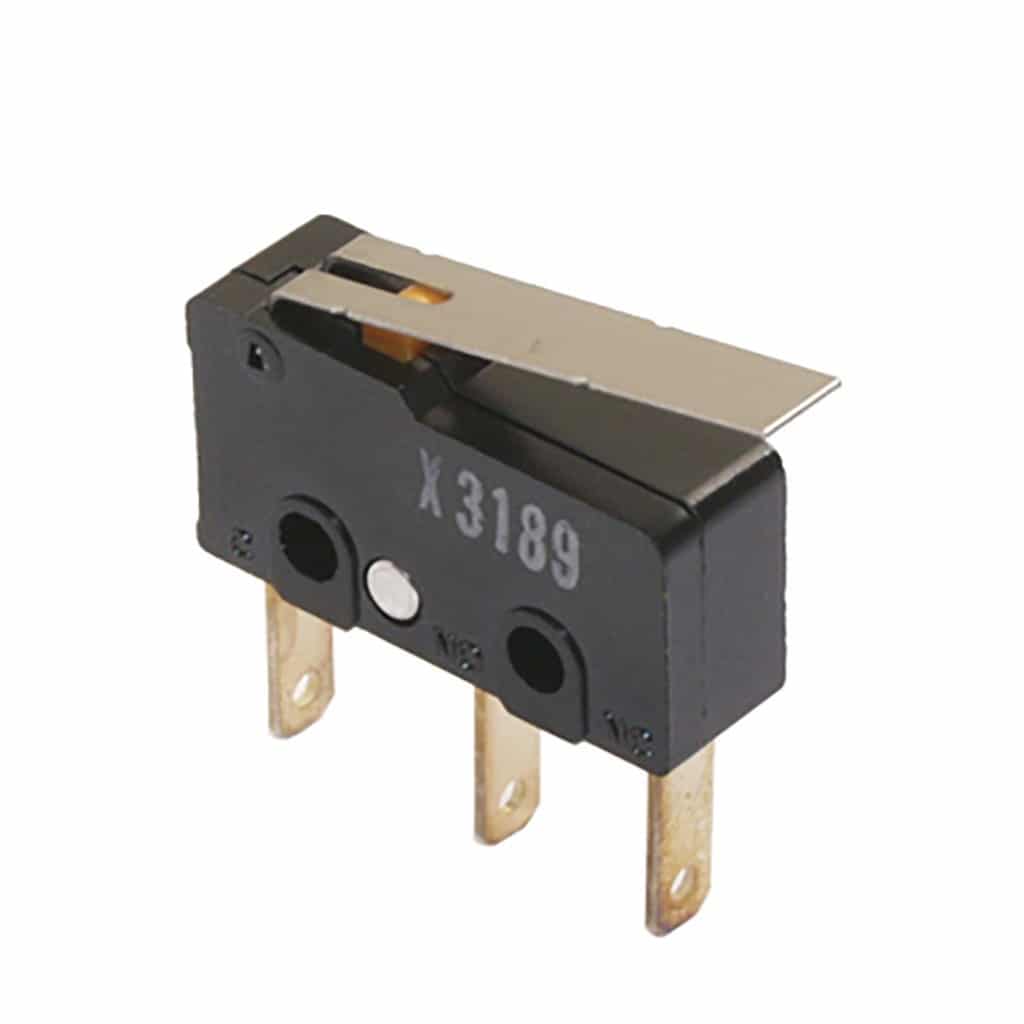

Subminature Microswitch – SS-5 Series
Product specs
| Operating Force | 150gf |
|---|---|
| Actuator | Hinge Lever, Lever, Pin Plunger |
Product Description
The SS series are subminiature basic switches from Omron. These switches offer high reliability and security. A variety of models are available with operating force ranging from low to high. Switching capacity of 10.1A at 250VAC, 5A at 125VAC, 0.1A at 30VDC and Pin plunger, hinge, long hinge, simulated roller , hinge roller lever actuators available. UL and CSA approved models. Please contact our sales for further information.
- IEC IP40
- Contact Resistance 100mΩ Max.
- Insulation Resistance 100 MΩ min. @500 VDC
- Operating life 10,000,000 ⁓ 30,000,000 mechanical operations.
- Temperature range -25°C to +85°C (at ambient humidity of 60% max.)
