Plug & Pin-Strip-5.0mm Pitch , DG332K-5.0 & DG332J-5.0
Product specs
| Pitch | 5mm |
|---|---|
| Height | 10.8mm |
| Poles | 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 24 |
| Colour | Black |
Product Description

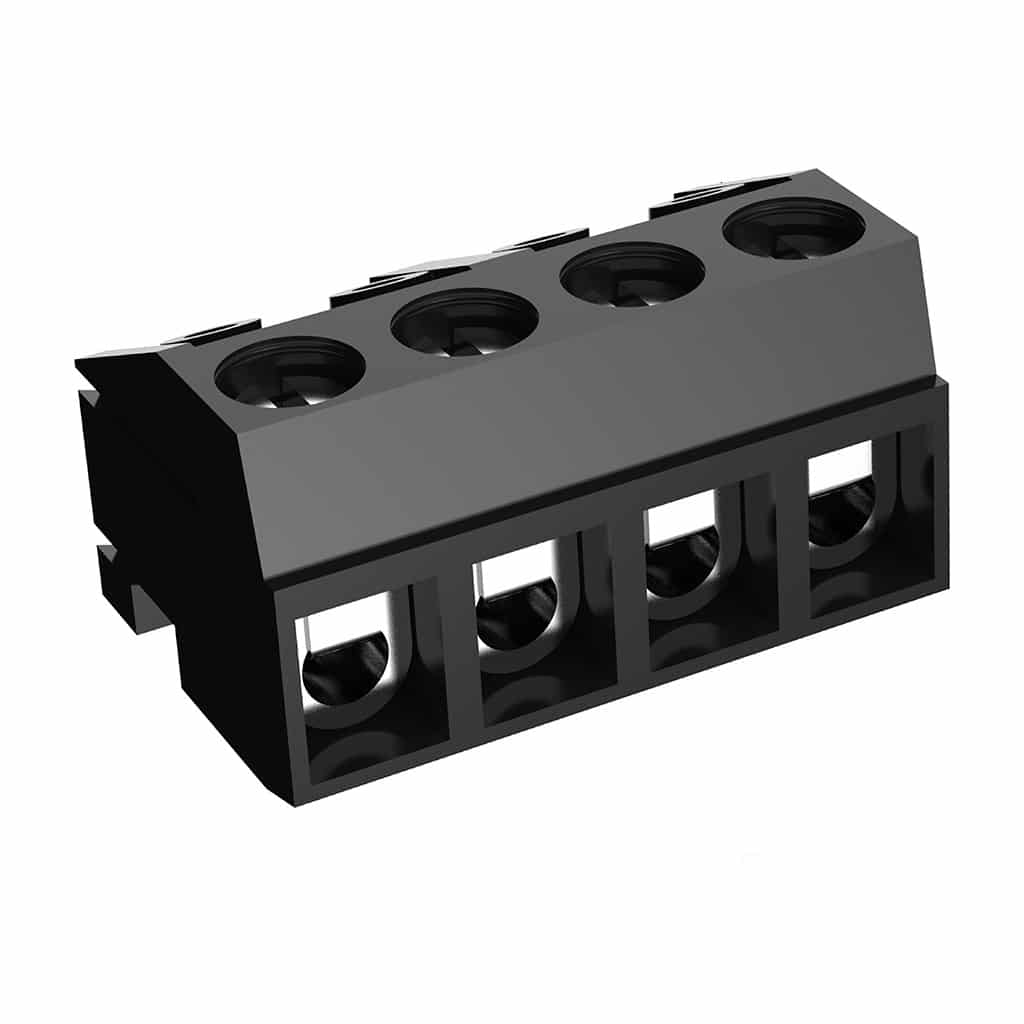

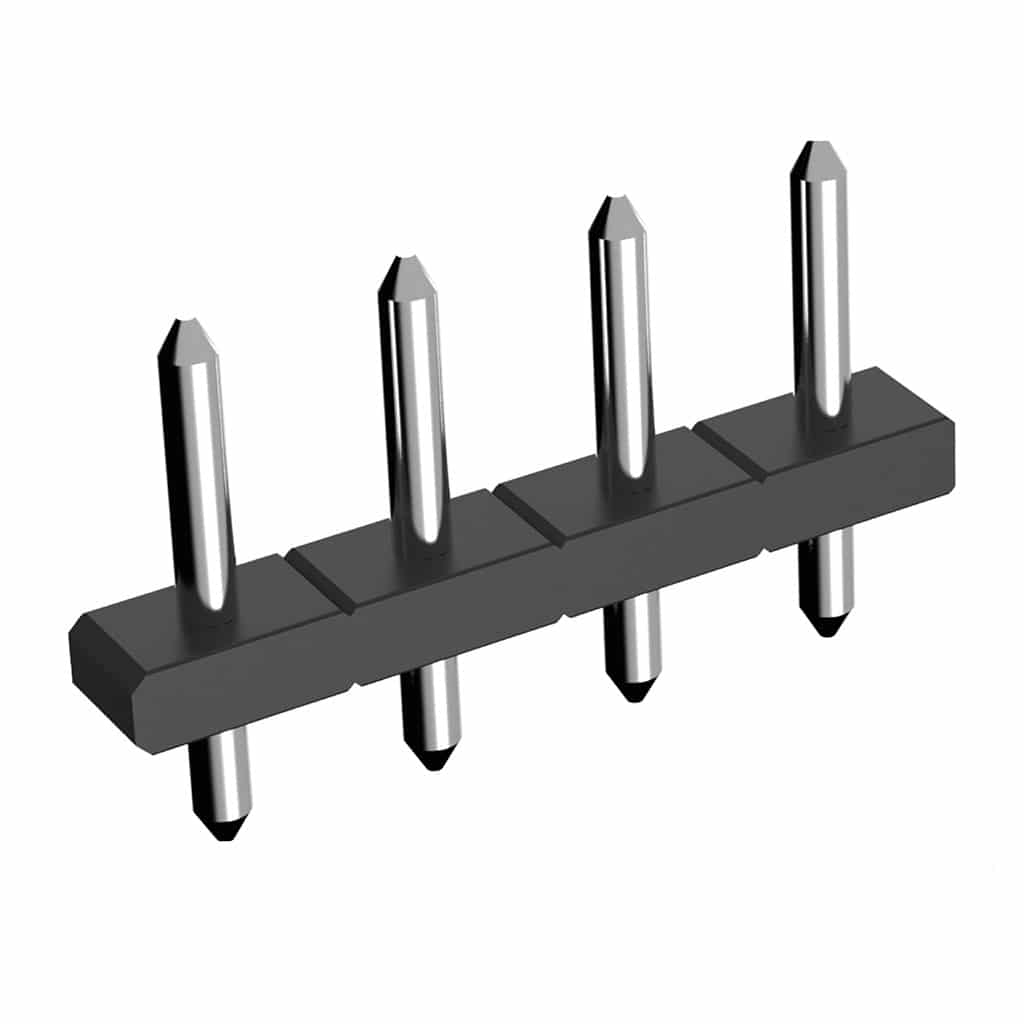

DG332K-5.0 is a 5.0mm Plug from Degson that is compatible with a Pin-Strip, it is a very competitive Plug & Socket combination. The plugs are interlocking so can be made up with any number of ways and the Pin-Strip comes in a 24 way as standard but are easily snap-able down to any number of ways.
DG332k-5.0 series is UL (E228872) approved.
- Pitch 5.0mm
- Plug & Pin-Strip
- 10.8mm High – 13.4mm Depth
- Ambient Temperature – -40 + 105C
- Housing – PA66
- Screw M2.5 – Combi
- UL file number E228872 – 16-28awg – 10A @ 300v
- Interlocking Plugs
- 24 Way Snap-able Pin-Strip
